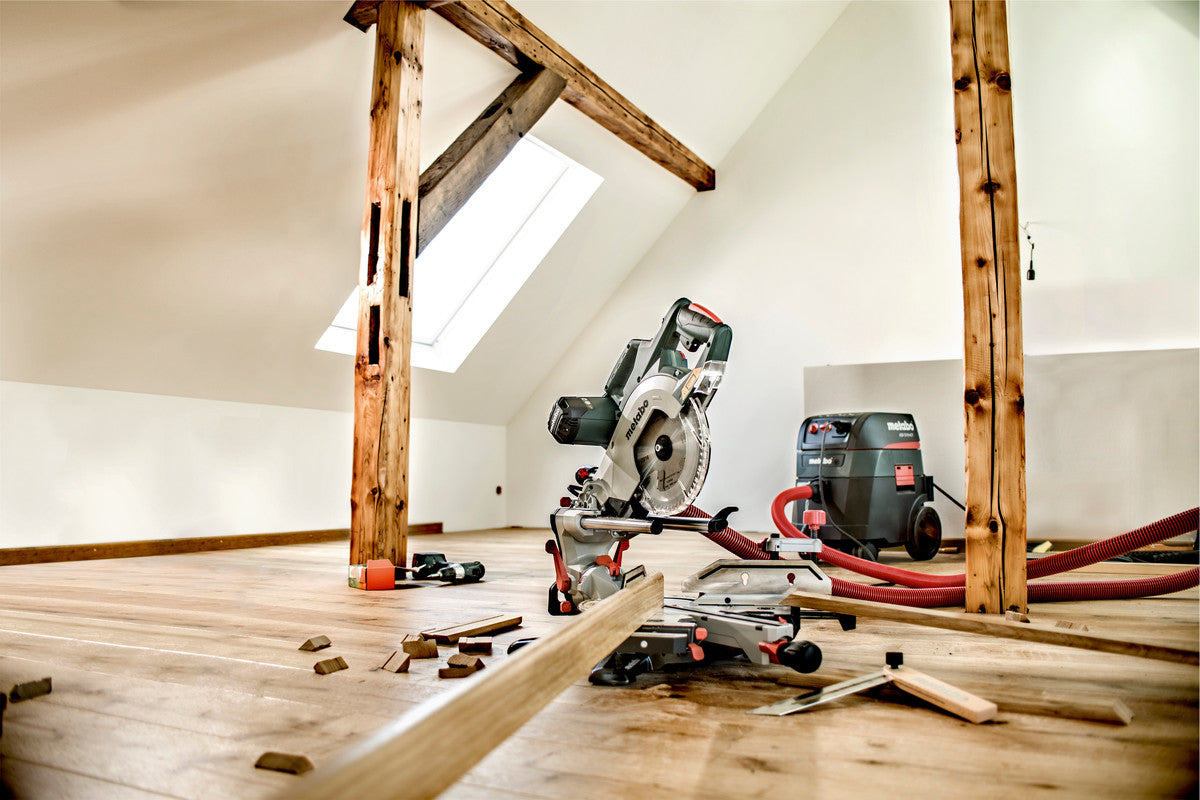

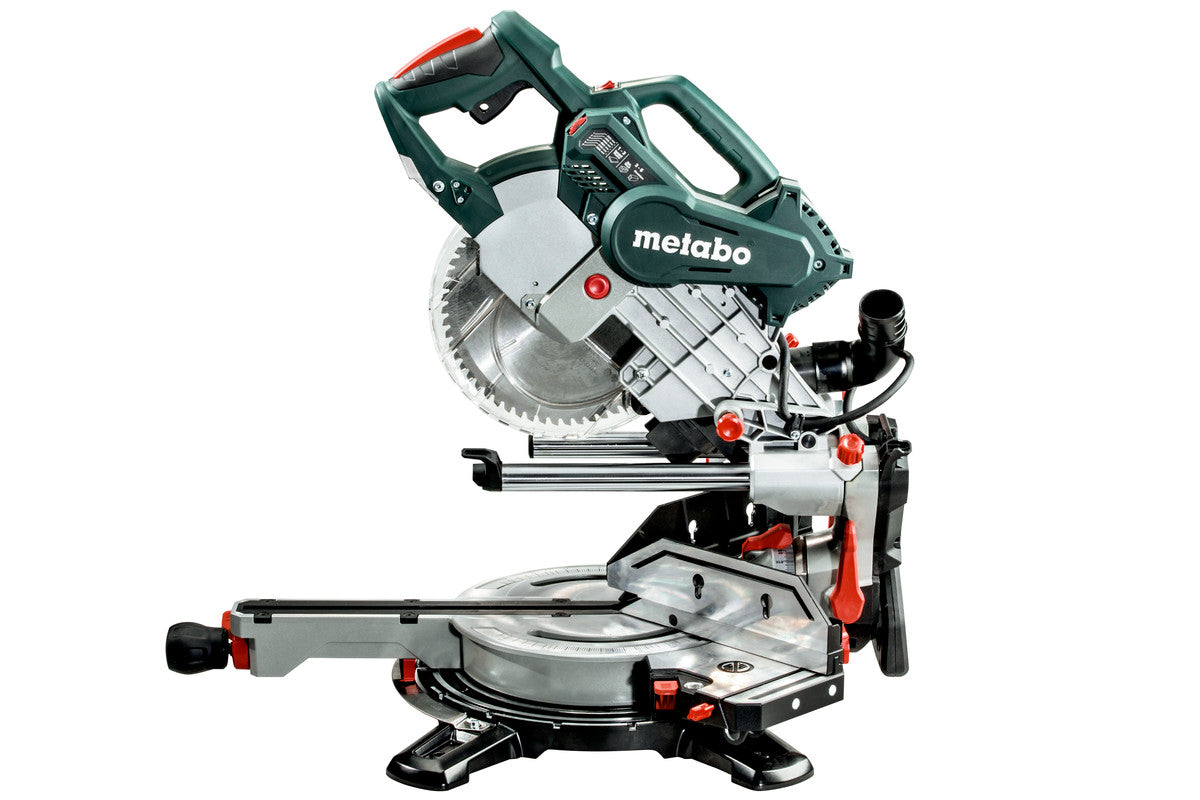

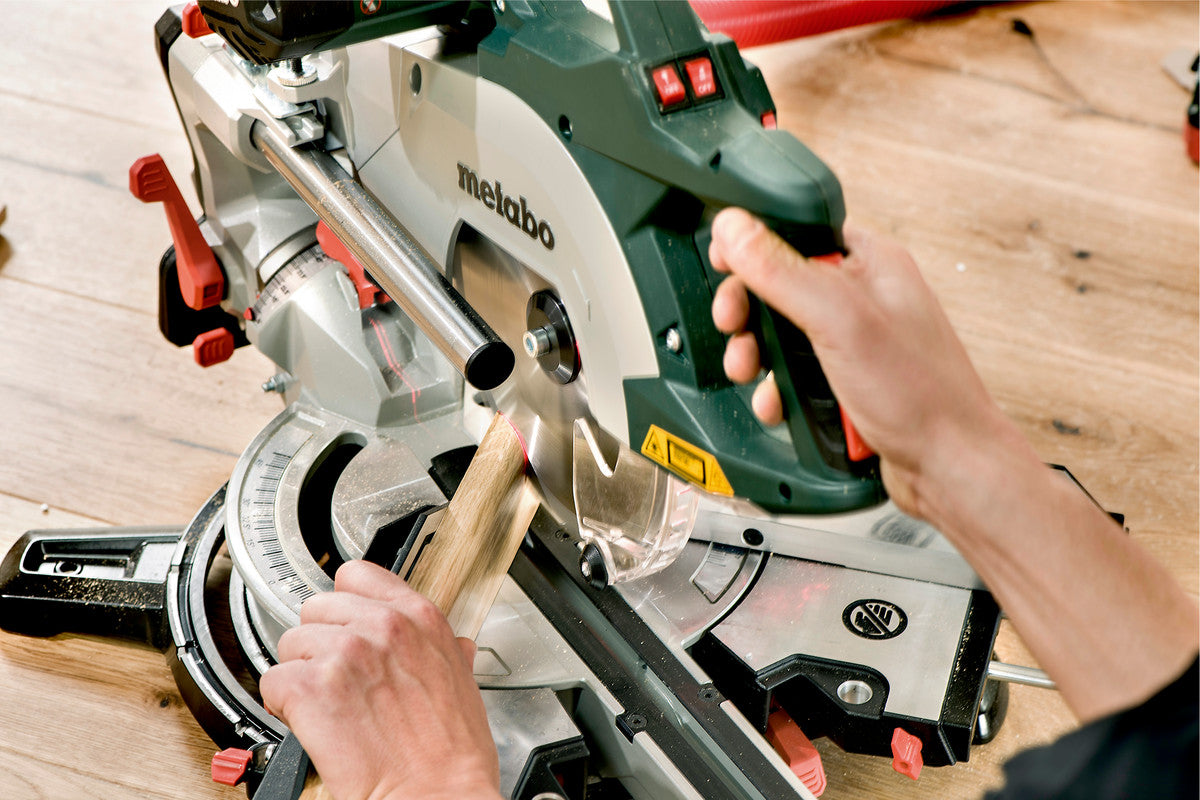

KGSV 72 Xact SYM (612216000) Mitre saw

• Unique, patented combination of panel saw with sliding function and precise skirting saw with symmetrically adjustable stop system
• Time-saving and accurate sawing of mitres without calculating and measuring thanks to simple angle transfer from bevel to stop system
• Compactly designed sliding function with no space required behind the saw
• Maximum flexibility when sawing thanks to rotating table and inclinable saw head on both sides
• Double line laser for precise display of the cutting line left and right of the saw blade
• Variable speed for an extended range of applications, e.g. for sawing aluminum profiles and plastics
• With saw blade "multi cut" (flat/trapezoidal tooth) for high cutting quality and long service life e.g. in laminate and aluminium profiles

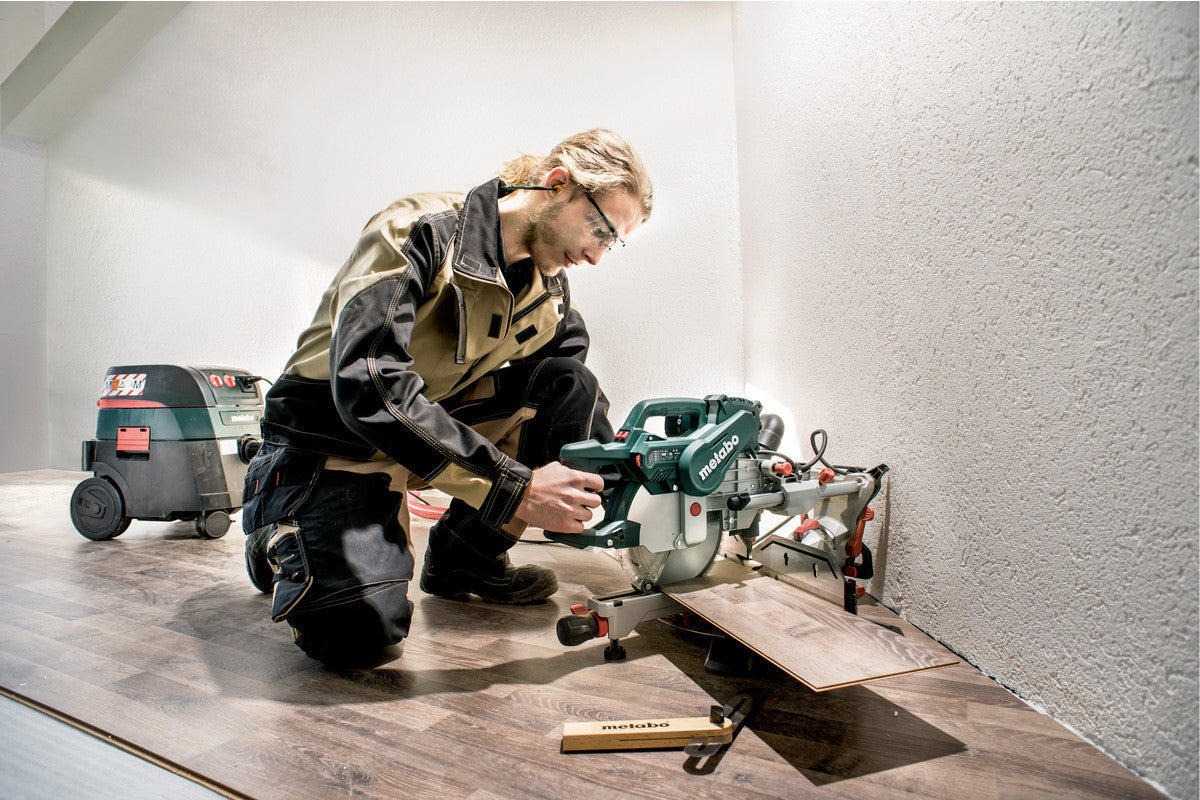

• Compact light-weight with ergonomically designed carry handles, ideal for mobile use
• Effective dust extraction via integrated dust scoop
• Fast and precise setting of common angles using stop points
• Bright LED work light for illumination of the cutting line (mains powered, no batteries required)
• Sliding high rear fence profiles for safe sawing
• Depth guide for easy creation of grooves
• Easy saw blade change by means of spindle lock: No dismantling of the pendulum guard required

Technical Data

Characteristics

• Dimensions: 660 x 540 x 415 mm
• Maximum cutting width 90°/45°: 305 / 215 mm
• Maximum cutting depth at 90°/45°: 72 / 42 mm
• Cutting capacity 90°/90°: 305 x 72 mm
• Cutting capacity 45°/45°: 215 x 42 mm
• Turntable setting left/right: 50 / 50 °
• Saw blade tilt left/right: 47 / 47 °
• Saw blade: 216 mm
• Rated input power S1 100%: 1500 W
• Rated input power S6 20%: 1800 W
• No-load speed: 2200 - 6300 rpm
• Cutting speed: 25 - 70 m/s
• Weight: 18.3 kg
• Cable length: 3 m

Noise emission

• Sound pressure level: 84 dB(A)
• Sound power level (LwA): 97 dB(A)
• Uncertainty of measurement K: 3 dB(A)

Scope of Delivery

• Carbide saw blade (60 teeth)
• 2 Table length extensions
• Angle bevel
• Material clamp
• Tool for saw blade change
• Cable winder
