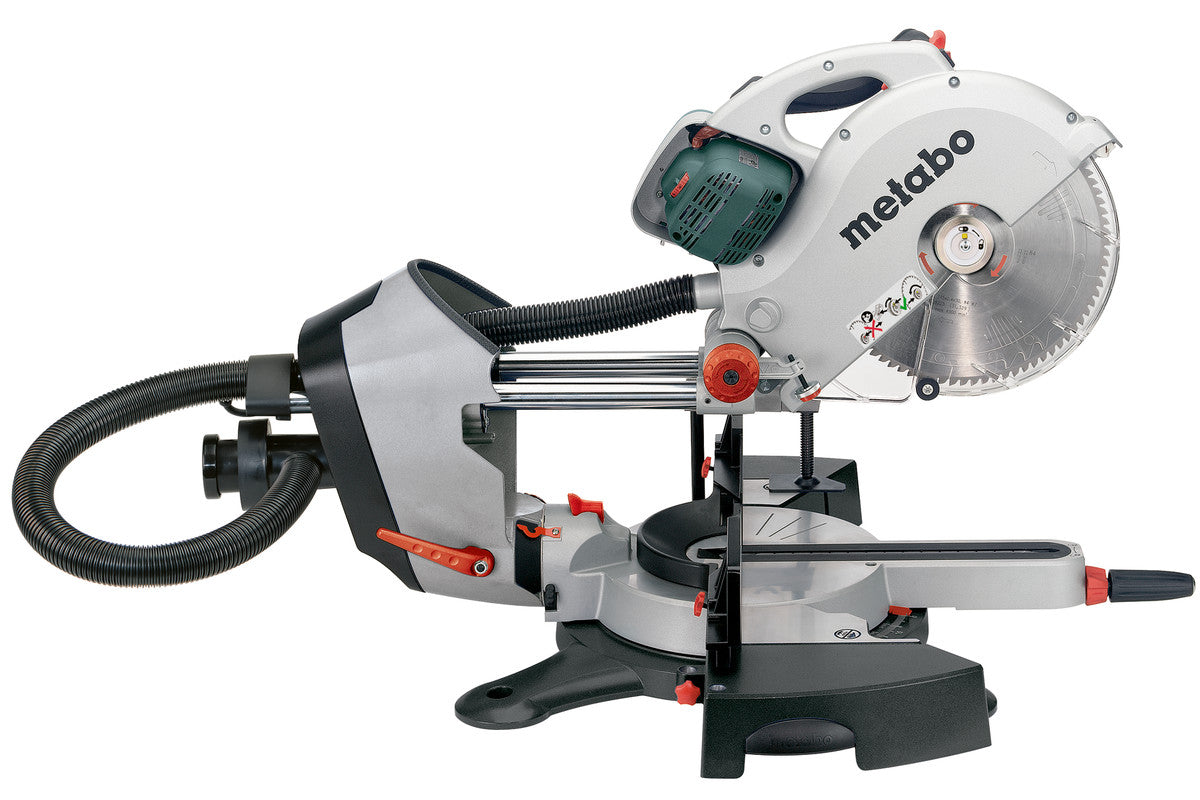

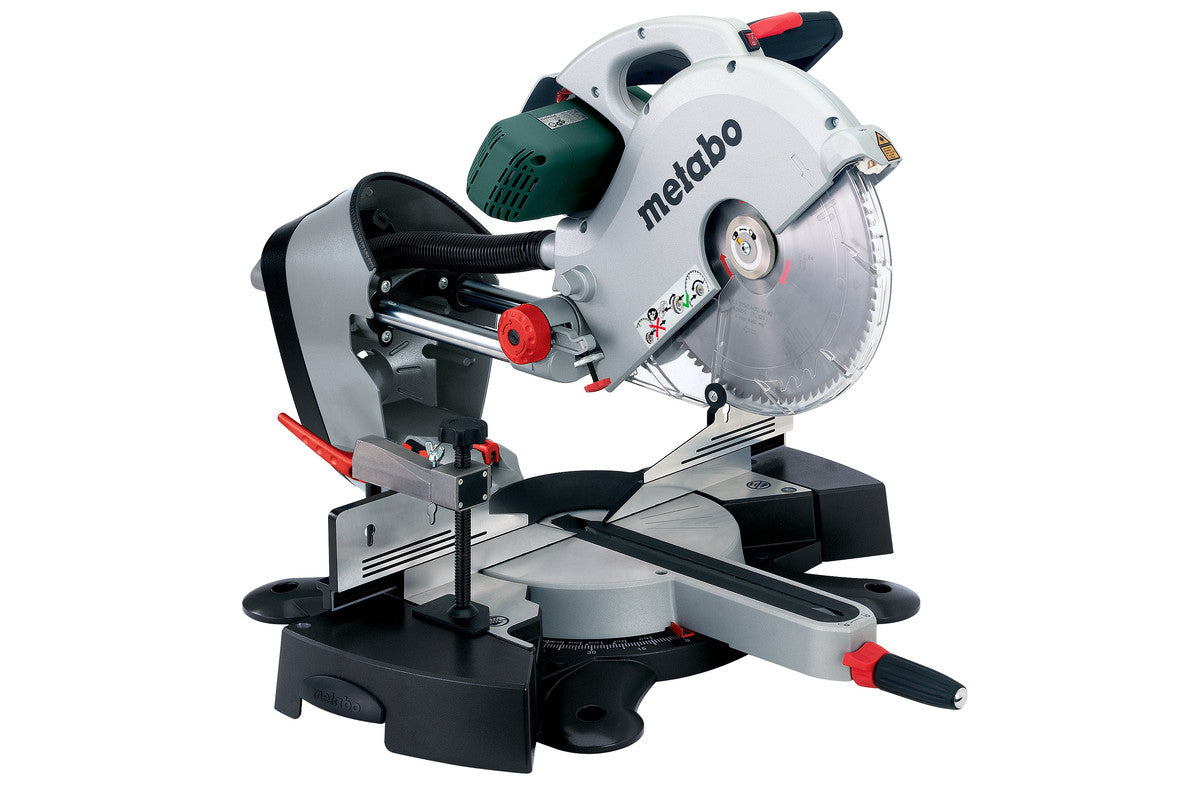

KGS 315 Plus (0103150000) Mitre saw

• Maximum flexibility when sawing thanks to rotating table and inclinable saw head on both sides
• Enormous cutting performance due to extremely powerful universal motor and large saw blade
• Variable speed for an extended range of applications, e.g. for sawing aluminum profiles and plastics
• Large cutting capacity thanks to sliding function for wide work pieces
• Easy transport thanks to ergonomically-designed handles and saw head lock
• Superb dust extraction capability thanks to a dual extraction port design aligned closely to the work piece.
• Vario-Constamatic (VC)-Full wave electronics for working at customised speeds to suit the application materials, and speeds that remain almost constant even under load
• Metabo Quick for changing saw blades without tools
• Soft start for long service life of motor and drive
• Fast and precise setting of common angles using stop points
• Sliding high rear fence profiles for safe sawing
• Quick-action clamp for secure fixing of the work piece from the top or front
• Integrated, pull-out table width extensions made from die-cast aluminium
• Depth guide for easy creation of grooves
• All scales and operating elements are visible from the working position and can be operated intuitively

Technical Data

Characteristics

• Dimensions: 950 x 765 x 660 mm
• Support surface: 1070 x 505 x 365 mm
• Maximum cutting width 90°/45°: 320 / 223 mm
• Maximum cutting depth at 90°/45°: 120 / 76 mm
• Cutting capacity 90°/90°: 320 x 120 mm
• Cutting capacity 45°/45°: 223 x 76 mm
• Turntable setting left/right: 47 / 60 °
• Saw blade tilt left/right: 46 / 46 °
• Saw blade: 315 x 30 mm
• Rated input power S1 100%: 1600 W
• Rated input power S6 20%: 2200 W
• No-load speed: 3100 - 4100 rpm
• Speed at rated load: 4100 rpm
• Cutting speed: 51 - 68 m/s
• Weight: 27.2 kg
• Cable length: 2.1 m

Noise emission

• Sound pressure level: 89 dB(A)
• Sound power level (LwA): 98 dB(A)
• Uncertainty of measurement K: 2.6 dB(A)

Scope of Delivery

• Carbide saw blade (84 teeth)
• 2 Table length extensions
• Material clamp
• Adapter 35/58 mm
