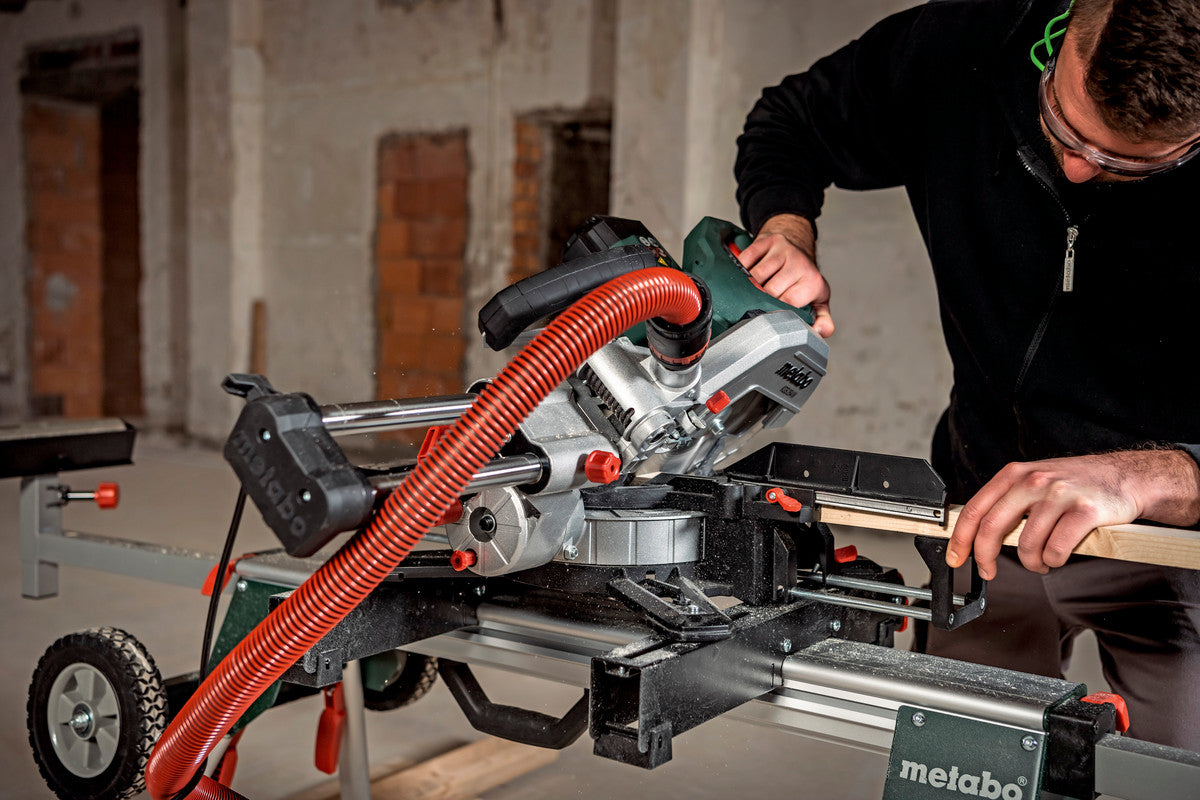

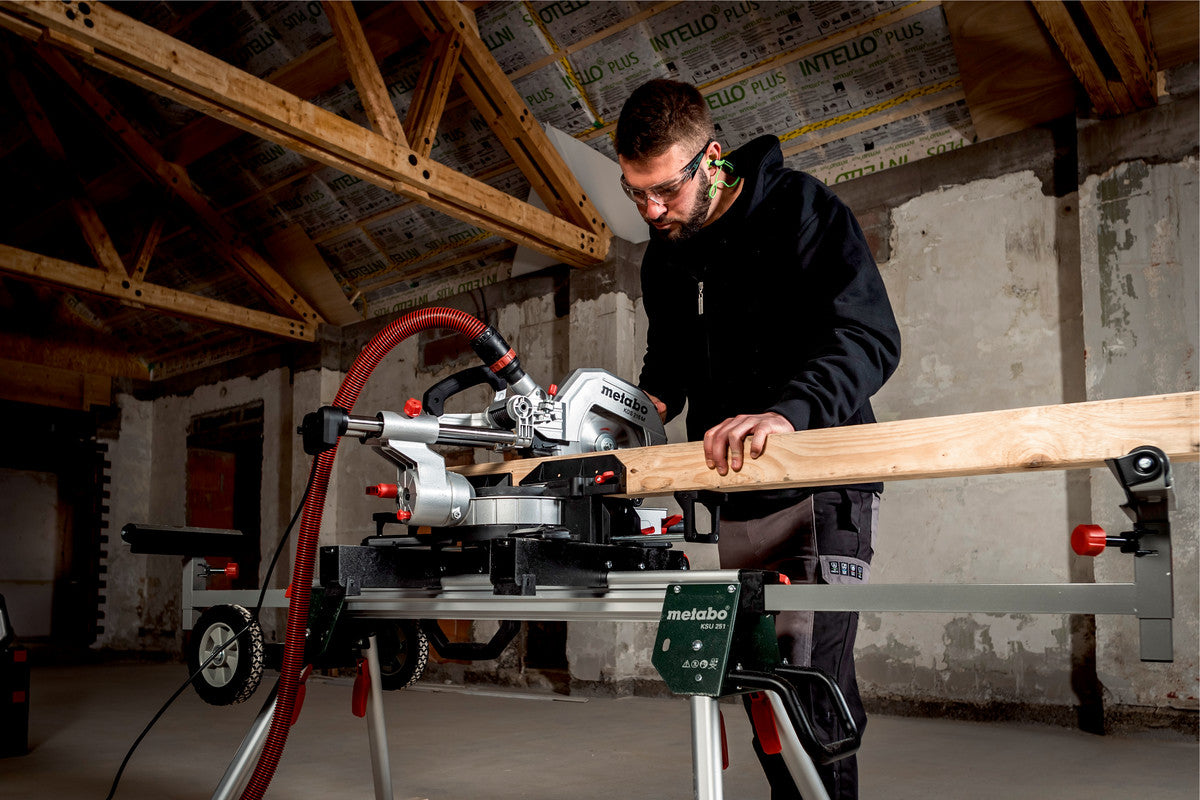

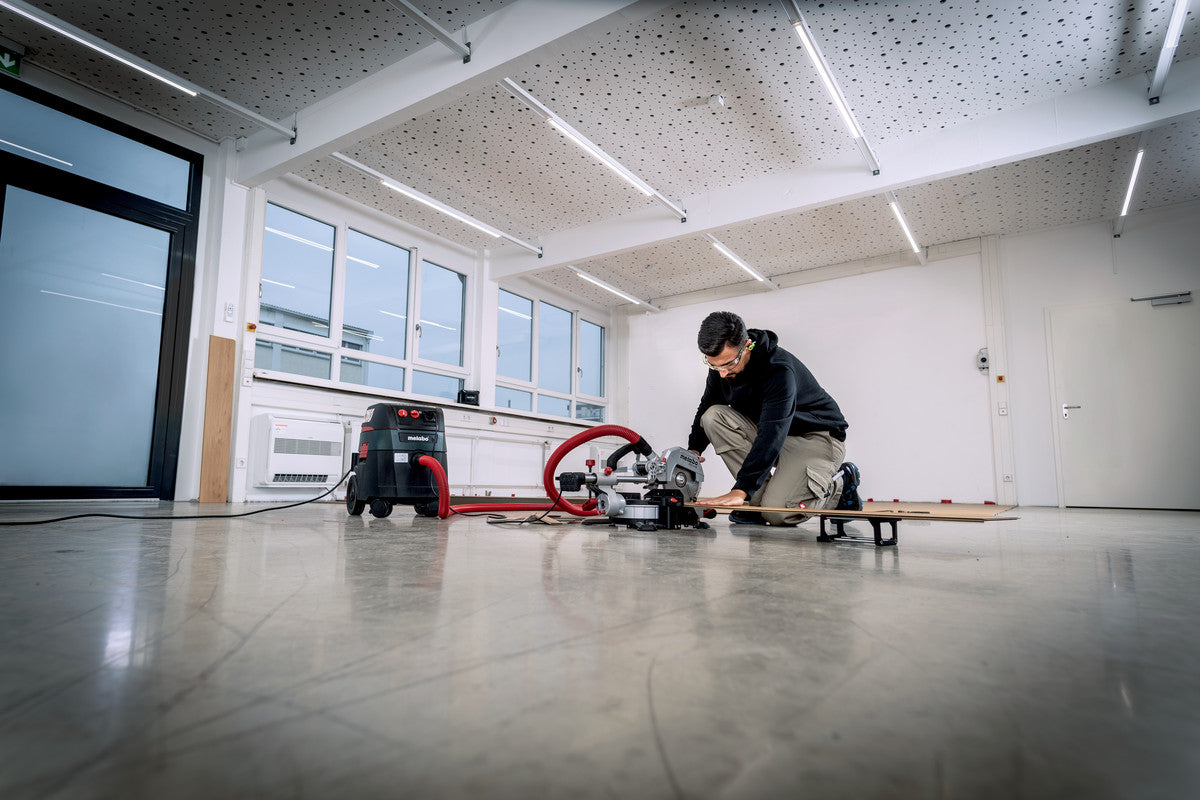

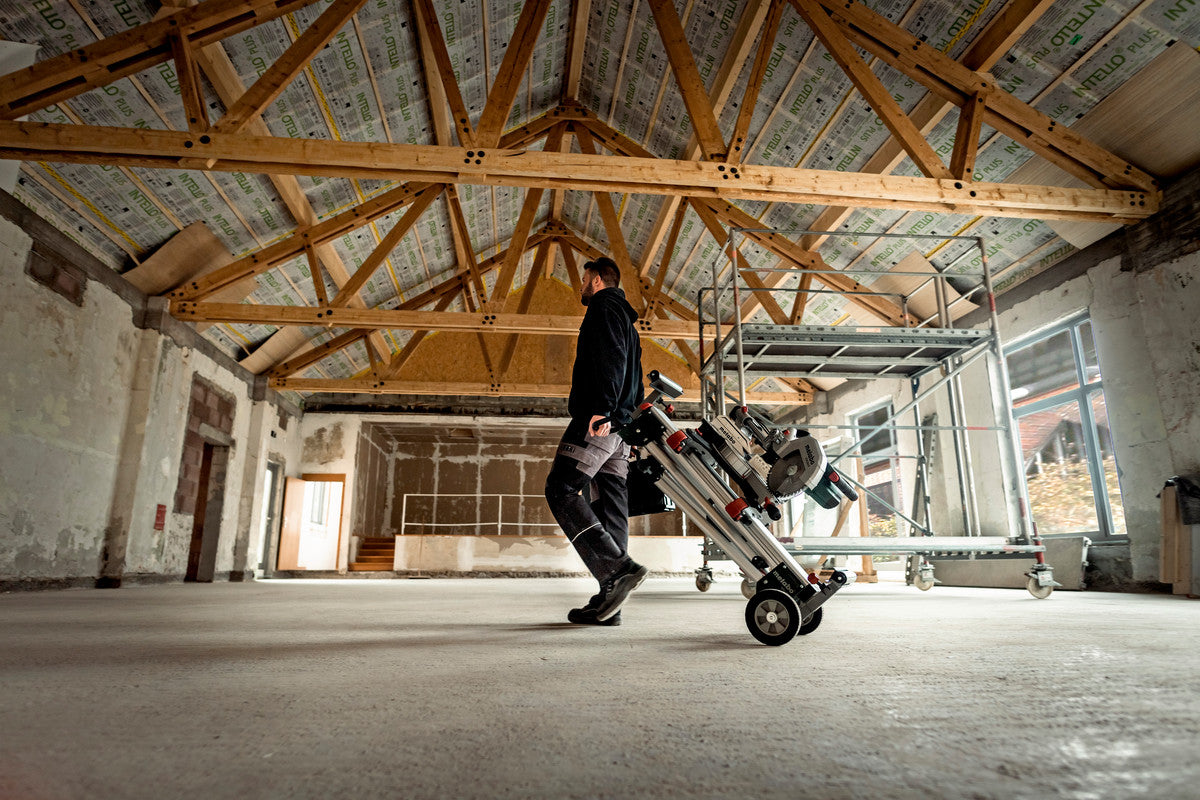

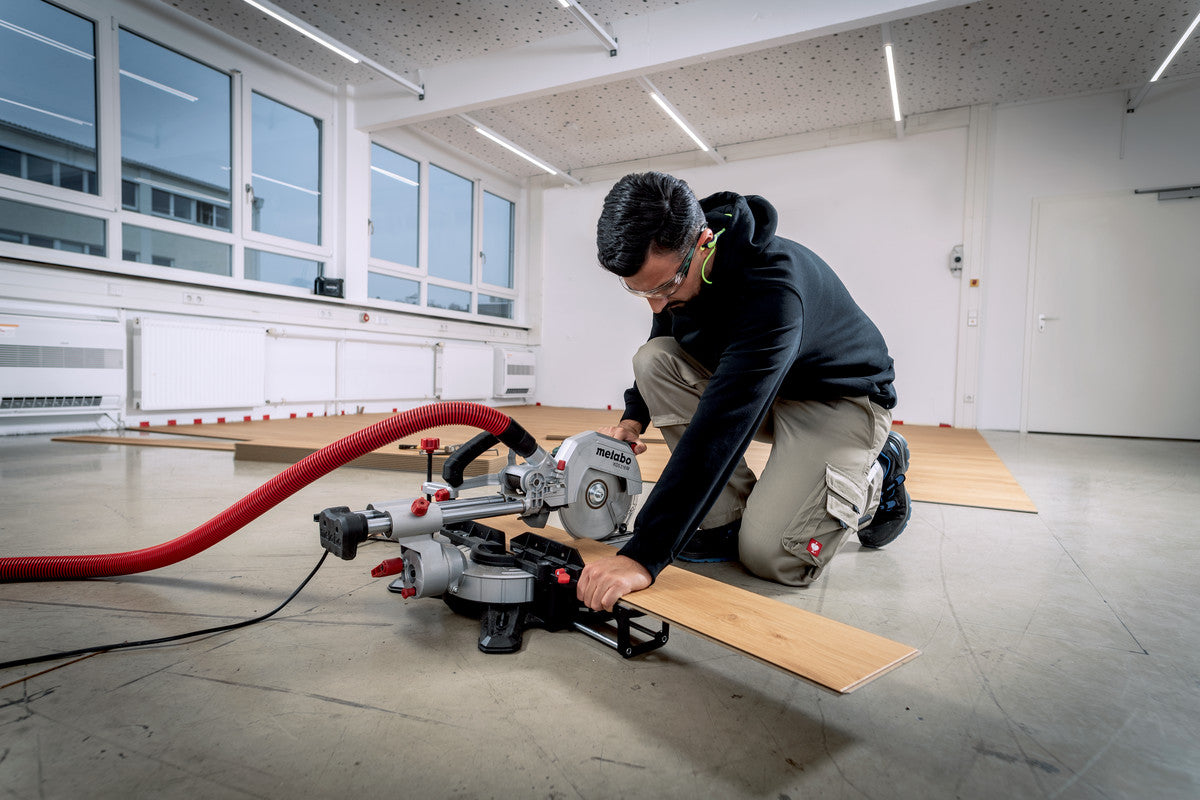

KGS 216 M (613216000) Mitre saw

• Crosscut and mitre saw of the mobile M-class with sliding function - light, precise, user-friendly
• Precision Cut Line (PCL): precise shadow cutting line without re-adjustment thanks to cleverly positioned LED
• Large cutting capacity thanks to sliding function for wide work pieces
• Turntable with fast, precise setting of common angles using stop points
• Saw blade inclination from -2 to 47°, therefore also suited for undercuts
• Robust die-cast aluminium design for the highest demands
• Effective dust extraction via integrated dust scoop
• Soft start for long service life of motor and drive
• Extendable table width extensions, also removable to put underneath extremely long work pieces
• Quick-action clamp for secure fixing of the work piece from the top or front
• Depth guide for easy creation of grooves
• All scales and operating elements are visible from the working position and can be operated intuitively
• Ergonomic handle areas for carrying with one or two hands

Technical Data

Characteristics

• Dimensions: 710 x 476 x 512 mm
• Support surface: 345 x 730 mm
• Maximum cutting width 90°/45°: 305 / 215 mm
• Maximum cutting depth at 90°/45°: 70 / 40 mm
• Cutting capacity 90°/90°: 305 x 70 mm
• Cutting capacity 45°/45°: 215 x 40 mm
• Turntable setting left/right: 50 / 50 °
• Saw blade tilt left/right: 47 / 2 °
• Saw blade: 216 x 30 mm
• Rated input power S1 100%: 1200 W
• Rated input power S6 20%: 1500 W
• No-load speed: 5000 rpm
• Speed at rated load: 3750 rpm
• Cutting speed: 57 m/s
• Weight: 13.4 kg
• Cable length: 2 m

Noise emission

• Sound pressure level: 85 dB(A)
• Sound power level (LwA): 98 dB(A)
• Uncertainty of measurement K: 3 dB(A)

Scope of Delivery

• Saw blade "precision cut wood - classic", 216x30, Z40
• 2 Table length extensions
• Length Guide
• Material clamp
• Tool for saw blade change
• Cable winder
• Chip Collection Bag
