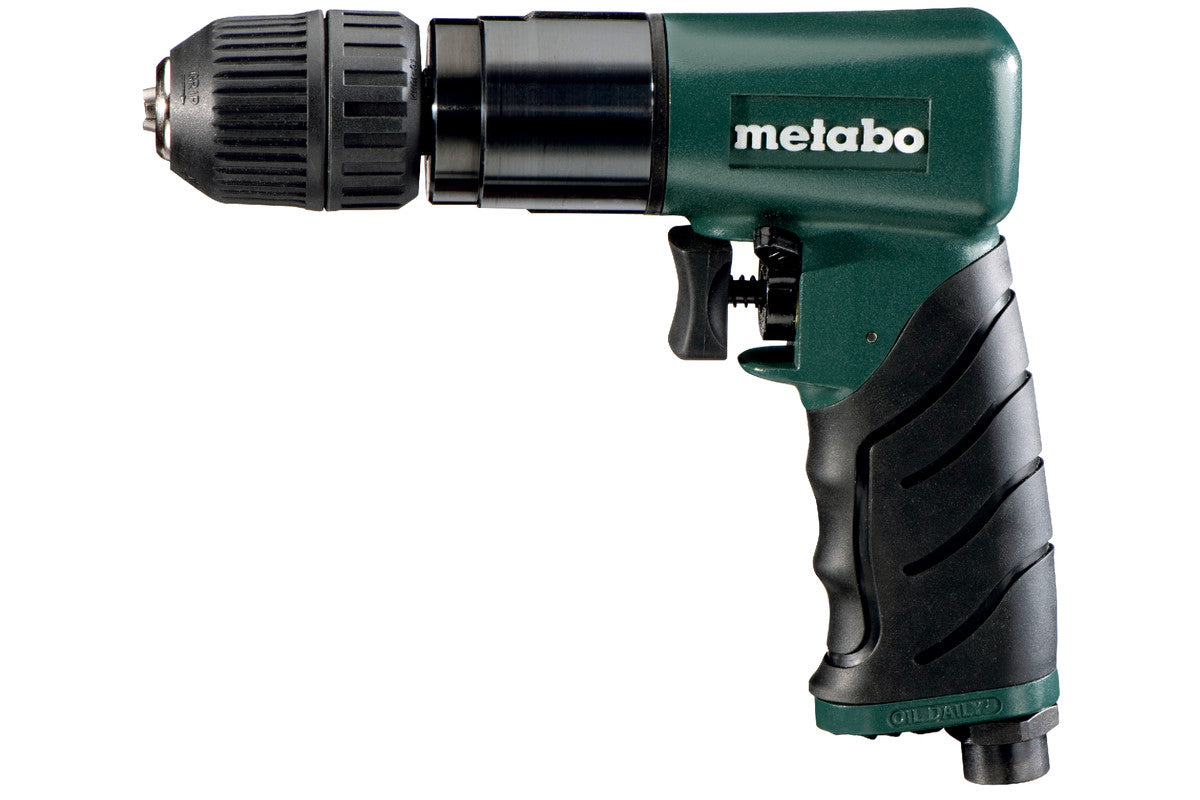

DB 10 (604120000) Air drill

• Ergonomically shaped, rubber-coated handle for comfortable and low-fatigue operation
• Quick work progress thanks to high torque of 1,800 / min
• Ergonomic fwd/rev switch
• Exhaust guide with handle

Technical Data

Characteristics

• Operating pressure: 6.2 bar
• Air requirement: 360 l/min
• Speed (RPM): 1800 rpm
• Chuck capacity: 3 - 10 mm
• Weight: 1.2 kg

Vibration

• Drilling in metal: 3.9 m/s²
• Uncertainty of measurement K: 1.5 m/s²

Noise emission

• Sound pressure level: 80 dB(A)
• Sound power level (LwA): 92 dB(A)
• Uncertainty of measurement K: 3 dB(A)

Scope of Delivery

• EURO Plug-in nipple 1/4"
• ARO/Orion Plug-in nipple 1/4"
• ISO Plug-in nipple 1/4"
• Oil bottles
