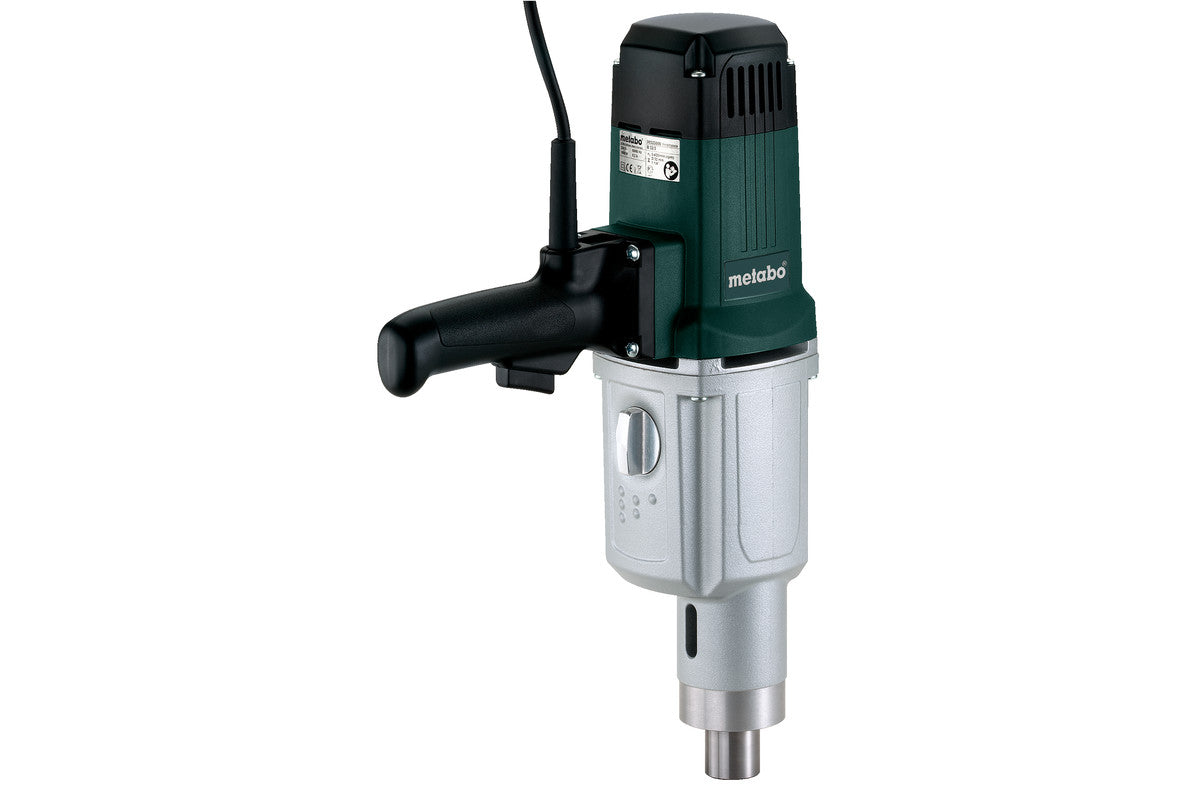

B 32/3 (600323000) Drill

• Powerful three-speed drill with extra high torque for working in a drill stand
• Robust mechanical gearbox with oil bath lubrication
• Robust die cast aluminium gear housing for optimum heat dissipation and durability
• Vario (V)-Electronics for working at customised speeds to suit various application materials
• Safety clutch: mechanical decoupling of the drive for safe working should the drill stop unexpectedly
• For easy drilling of larger diameters and driving in of very long screws

Technical Data

Characteristics

• Rated input power: 1750 W
• Output power: 1200 W
• Drill Ø steel: 32 mm
• Drill-Ø soft wood: 70 mm
• No-load speed: 0 - 170 / 0 - 320 / 0 - 470 rpm
• Speed at rated load: 110 / 190 / 280 rpm
• Gears: 3
• Maximum torque: 190 / 120 / 90 Nm
• Collar diameter: 65 mm
• Drill spindle with inside taper: MT 3
• Weight (without power cable): 7.8 kg
• Cable length: 5 m

Vibration

• Drilling in metal: 2.5 m/s²
• Uncertainty of measurement K: 1.5 m/s²

Noise emission

• Sound pressure level: 93 dB(A)
• Sound power level (LwA): 101 dB(A)
• Uncertainty of measurement K: 5 dB(A)

Scope of Delivery

• Drift key
