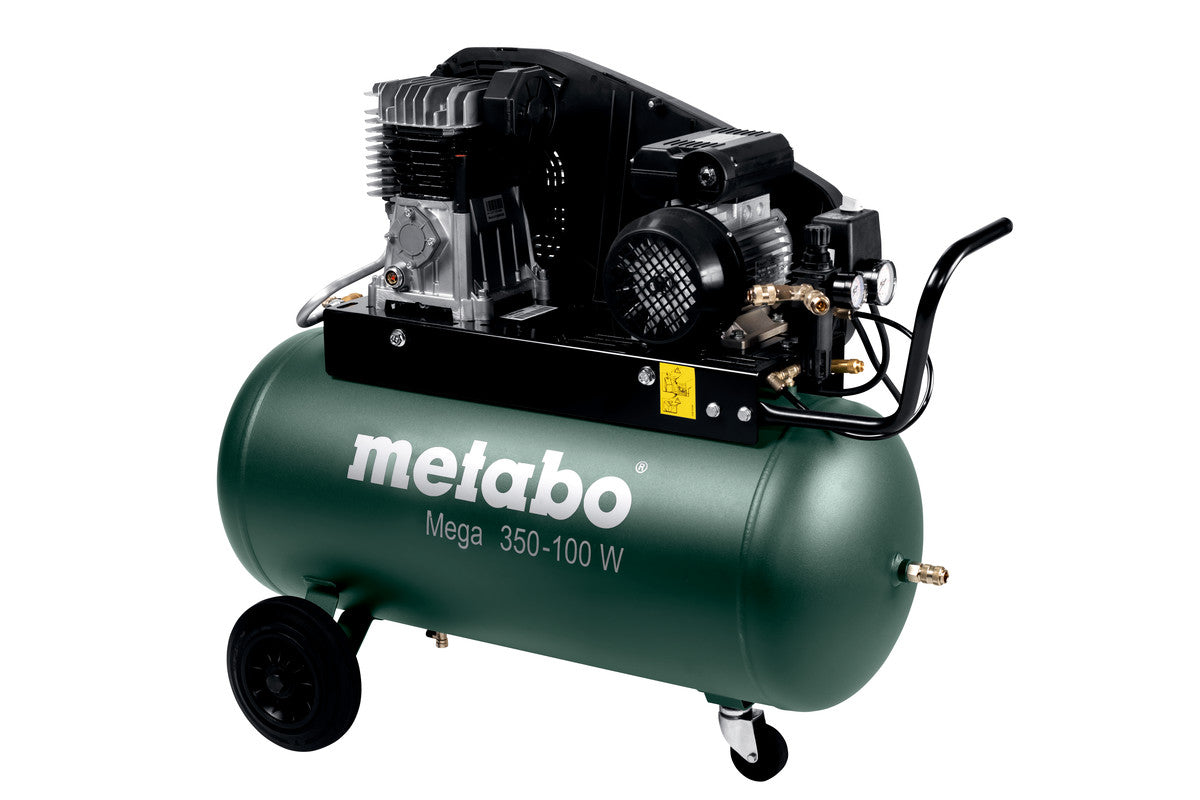

Mega 350-100 W (601538000) Compressor

• More powerful and robust V-belt compressor for demanding use
• Belt drive for low speeds and a particularly quiet operation
• Oil-lubricated Piston Condenser
• For single phase alternating current

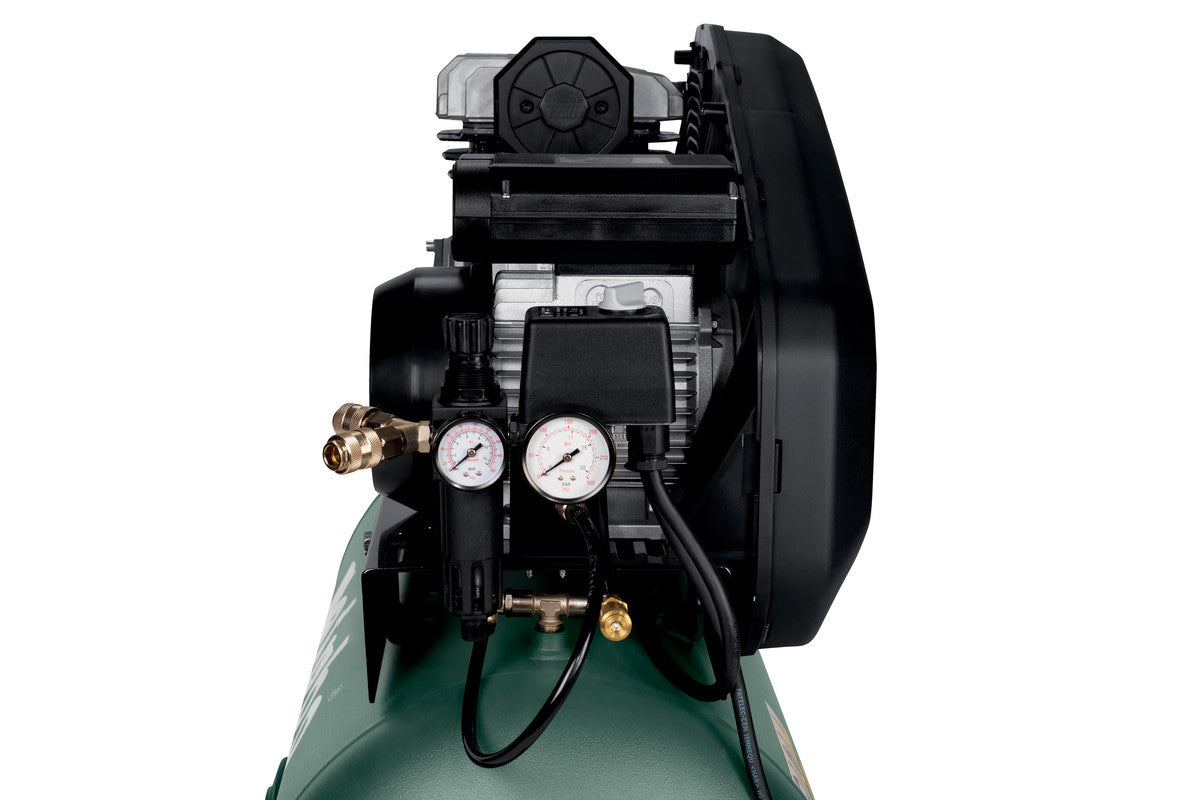

• Working pressure can be regulated according to application by means of a filter pressure reducer with manometer
• Convenient pressure switch for good cold starting, complete with relief valve
• Additional manometer for displaying the tank pressure
• Overload protection: protects the motor from overheating
• Rubberised, stable wheels and pull handle for mobile use
• 10 year tank warranty against rust

Technical Data

Characteristics

• Suction rate: 320 l/min
• Filling capacity: 250 l/min
• Effective delivery volume (at 80% max. pressure): 220 l/min
• Maximum pressure: 10 bar
• Mains voltage: 220 - 240 V
• Rated input power: 2.2 kW
• Maximum speed: 1350 rpm
• Tank capacity: 90 l
• Sound pressure level (LpA): 86 dB(A)
• Sound power level (LwA): 93 dB(A)
• Dimensions: 1000 x 410 x 900 mm
• Weight: 69 kg
• Cable length: 1.5 m

Noise emission

• Sound pressure level: 86 dB(A)
• Sound power level (LwA): 93 dB(A)

Scope of Delivery

• 3 Universal couplings
