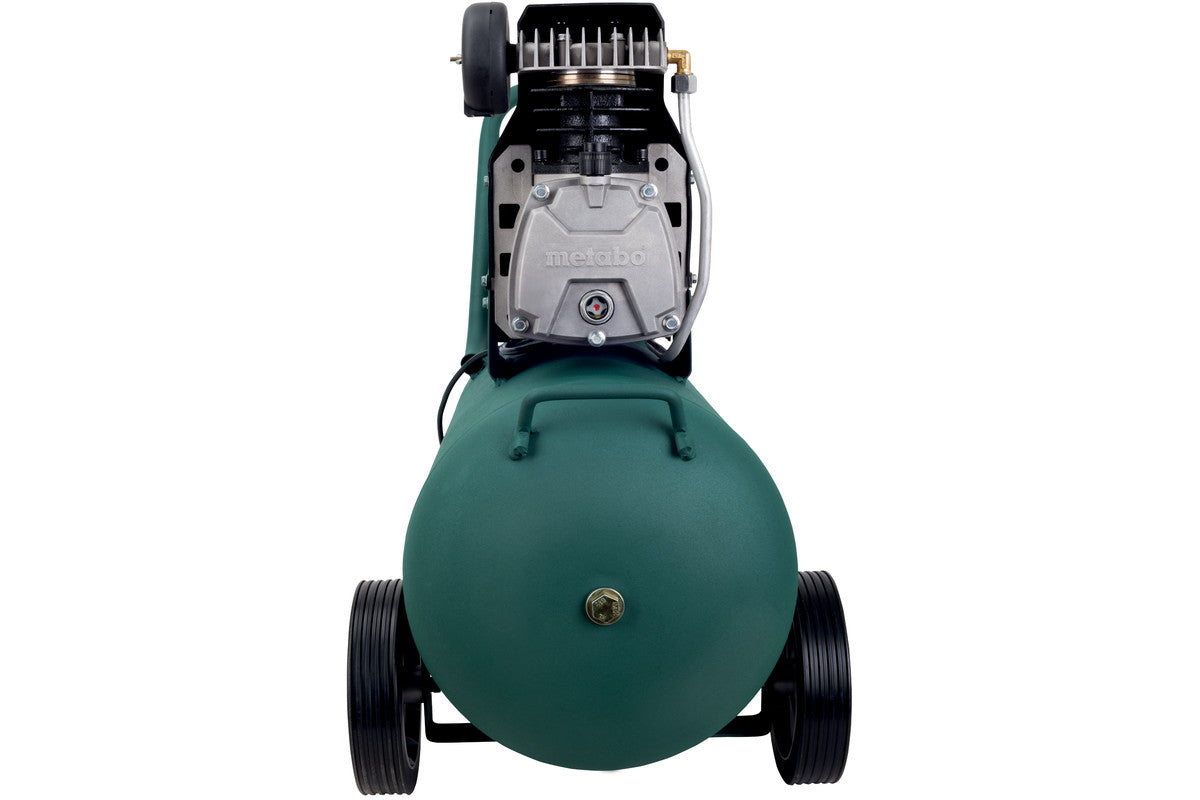

Basic 250-50 W (601534000) Compressor

• Powerful, robust compressor for simple, commercial use
• Oil-lubricated Piston Condenser
• For single phase alternating current
• Operating pressure can be regulated according to application by means of a pressure reducer and manometer
• Convenient pressure switch for good cold starting, complete with relief valve
• Overload protection: protects the motor from overheating
• Rubberised, stable wheels for mobile use
• Additional manometer for displaying the tank pressure
• Rubber-coated handle for comfortable handling
• 10 year tank warranty against rust

Technical Data

Characteristics

• Suction rate: 200 l/min
• Filling capacity: 110 l/min
• Effective delivery volume (at 80% max. pressure): 95 l/min
• Maximum pressure: 8 bar
• Rated input power: 1.5 kW
• Maximum speed: 2850 rpm
• Tank capacity: 50 l
• Sound pressure level (LpA): 81 dB(A)
• Sound power level (LwA): 97 dB(A)
• Dimensions: 780 x 400 x 625 mm
• Weight: 32 kg
• Cable length: 1.5 m

Noise emission

• Sound pressure level: 81 dB(A)
• Sound power level (LwA): 97 dB(A)

Scope of Delivery

• Universal quick-action coupling
• Pull handle with rubber-grip
