KT 18 LTX 66 BL (601866840) Cordless plunge cut saw

• Cordless plunge cut saw with brushless motor for powerful plunge cuts and precise cuts up to a depth of 66 mm (!)
• Adjustable fit without play on the guide rails from Metabo and other manufacturers for precise cutting results.
• LIHD high-performance battery packs and the Metabo brushless motor guarantee maximum power and enduring sawing
• Versatile application thanks to variable speed for different materials
• Double guide for precise setting of the cutting depth with and without guide rail
• With undercut function for precise transitions, 0° and 45° position readjustable for highest cutting precision
• Sawing close to the wall possible down to 14 mm
• Low-dust sawing thanks to large-volume dust bag or by connecting a vacuum cleaner

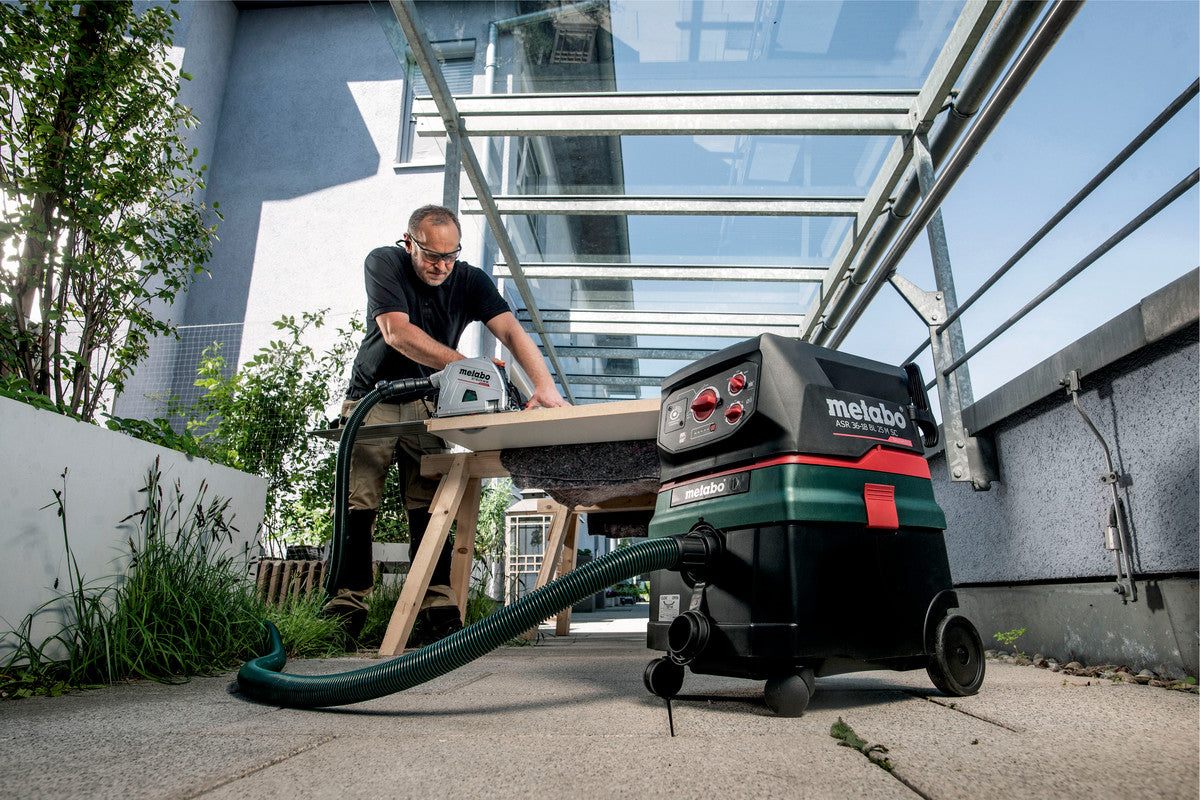

• Automatic switching on/off of the connected vacuum cleaner thanks to CordlessControl. (available as accessory)
• Sawdust ejection nozzle for any working position can be rotated and locked individually
• Fast brake stops the saw blade quickly and improves safety
• Viewing window in the guard for precise cutting guidance
• Fast and easy changing of the sawblade with lever for locking plunge position and spindle stop
• With metaBOX, the intelligent solution for transport and storage
• Many brands, one battery pack system: This product can be combined with all 18V battery packs and chargers of the CAS brands: www.cordless-alliance-systems.com

Technical Data

Characteristics

• Battery voltage: 18 V
• Swivel range from / to:: - 1 / + 46 °
• Adjustable cutting depth: 0 - 66 mm
• Maximum cutting depth at 90°: 66 mm
• Maximum cutting depth at 45°: 43 mm
• Max. cutting depth with guide rail: 61 mm
• Saw blade Ø x bore: 165 x 20 mm
• No-load speed: 2250 - 5000 rpm
• Max. cutting speed: 43 m/s
• Weight without battery pack: 4.3 kg
• Weight with battery pack: 5.3 kg

Vibration

• Sawing chipboards: 2.5 m/s²
• Uncertainty of measurement K: 1.5 m/s²

Noise emission

• Sound pressure level: 93 dB(A)
• Sound power level (LwA): 101 dB(A)
• Uncertainty of measurement K: 3 dB(A)

Scope of Delivery

• Saw blade "precision cut wood - classic" 165x20 Z42 WZ 5°
• Dust Bag
• Hexagonal wrench
• metaBOX 340
• without battery pack, without charger
