KS 18 LTX 66 BL Set (691194000) Cordless circular saw

• Powerful, light, cordless circular saw for universal use on construction sites
• Aluminium base plate can be directly used on guide rails from Metabo and Mafell, Bosch, Festool, Makita, HiKOKI, Hilti and other manufacturers

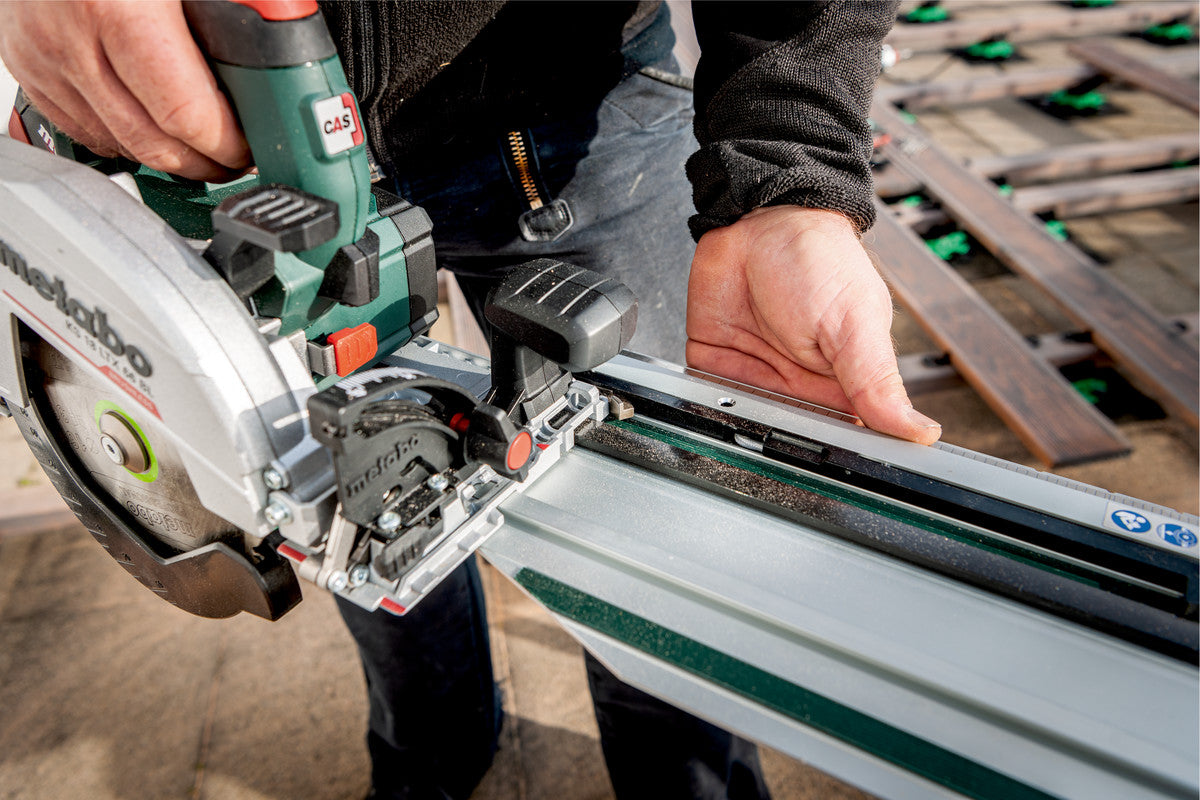

• Fast, precise cross cuts thanks to easy coupling with a Metabo KFS cross cutting rail

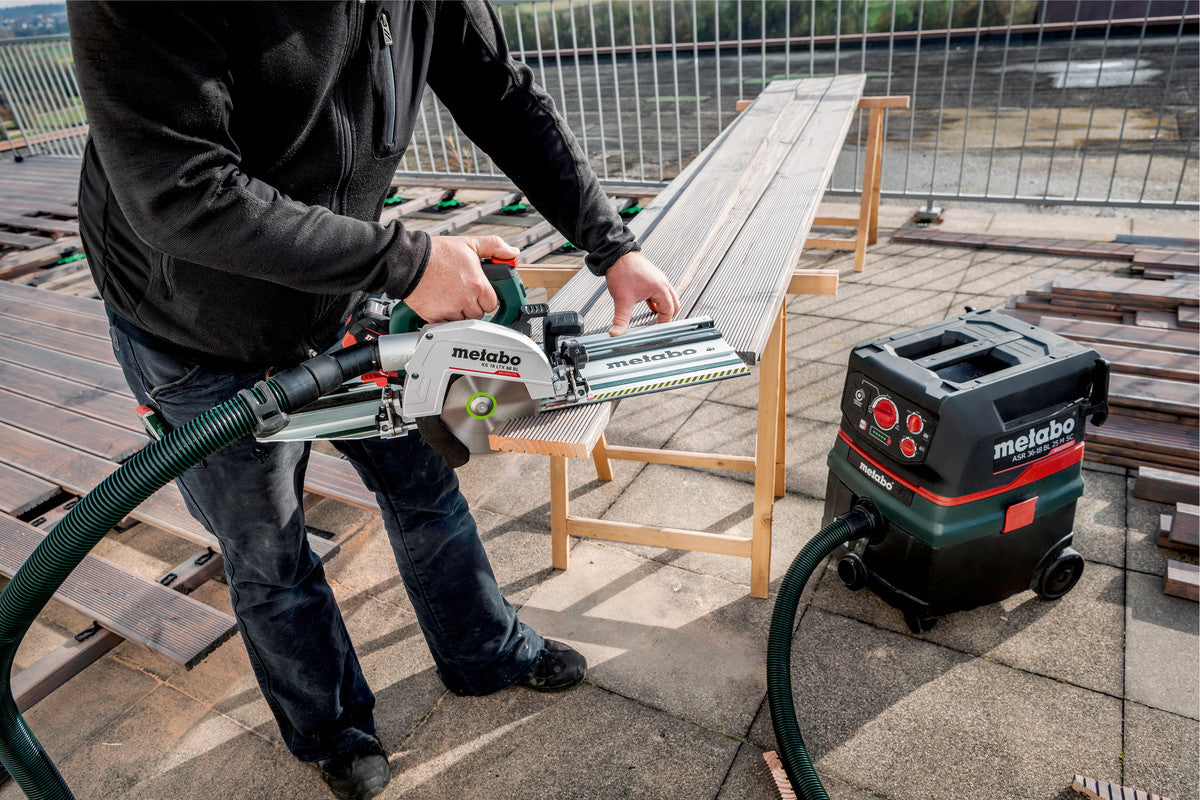

• Automatic switching on/off of the connected vacuum cleaner thanks to CordlessControl. (available as accessory)
• Sawdust ejection nozzle for any working position can be rotated and locked individually
• Integrated LED work light for optimum illumination of the cutting line
• 0° position re-adjustable for highest cutting precision
• Clearly visible cutting indicator for precise sawing after initial cut
• Robust and durable thanks to aluminium die-cast saw housing
• Handle with non-slip soft-grip surface for safe guidance
• Extraction possibility by means of connecting an all-purpose vacuum cleaner
• Many brands, one battery pack system: This product can be combined with all 18V battery packs and chargers of the CAS brands: www.cordless-alliance-systems.com

Technical Data

Characteristics

• Battery voltage: 18 V
• Swivel range from / to:: ‌ 0 / + 46 °
• Adjustable cutting depth: 0 - 66 mm
• Maximum cutting depth at 90°: 66 mm
• Maximum cutting depth at 45°: 43 mm
• Max. cutting depth with guide rail: 61 mm
• Saw blade Ø x bore: 165 x 20 mm
• No-load speed: 4800 rpm
• Max. cutting speed: 43 m/s
• Weight without battery pack: 3.5 kg
• Weight with battery pack: 4.5 kg

Vibration

• Sawing chipboards: 2.5 m/s²
• Uncertainty of measurement K: 1.5 m/s²

Noise emission

• Sound pressure level: 90 dB(A)
• Sound power level (LwA): 98 dB(A)
• Uncertainty of measurement K: 3 dB(A)

Scope of Delivery

• Carbide circular saw blade (18 teeth)
• Parallel guide
• Hexagonal wrench
• Cross cutting rail KFS 44 (44 cm)
• metaBOX 340
• without battery pack, without charger
