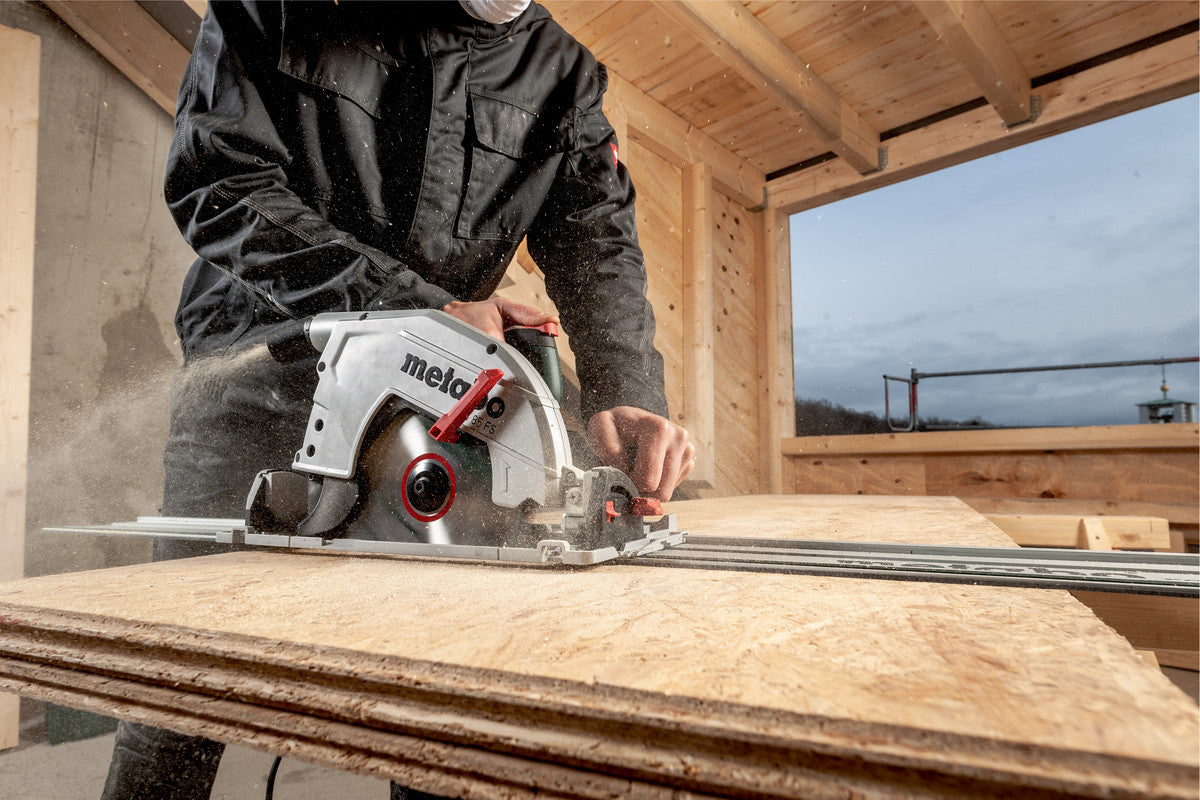

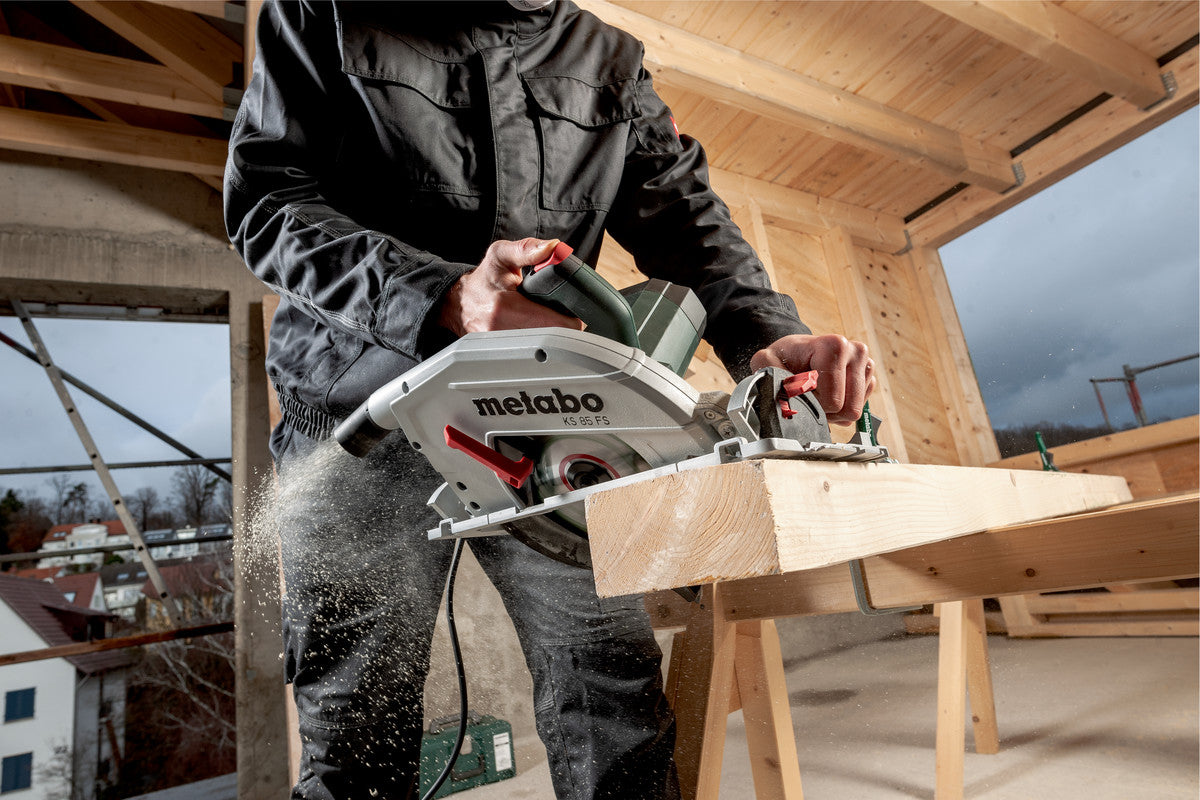

KS 85 FS (601085000) Circular saw

• Robust circular saw, can be used directly on guide rails from Mafell, Bosch, Festool, Makita, HiKOKI, Hilti and other manufacturers
• Fast, precise cross cuts thanks to easy coupling with a Metabo cross cutting rail
• Light guide plate made from die cast aluminium
• Grip area with non-slip soft-grip surface
• Precise, double-track aluminium parallel guide makes cutting to size easier
• Clearly visible cutting indicator for precise sawing after initial cut
• 0° position re-adjustable for highest cutting precision
• Extraction possibility by means of connecting an all-purpose vacuum cleaner
• Sawdust ejection nozzle for any working position can be rotated and locked individually
• Auto-stop carbon brushes to protect the motor
• Precision guide rail available as accessory

Technical Data

Characteristics

• Rated input power: 2000 W
• Output power: 1100 W
• Maximum cutting depth at 90°: 85 mm
• Maximum cutting depth at 45°: 65 mm
• Max. cutting depth with guide rail: 80 mm
• Saw blade Ø x bore: 235 x 30 mm
• Swivel range from / to:: ‌ 0 / + 48 °
• No-load speed: 4500 rpm
• Speed at rated load: 3800 rpm
• Max. cutting speed: 55 m/s
• Weight (without power cable): 8.4 kg
• Cable length: 4 m

Vibration

• Sawing chipboards: 3.4 m/s²
• Uncertainty of measurement K: 1.5 m/s²

Noise emission

• Sound pressure level: 98 dB(A)
• Sound power level (LwA): 106 dB(A)
• Uncertainty of measurement K: 3 dB(A)

Scope of Delivery

• Carbide circular saw blade (24 teeth)
• Aluminium parallel guide
• Hexagonal wrench
