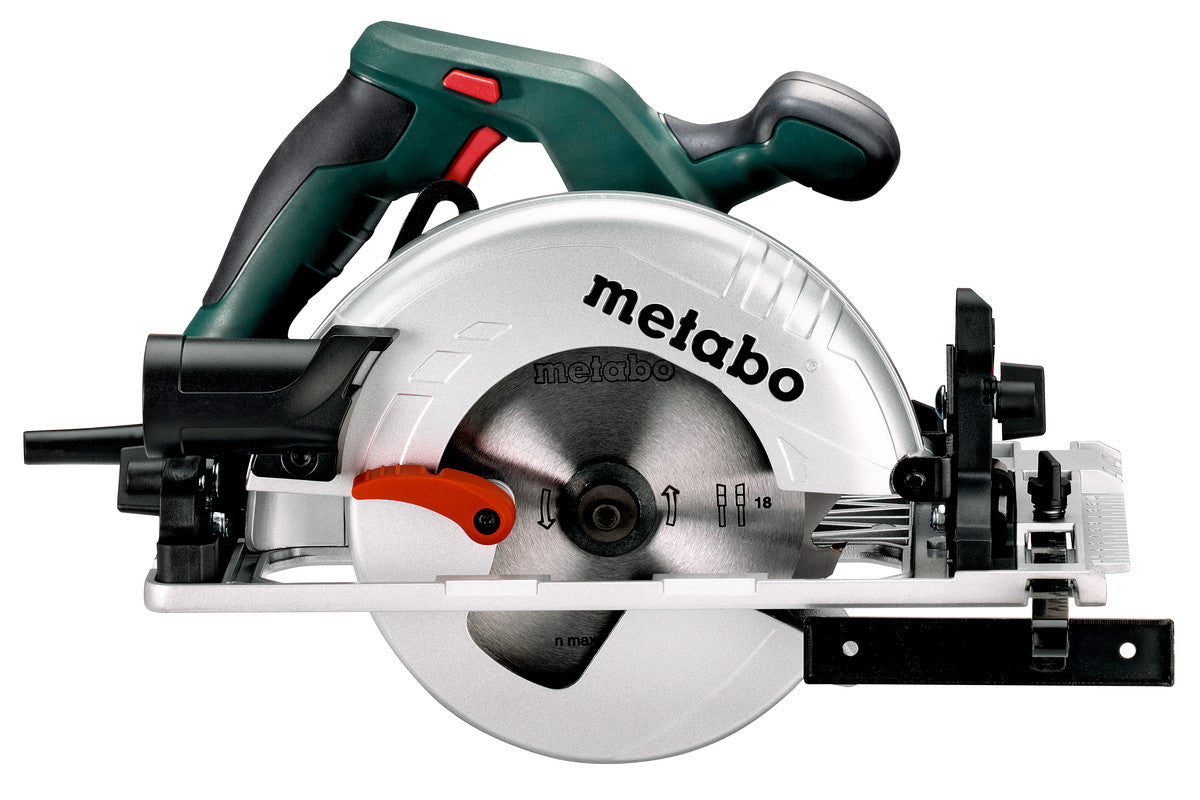

KS 55 FS (600955500) Circular saw

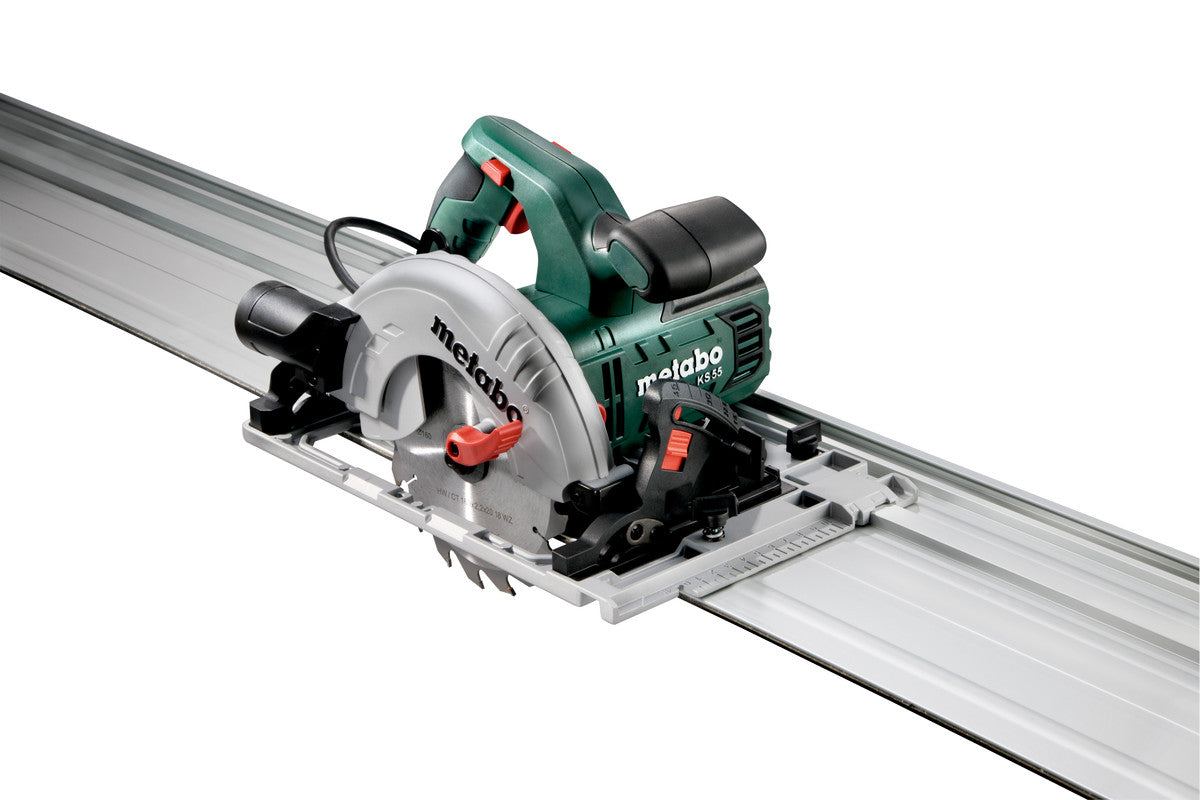

• Robust circular saw, can be used directly on guide rails from Mafell, Bosch, Festool, Makita, HiKOKI, Hilti and other manufacturers
• Light guide plate made from die cast aluminium
• Grip area with non-slip soft-grip surface
• Clearly visible cutting indicator for precise sawing after initial cut
• 0° position re-adjustable for highest cutting precision
• Extraction possibility by means of connecting an all-purpose vacuum cleaner
• Adjustment of machine without tools for using with the precision guide rail

Technical Data

Characteristics

• Rated input power: 1200 W
• Output power: 670 W
• Maximum cutting depth at 90°: 55 mm
• Maximum cutting depth at 45°: 39 mm
• Max. cutting depth with guide rail: 50 mm
• Saw blade Ø x bore: 160 x 20 mm
• Swivel range from / to:: ‌ 0 / + 47 °
• No-load speed: 5600 rpm
• Speed at rated load: 4400 rpm
• Max. cutting speed: 47 m/s
• Torque: 5 Nm
• Weight (without power cable): 4 kg
• Cable length: 4 m

Vibration

• Sawing chipboards: 3.4 m/s²
• Uncertainty of measurement K: 1.5 m/s²

Noise emission

• Sound pressure level: 96 dB(A)
• Sound power level (LwA): 104 dB(A)
• Uncertainty of measurement K: 3 dB(A)

Scope of Delivery

• Carbide circular saw blade (18 teeth)
• Parallel guide
• Extraction connector
• Hexagonal wrench
• Plastic carry case
