KFM 9-3 RF (601751700) Bevelling tool for metal

• Compact metal bevelling tool for 45° chamfers and radii of 2 to 3 mm at visible edges
• Surfaces free from oxide and burrs as ideal preparation for the application of powder or paint coatings for maximum protection from corrosion
• One-touch controller: Patented, tool-free setting of the cutting depth in 0.1 steps; stop points for short setting times, and protection against unintentional adjustment of the cutting depth when working

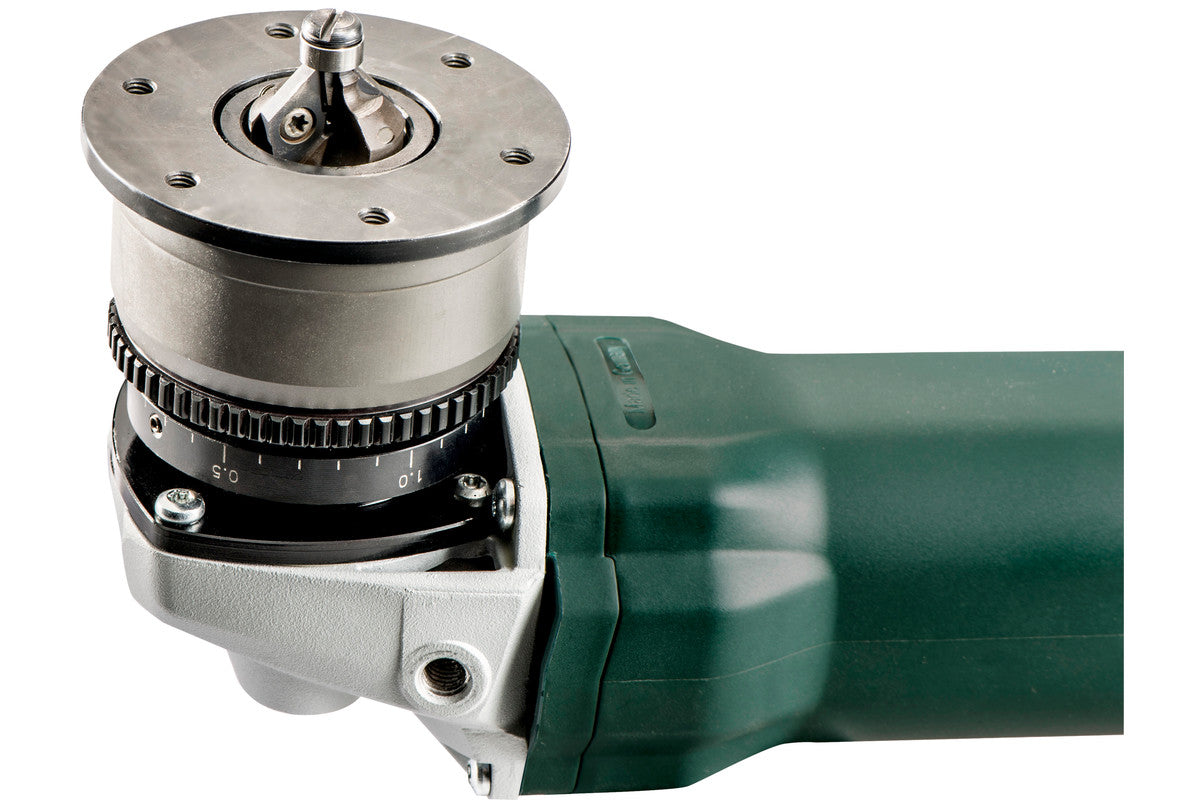

• Slim cutter head with standard carbide indexable inserts and ball-bearing stationary seal ring for working in tubes and in curves

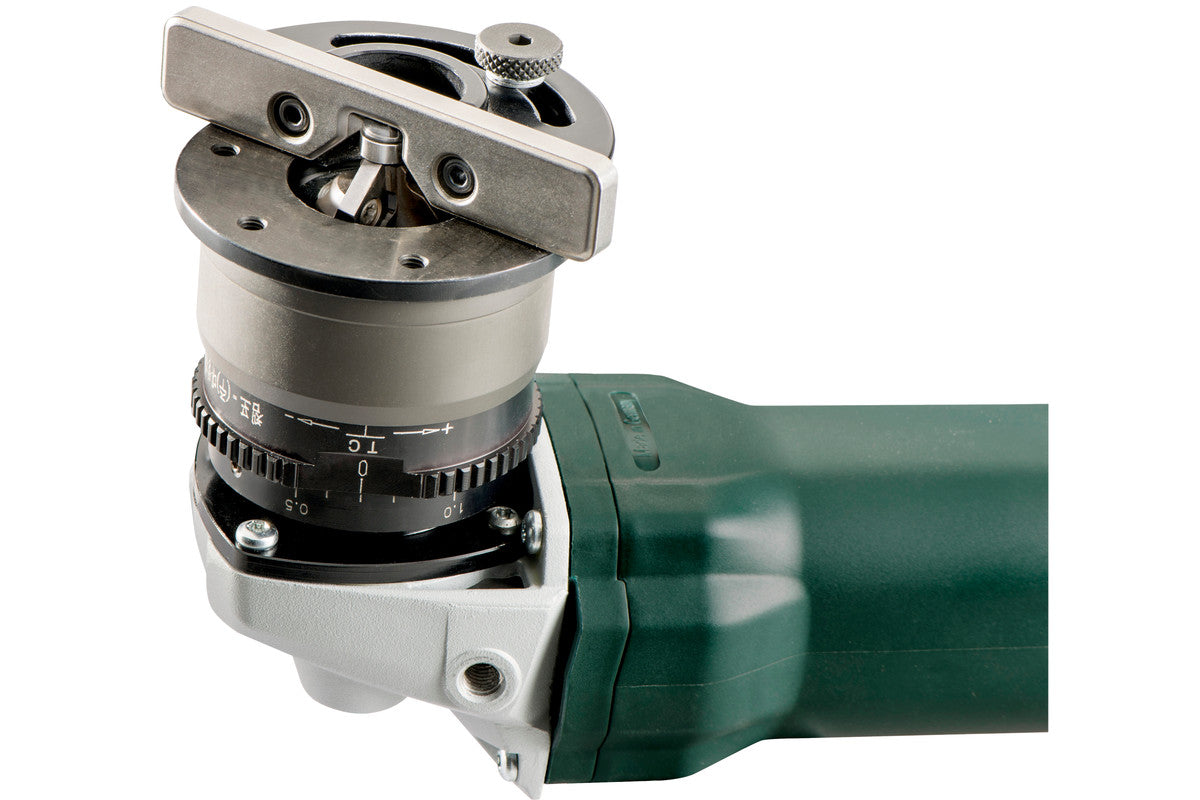

• Guide stop for a uniform finish and high quality surface finish when processing straight edges
• Bail handle adjusts without tools for secure, even guiding
• Metabo Marathon-motor with patented dust protection for long service life
• Thumbwheel controlled Vario-Constamatic (VC)-Full wave electronics ideal for working on materials requiring customised speeds, and at speeds which remain almost constant under load
• Electronic safety shutdown of the motor for safe working in case the tool stops unexpectedly
• Electronic overload protection, soft start and restart protection
• Slim design for ideal handling
• With metaBOX, the intelligent solution for transport and storage

Technical Data

Characteristics

• No-load speed: 4500 - 11500 rpm
• Rated input power: 900 W
• Output power: 470 W
• Type of edges: Chamfer and radius
• Chamfer angles: 45 - 45 °
• Max. chamfer width 45°: 6 mm
• Max. chamfer height at 45°: 4 mm
• Possible radii: R2 / R3
• Grading of cutting depth setting: 0.1 mm
• Curves smallest internal Ø: 13 mm
• Weight (without power cable): 2.5 kg
• Cable length: 4 m

Vibration

• Vibration: 0.7 m/s²
• Uncertainty of measurement K: 1.5 m/s²

Noise emission

• Sound pressure level: 90 dB(A)
• Sound power level (LwA): 98 dB(A)
• Uncertainty of measurement K: 3 dB(A)

Scope of Delivery

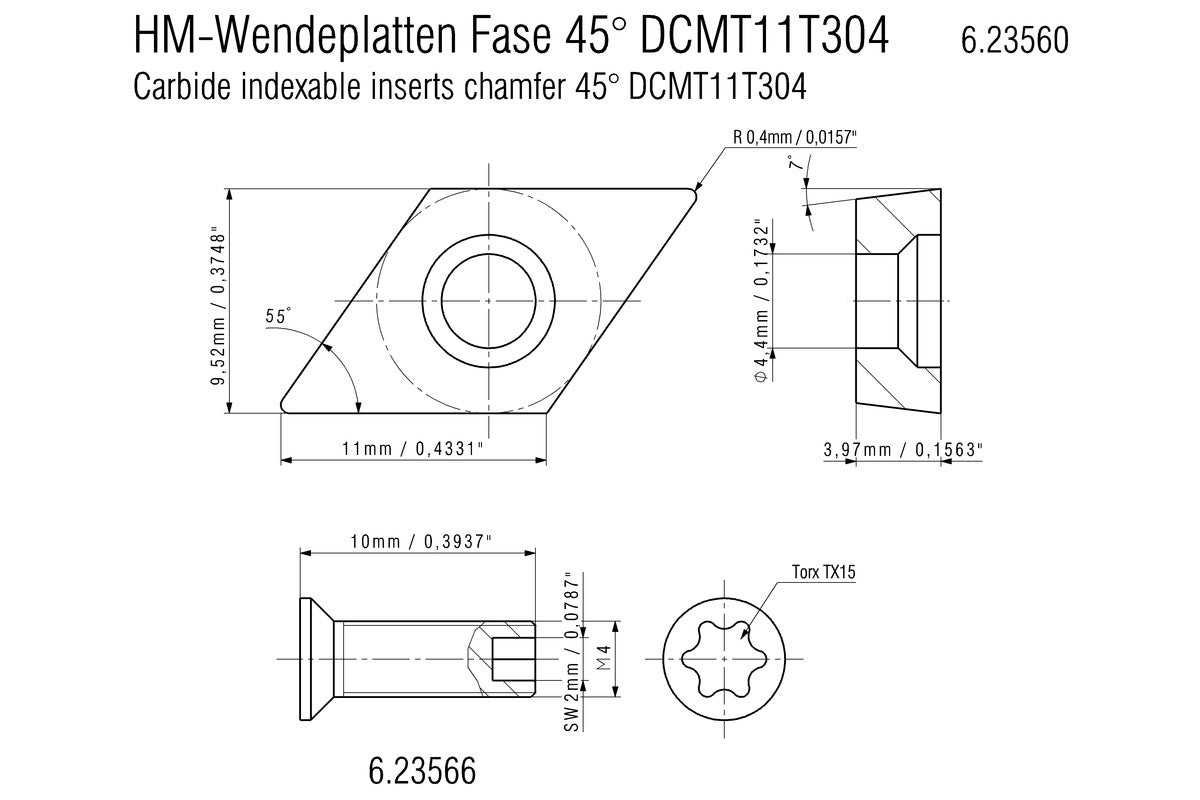

• 2 carbide indexable inserts 45° chamfer (ISO: DCMT 11 T 304)

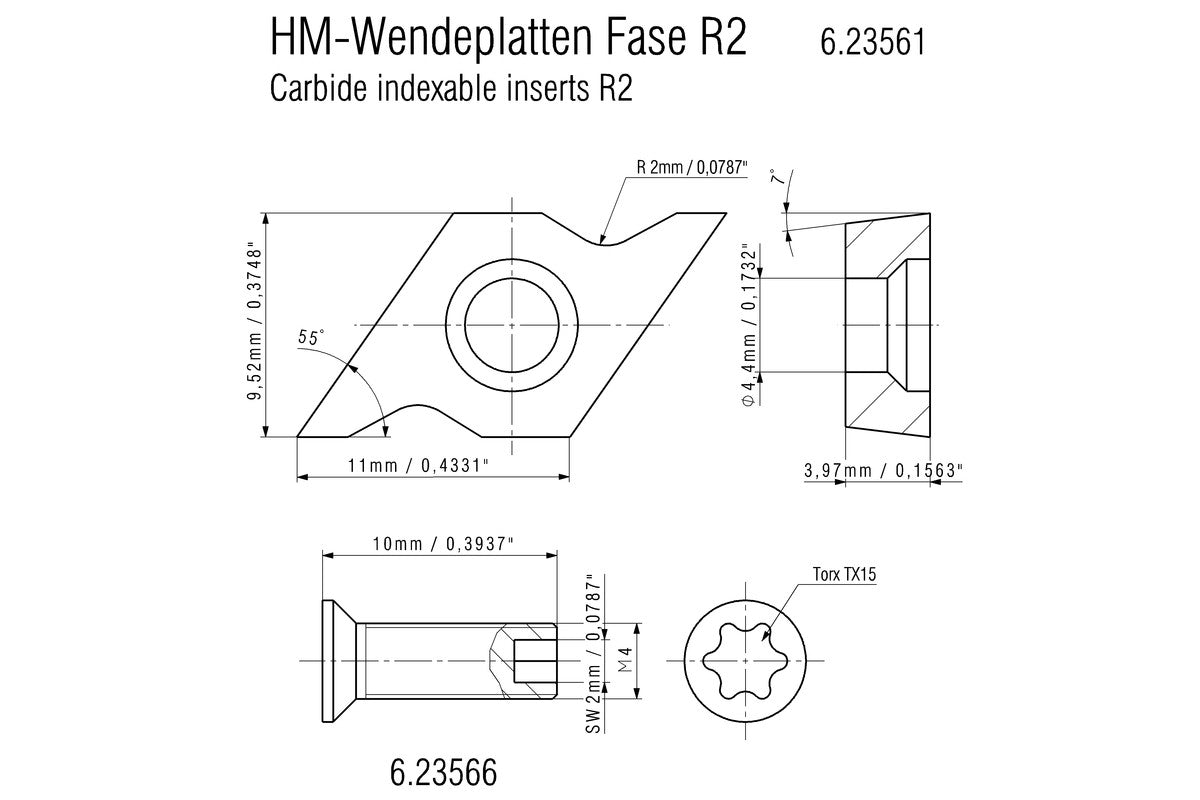

• 2 Carbide indexable inserts radius R2
• 2 Carbide indexable inserts radius R3
• Guide Stop
• Screwdriver for Torx screws 15
• Bow-type handle
• metaBOX 215
