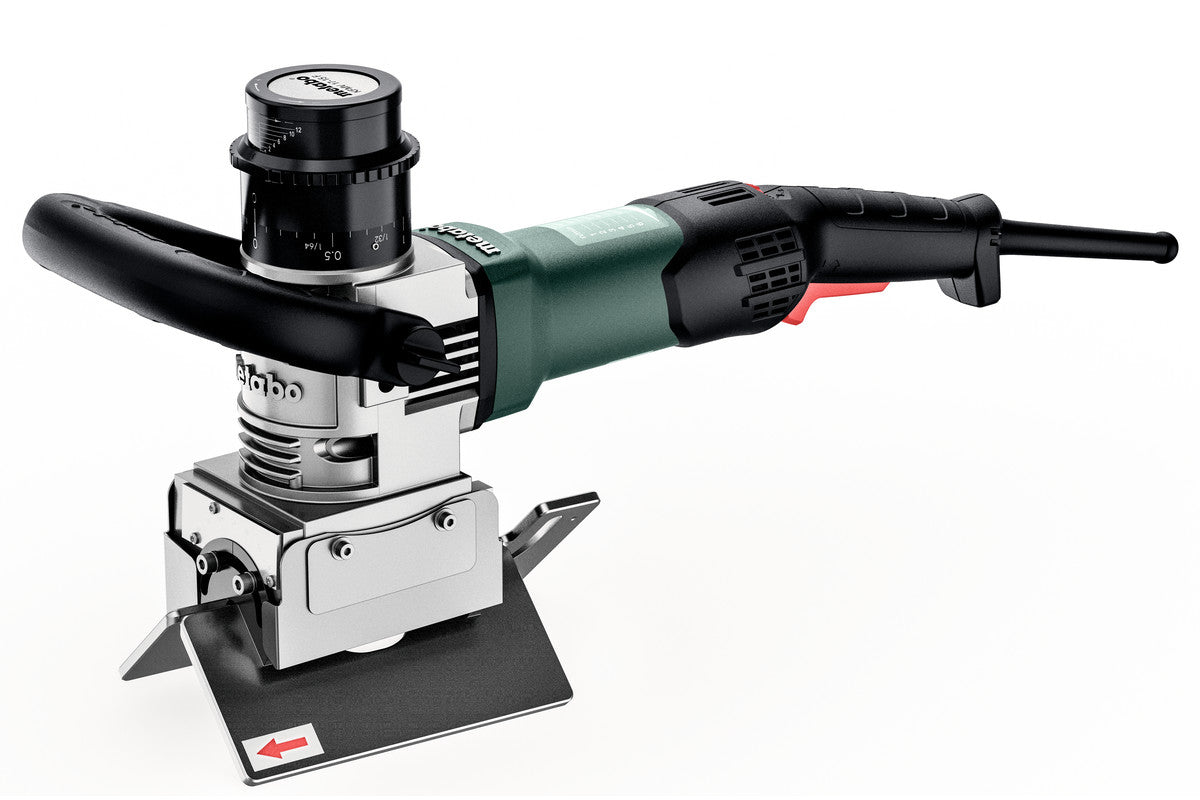

KFM 15-10 F (601752500) Bevelling tool for metal

• Metal bevelling tool for chamfer heights up to 10 mm for weld seam preparation

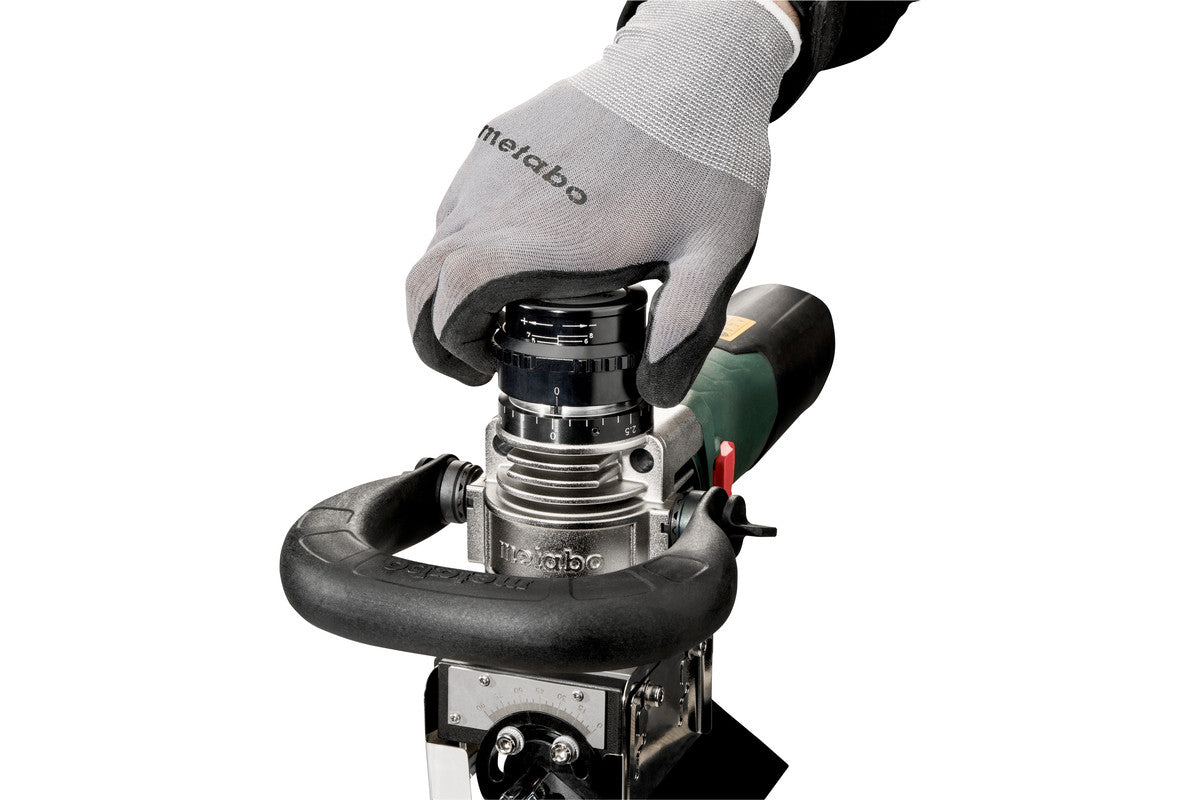

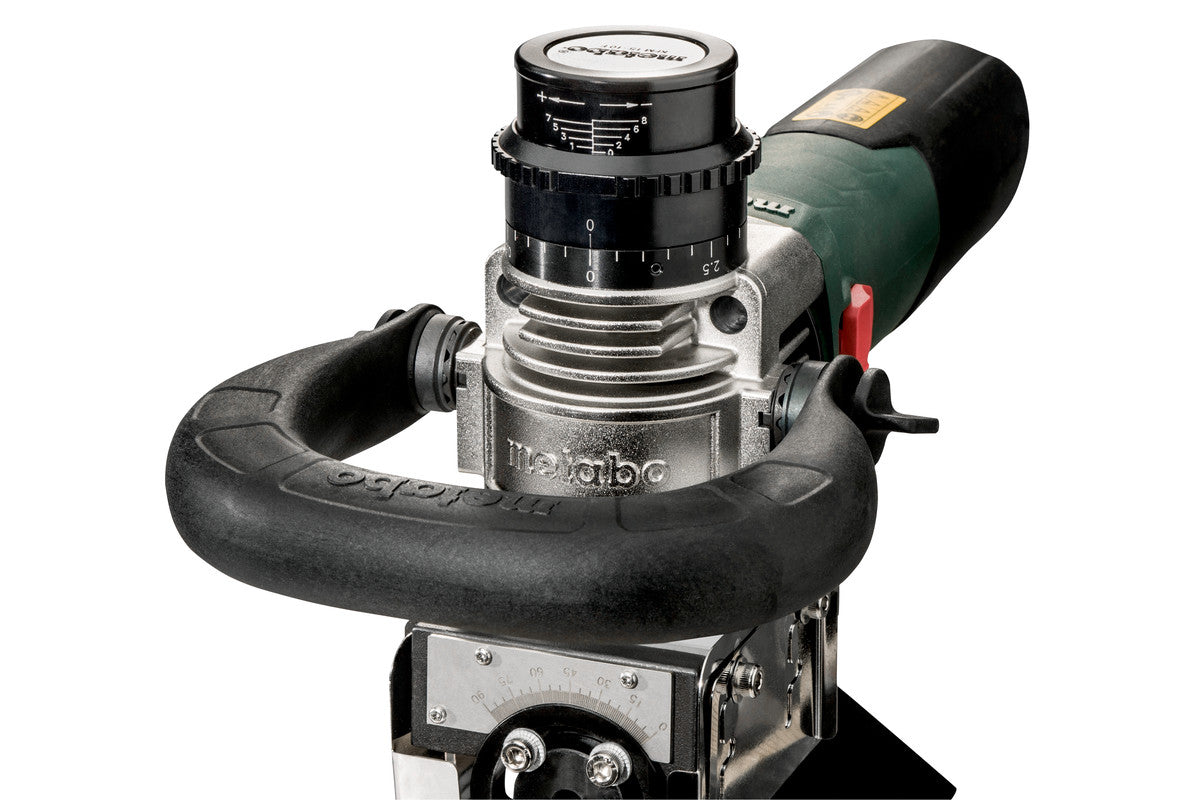

• One-touch controller: Patented, tool-free setting of the cutting depth in 0.1 steps; stop points for short setting times, and protection against unintentional adjustment of the cutting depth when working

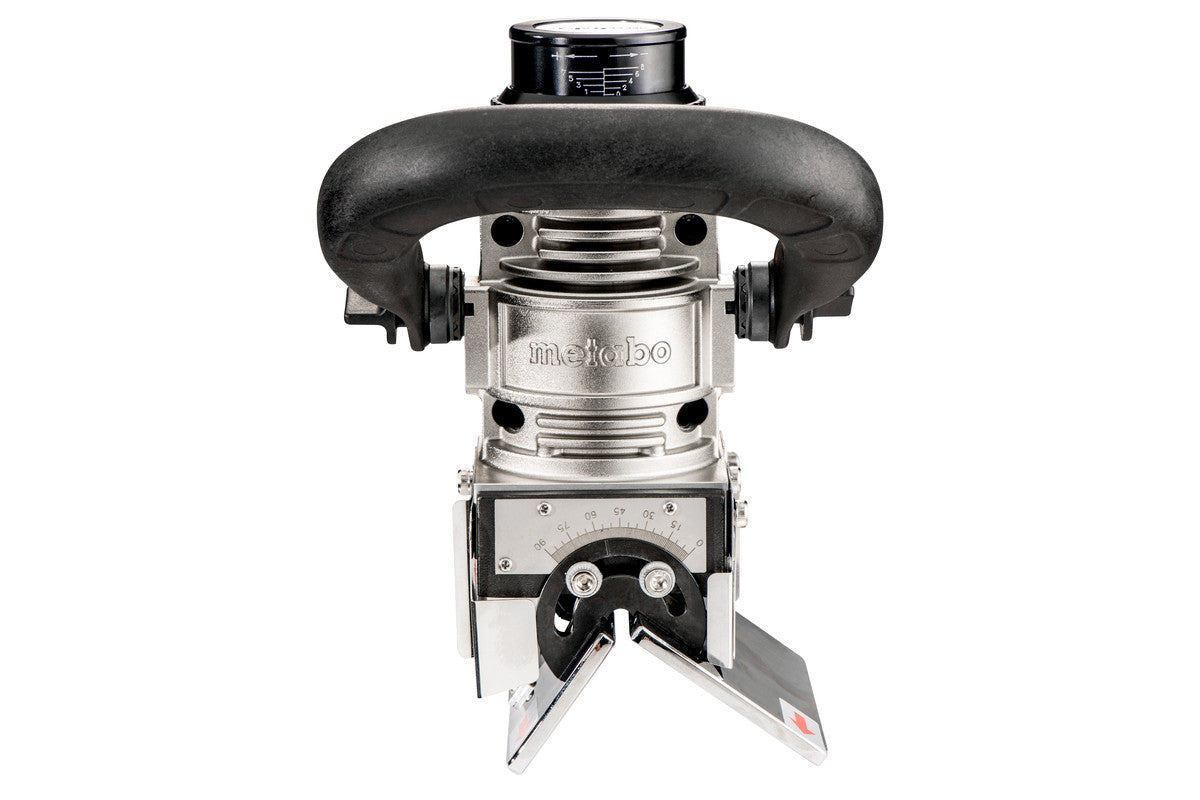

• Precise setting of the chamfer angle directly via the guide plates

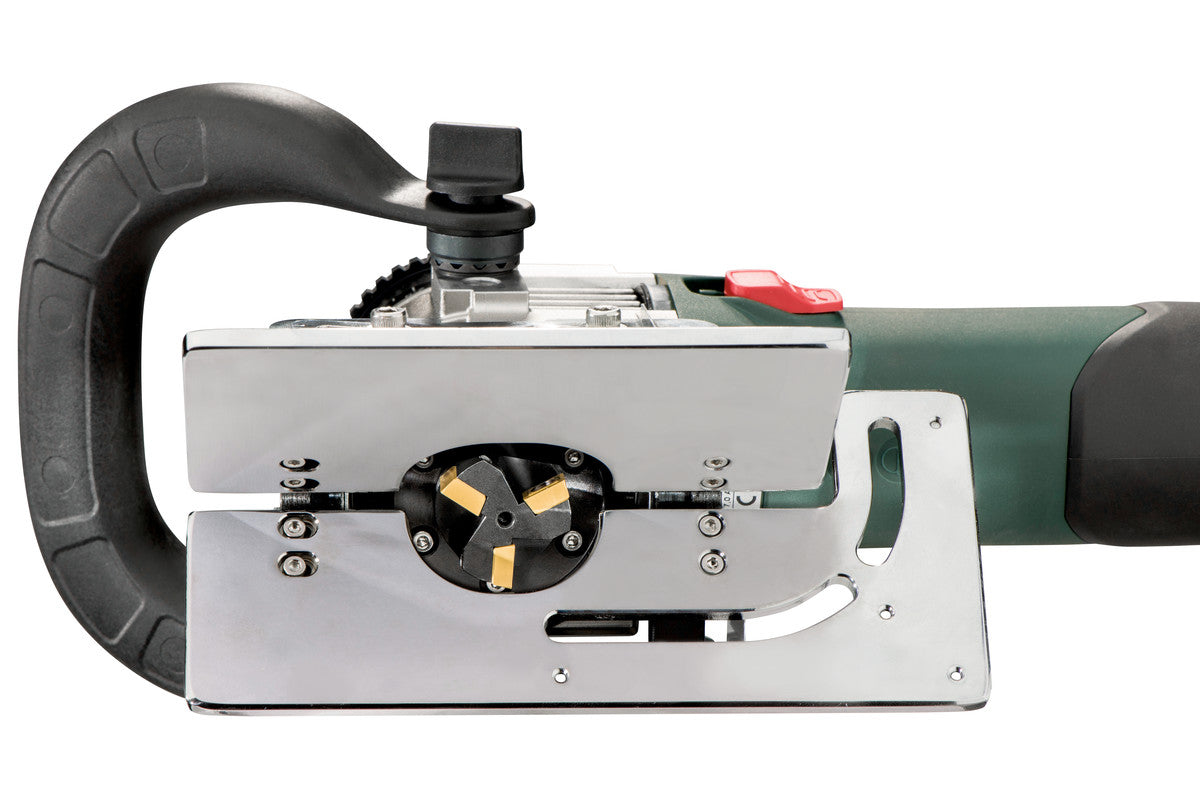

• Universal milling head with three carbide indexable inserts for all chamfer angles from 0-90°
• Controlled working by virtue of large-scale guide plates
• Stop roller to guide along pipes for easy preparation of weld seams
• Bail handle adjusts without tools for secure, even guiding
• Metabo Marathon-motor with patented dust protection for long service life
• Thumbwheel controlled Vario-Constamatic (VC)-Full wave electronics ideal for working on materials requiring customised speeds, and at speeds which remain almost constant under load
• Electronic overload protection, soft start and restart protection
• Protection of the user by virtue of lateral plates for conveying the chips
• With metaBOX, the intelligent solution for transport and storage

Technical Data

Characteristics

• No-load speed: 7800 - 12200 rpm
• Rated input power: 1500 W
• Output power: 810 W
• Type of edges: Chamfer
• Chamfer angles: 0 - 90 °
• Max. chamfer width 45°: 14 mm
• Max. chamfer height at 45°: 10 mm
• Grading of cutting depth setting: 0.1 mm
• Curves smallest outer Ø: 75 mm
• Weight (without power cable): 4.9 kg
• Cable length: 4 m

Vibration

• Vibration: 2.5 m/s²
• Uncertainty of measurement K: 1.5 m/s²

Noise emission

• Sound pressure level: 95 dB(A)
• Sound power level (LwA): 103 dB(A)
• Uncertainty of measurement K: 3 dB(A)

Scope of Delivery

• 3 Carbide indexable inserts Universal
• Stop roller
• Screwdriver for Torx screws 15
• Screwdriver SW 4 with T-handle
• Open-jawed spanner SW 10
• Bow-type handle
• metaBOX 280 L
