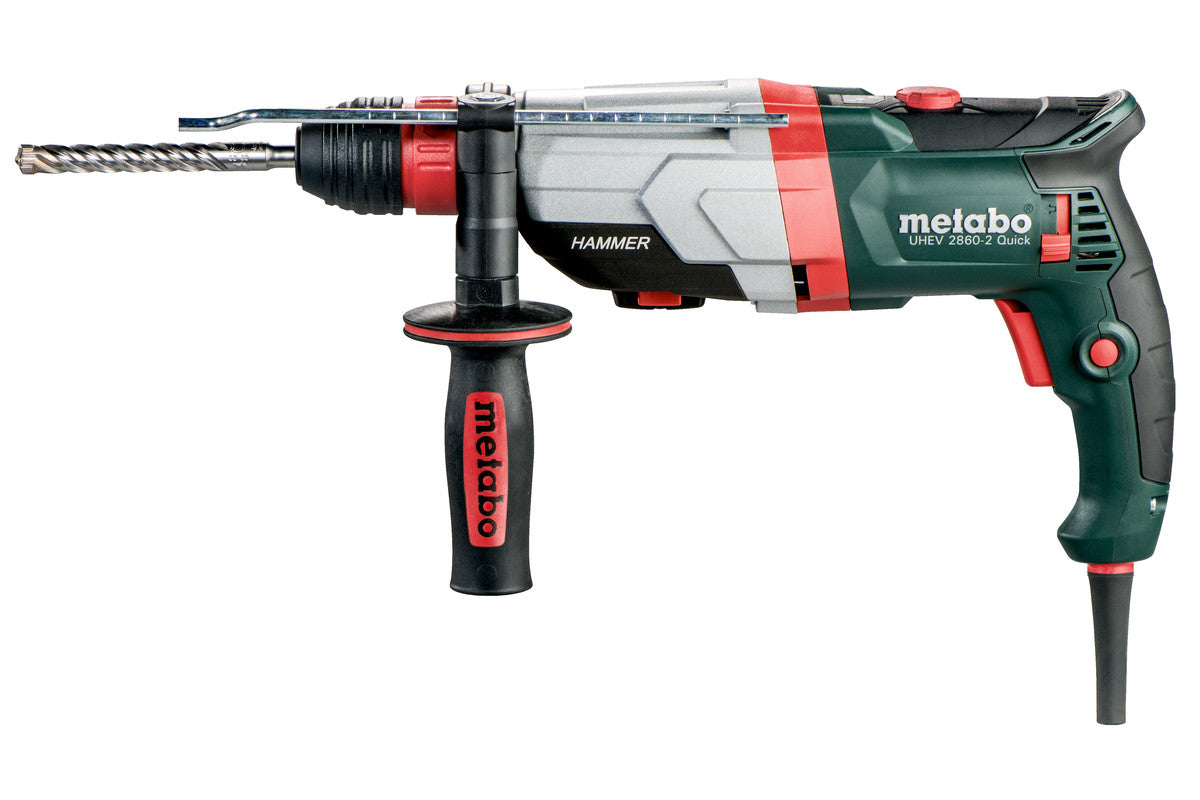

UHEV 2860-2 Quick (600713500) Multi hammer

• Multi hammer with 4 functions: hammer drilling, drilling without impact in two speeds and chiselling
• Metabo Quick: quick change between SDS Plus hammer chuck and keyless chuck for drilling in wood and metal
• Vario-Tacho-Constamatic (VTC)-Full Wave Electronics for work with materials requiring customised speeds, which remain constant under load
• Thumbwheel for preselection of the speed and impact rate
• Two-speed gear unit: two drilling speeds for effective drilling in wood and metal
• Metabo Marathon-motor with dust protection for long service life
• High performance hammer action, precisely mounted in a housing made of aluminium alloy: long-lasting and robust
• Perfect ergonomics thanks to the centre of gravity being near the hand and optimised handle contour
• Bottom switch protected against damage and dust
• Metabo S-automatic safety clutch: mechanical decoupling of the drive for safe working should the drill stop unexpectedly
• Restart protection: prevents unintentional start-up after power supply interruption
• Lockable switch for comfortable working in continuous operation
• Cable-protecting ball joint for optimal freedom of motion when working
• With metaBOX, the intelligent solution for transport and storage

Technical Data

Characteristics

• Max. single blow energy (EPTA): 3.4 J
• Maximum impact rate: 4500 bpm
• Rated input power: 1100 W
• Drill-Ø concrete with hammer drills: 28 mm
• Drill-Ø masonry with core bits: 68 mm
• Drill Ø steel: 13 / 6 mm
• Drill-Ø soft wood: 35 / 30 mm
• No-load speed: 0 - 900 / 0 - 2100 rpm
• Speed at rated load: 900 / 2100 rpm
• Tool holder: SDS-plus
• Collar diameter: 50 mm
• Weight (without power cable): 3.3 kg
• Cable length: 4 m

Vibration

• Drilling in metal: 4.3 m/s²
• Uncertainty of measurement K: 1.5 m/s²
• Hammer drilling concrete: 13.5 m/s²
• Uncertainty of measurement K: 1.5 m/s²
• Chiseling: 7.2 m/s²
• Uncertainty of measurement K: 1.5 m/s²

Noise emission

• Sound pressure level: 90 dB(A)
• Sound power level (LwA): 99 dB(A)
• Uncertainty of measurement K: 3 dB(A)

Scope of Delivery

• Hammer chuck for tools with SDS-plus shank end
• Keyless chuck for tools with cylindrical shank
• rubber-coated side handle
• Drilling depth guide
• metaBOX 145 L
