STEB 100 Quick (601110500) Jigsaw

• Universal jigsaw with bow-type handle for precise guidance while sawing
• Precise and material-matched sawing due to the variable stroke rate, pendulum stroke and low-lying saw blade guidance with spring support
• Metabo Quick for tool-free saw blade change and with automatic ejection
• Top handle with non-slip soft-grip surface
• Selectable chip blowing function ensures free view of cutting line
• Vario-Tacho-Constamatic (VTC)-Full Wave Electronics for work with materials requiring customised stroke rates, which remain almost constant under load

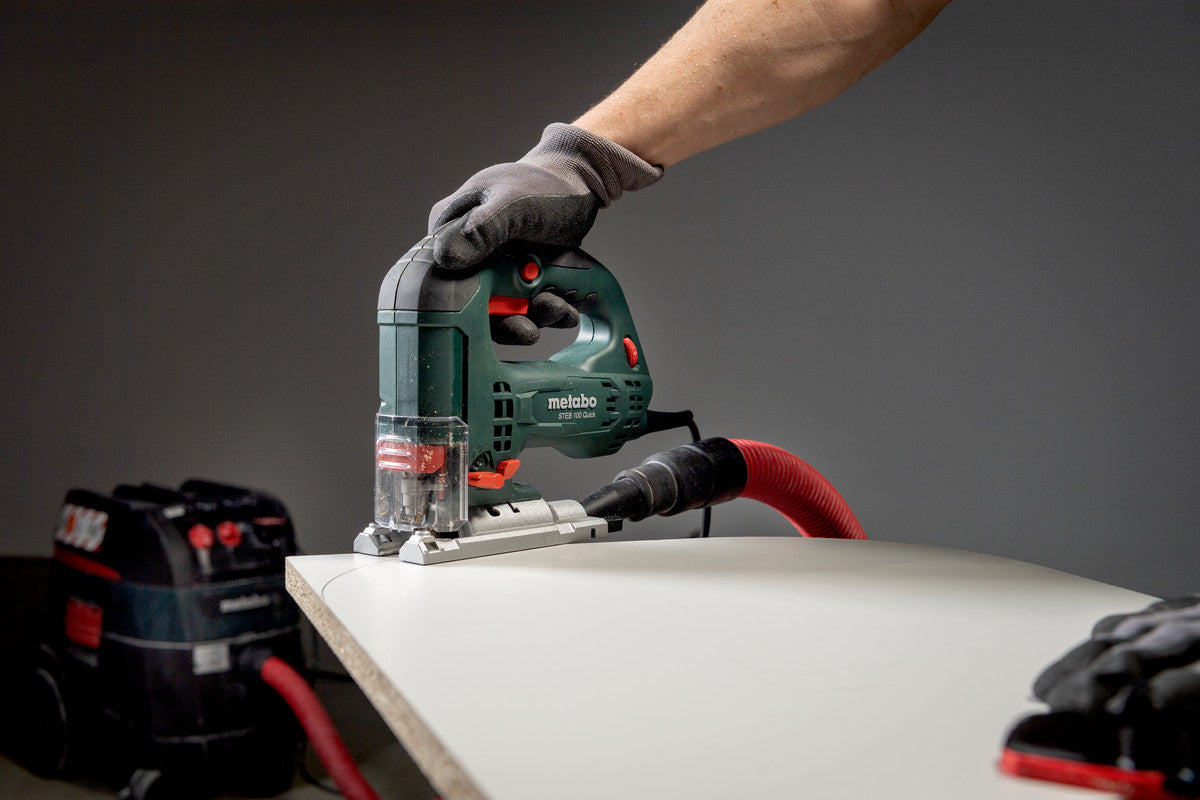

• Extraction possibility by means of connecting an all-purpose vacuum cleaner
• Non-detachable protective glass that can be pushed down for effective extraction and for protection against flying chips
• Precision guide rail and guiding device available as accessory

Technical Data

Characteristics

• Rated input power: 710 W
• Output power: 470 W
• Cutting depth wood: 100 mm
• Cutting depth NF metal: 25 mm
• Cutting depth sheet steel: 10 mm
• Swivel range from / to:: - 45 / + 45 °
• Pendulum stroke levels: 4
• Strokes in idle: 1000 - 3100 rpm
• Saw blade stroke: 22 mm
• Weight (without power cable): 2.1 kg
• Cable length: 4 m

Vibration

• Sawing wood: 13 m/s²
• Uncertainty of measurement K: 1.5 m/s²
• Sawing metal: 13.7 m/s²
• Uncertainty of measurement K: 1.5 m/s²

Noise emission

• Sound pressure level: 89 dB(A)
• Sound power level (LwA): 97 dB(A)
• Uncertainty of measurement K: 5 dB(A)

Scope of Delivery

• Extraction Nozzles
• Protective glass
• Chip Guard Plates
• Jigsaw blade wood
• Hexagonal wrench
