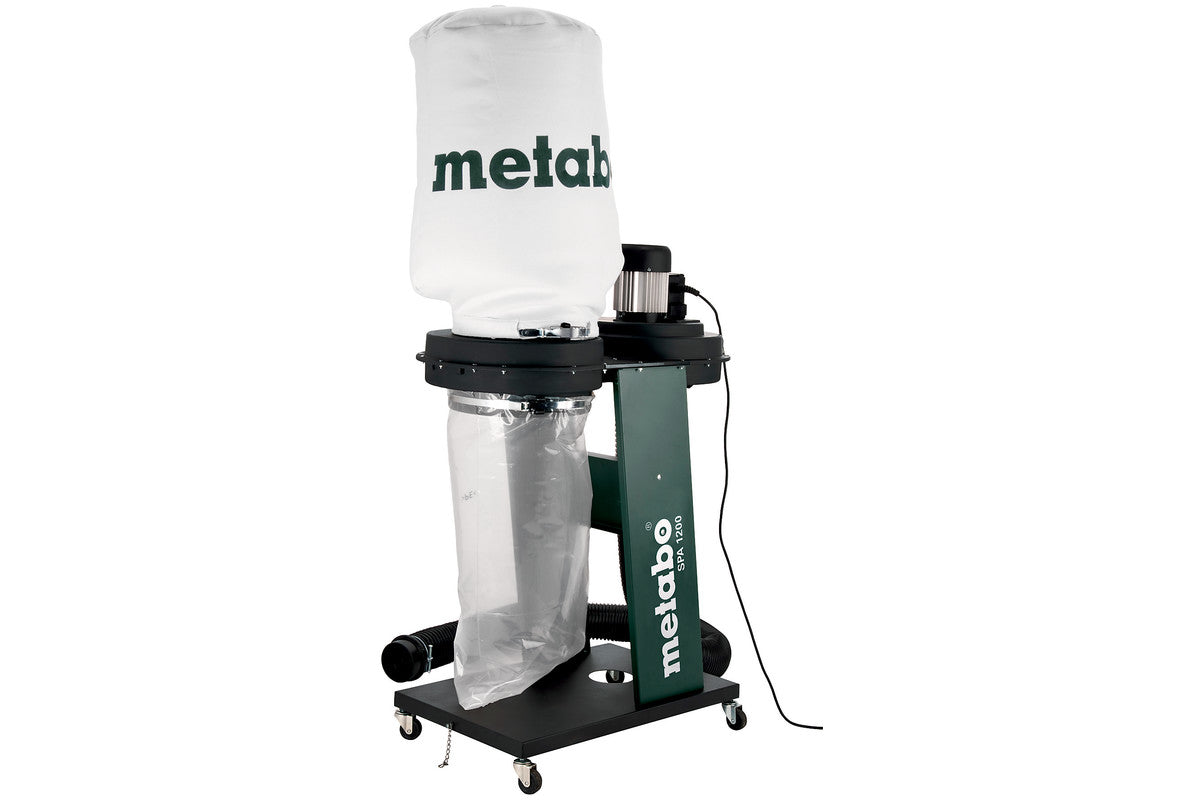

SPA 1200 (601205000) Chip and dust extraction unit

• Raw air extraction device for (semi) stationary wood processing machines (observe country-specific regulations!)
• Significantly reduces dust content
• Filter material of dust class L
• Integrated grounding as protection from electrostatic charge
• Quick change of the application location by means of wheeled unit and simple connection
• Stable stand with supported chip collection bag
• Comprehensive range of accessories: automatic switch-on devices, filter cartridges, hoses and adapters

Technical Data

Characteristics

• Dimensions: 830 x 450 x 1600 mm
• Maximum vacuum: 1600 Pa
• Maximum volume flow: 900 m³/h
• Filter surface: 1 m²
• Hose connection Ø: 100 mm
• Chip bag capacity: 65 l
• Mains voltage: 220 - 240 V
• Rated input power: 0.55 kW
• Weight: 22 kg
• Cable length: 3 m

Noise emission

• Sound pressure level: 85 dB(A)
• Sound power level (LwA): 98 dB(A)
• Uncertainty of measurement K: 3 dB(A)

Scope of Delivery

• Suction hose 100 x 2500 mm
• Filter bag made of needle felt
• Chip Collection Bag
