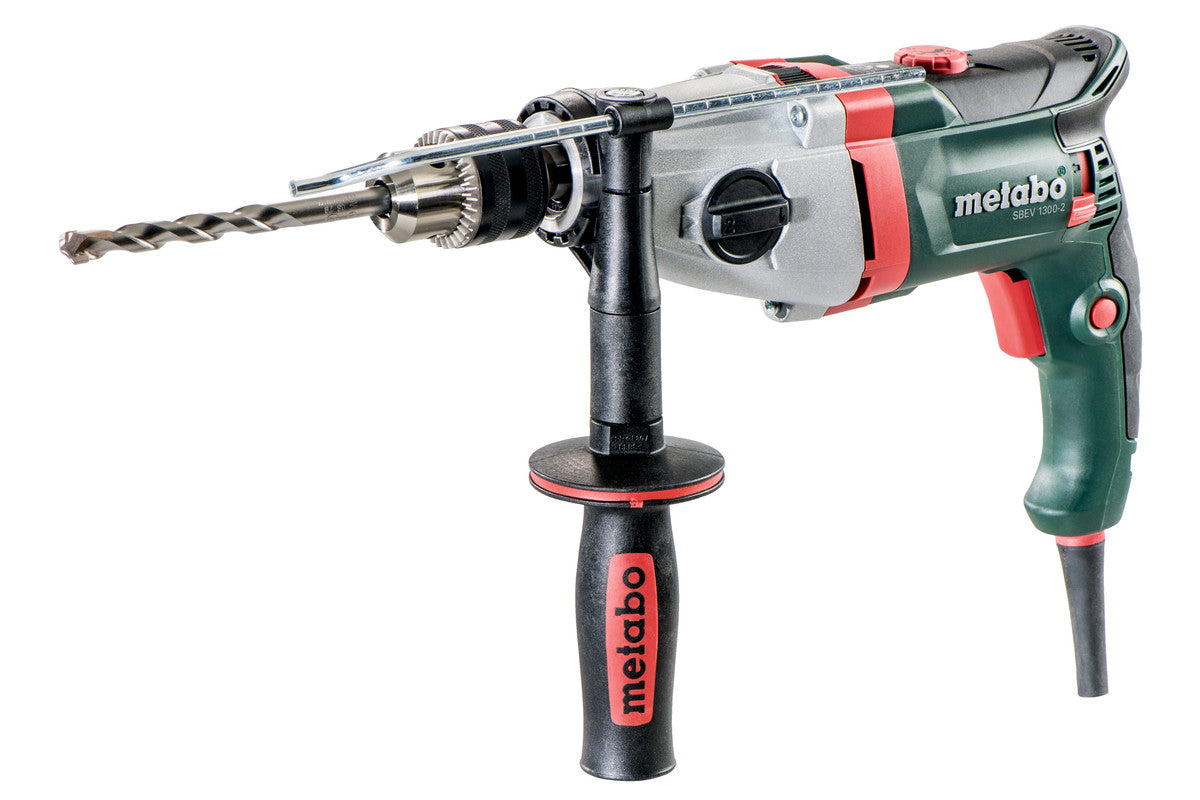

SBEV 1300-2 (600785000) Impact drill

• Extremely powerful two-speed impact drill for fast, versatile drilling with constant speed under load
• Vario-Tacho-Constamatic (VTC)-Full Wave Electronics for work with materials requiring customised speeds, which remain constant under load
• Thumbwheel for Speed Preselection
• Selectable "impuls" mode for removal of stubborn screws and for spot-drilling on smooth surfaces
• Robust die cast aluminium gear housing for optimum heat dissipation and long service life
• Rotating carbon brush bridge for maximum performance even in anti-clockwise operation, e.g. for the removal of stubborn screws
• Metabo Marathon-motor with dust protection for long service life
• Metabo S-automatic safety clutch: mechanical decoupling of the drive for safe working should the tool stop unexpectedly
• Forward and reverse rotation
• Spindle with hexagonal recess for screwdriver bits for working without chuck
• Overload protection: protects the motor from overheating
• Restart protection: prevents unintentional start-up after power supply interruption
• Cable-protecting ball joint for optimal freedom of motion when working
• Wear Indication for Carbon Brush

Technical Data

Characteristics

• Rated input power: 1300 W
• Output power: 730 W
• Maximum torque: 44 / 16 Nm
• Drill-Ø masonry: 24 mm
• Drill-Ø concrete: 22 mm
• Drill Ø steel: 16 / 10 mm
• Drill-Ø soft wood: 40 / 25 mm
• No-load speed: 0 - 1100 / 0 - 3100 rpm
• Speed at rated load: 1100 / 3100 rpm
• Maximum impact rate: 58900 bpm
• Gears: 2
• Chuck capacity: 1.5 - 13 mm
• Collar diameter: 43 mm
• Drill spindle with hexagonal recess: 6.35 mm
• Drill spindle thread: 1/2 " - 20 UNF
• Chuck clamping type: Geared Chucks
• Weight (without power cable): 2.8 kg
• Cable length: 4 m

Vibration

• Drilling in metal: 4.2 m/s²
• Uncertainty of measurement K: 1.5 m/s²
• Impact drilling concrete: 17 m/s²
• Uncertainty of measurement K: 1.5 m/s²

Noise emission

• Sound pressure level: 106 dB(A)
• Sound power level (LwA): 114 dB(A)
• Uncertainty of measurement K: 3 dB(A)

Scope of Delivery

• Geared Chucks
• Chuck Keys
• rubber-coated side handle
• Drilling depth guide
