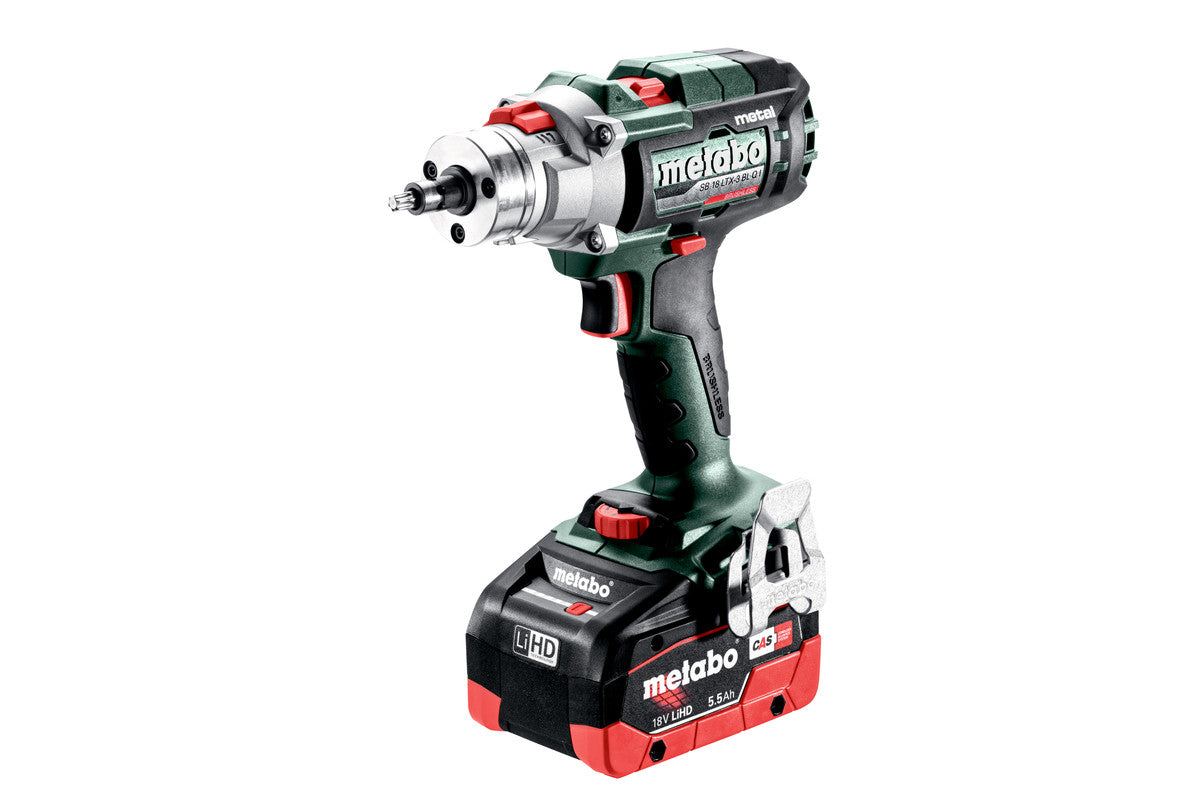

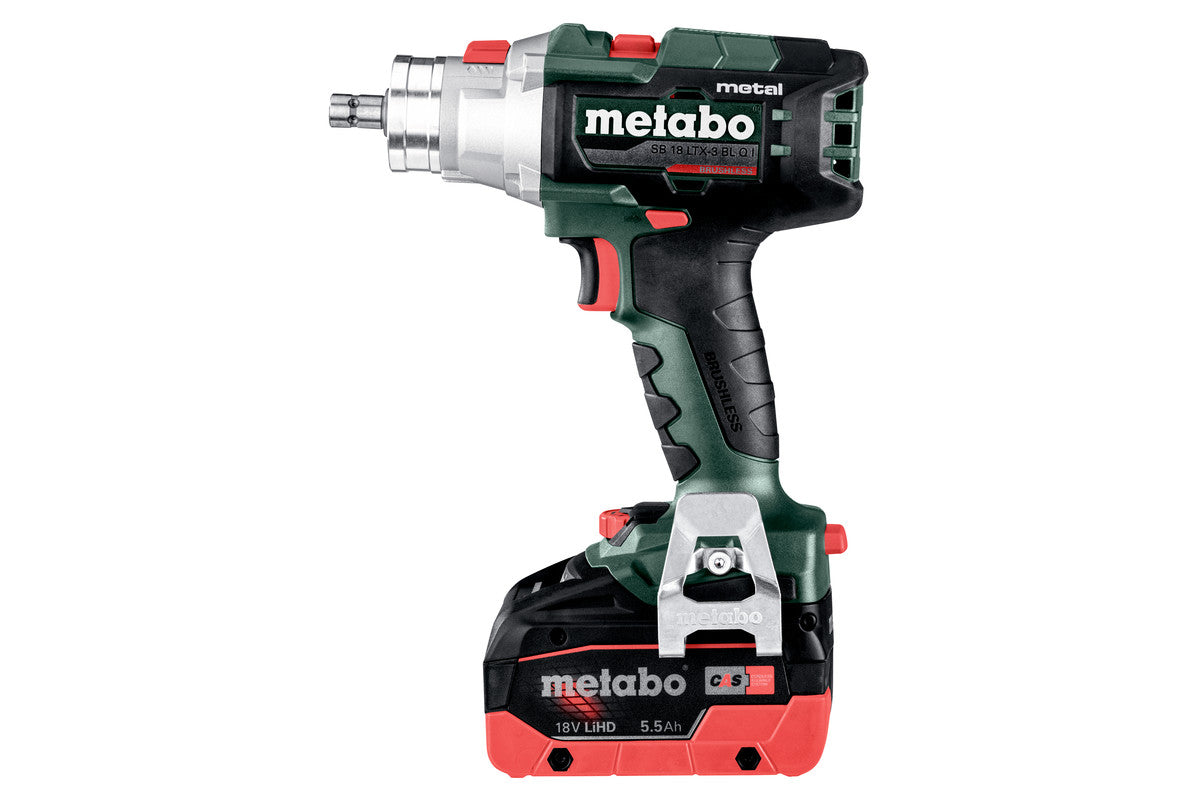

SB 18 LTX-3 BL Q I Metal (603182660) Cordless combi drill

• The metal expert: brushless 3-speed cordless combi drill with maximum power and automatically re-tightening chuck
• Extremely powerful chuck with re-tensioning function against slipping of the bit and high degree of concentricity
• Third speed setting with high torque (max. 4,000/min) for extended range of application and even faster drilling progress, especially in metal
• Hammer drill function for drilling in masonry

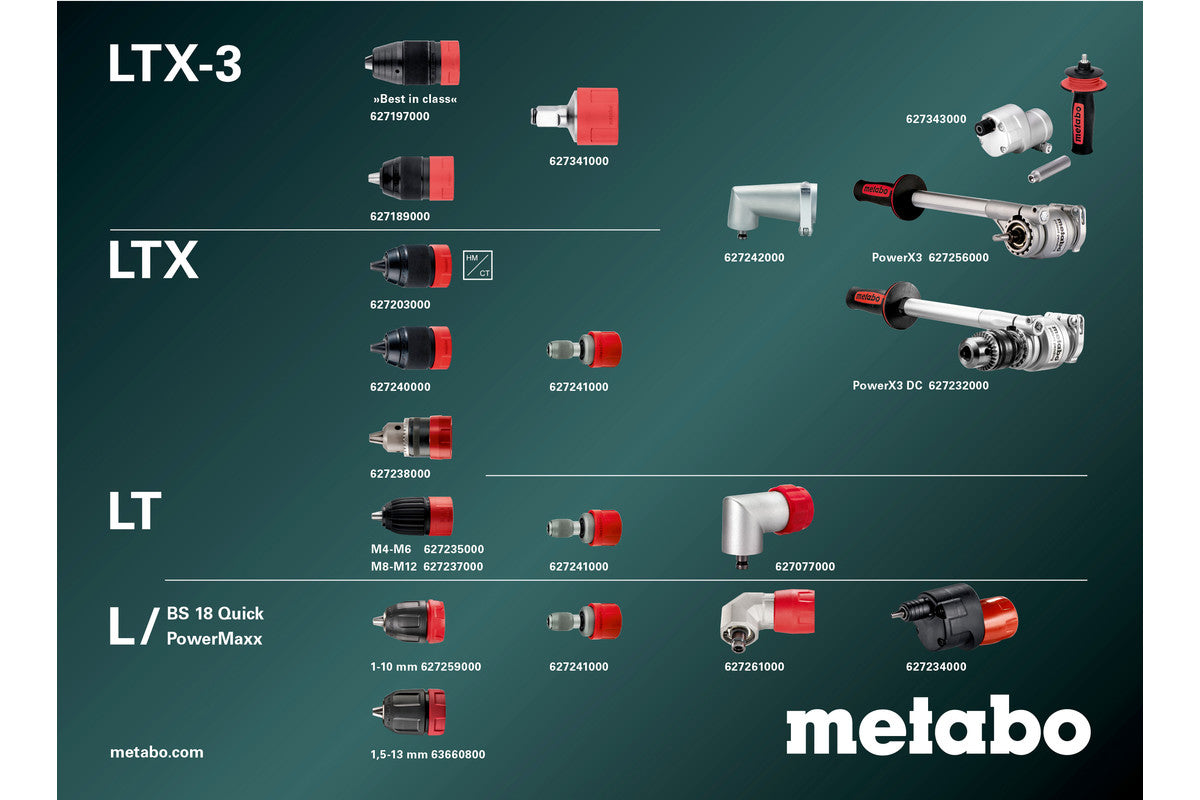

• Metabo QuickPlus System for heavy-duty use: Quick-change of chuck, bit holder, angle adapter, and more for flexible working
• Selectable "impuls" mode for removal of stubborn screws and for spot-drilling on smooth surfaces
• Robust, durable gear housing made from aluminium die-cast
• Spindle with magnetic hexagon recess for screwdriver bits for working without chuck
• Powerful Brushless motor for greatest efficiency and long battery pack runtime
• Precision Stop: electronic torque control with increased precision for precise, delicate working
• Overload protection: protects the motor from overheating
• Euro collar (Ø 43 mm) for versatile use
• Electronic safety shutdown: no kickback if the drill bit stops unexpectedly - for high user safety
• Integrated LED work light with afterglow function for optimal brightness in the work area
• With handy belt hook and bit case which can be fixed either on the right or left side
• With metaBOX, the intelligent solution for transport and storage
• Many brands, one battery pack system: This product can be combined with all 18V battery packs and chargers of the CAS brands: www.cordless-alliance-systems.com

Technical Data

Characteristics

• Type of battery pack: LiHD
• Battery voltage: 18 V
• Battery pack capacity: 2 x 5.5 Ah
• Maximum torque, soft: 65 Nm
• Maximum torque, hard: 130 Nm
• Adjustable torque: 1 - 18 Nm
• Drill-Ø masonry: 16 mm
• Drill Ø steel: 16 mm
• Drill-Ø soft wood: 68 mm
• No-load speed: 0 - 450 / 0 - 2000 / 0 - 4000 rpm
• Maximum impact rate: 38000 bpm
• Chuck capacity: 1.5 - 13 mm
• Collar diameter: 43 mm
• Weight without battery pack: 2.1 kg
• Weight with battery pack: 3.1 kg

Vibration

• Drilling in metal: 3 m/s²
• Uncertainty of measurement K: 1.5 m/s²
• Impact drilling concrete: 25 m/s²
• Uncertainty of measurement K: 1.5 m/s²

Noise emission

• Sound pressure level: 101 dB(A)
• Sound power level (LwA): 109 dB(A)
• Uncertainty of measurement K: 3 dB(A)

Scope of Delivery

• Futuro Top quick-change chuck "QuickPlus"
• Side handle
• C-wrench
• 2 LiHD battery packs (18 V/5.5 Ah)
• Quick charger ASC 145 "AIR COOLED"
• metaBOX 145 L
