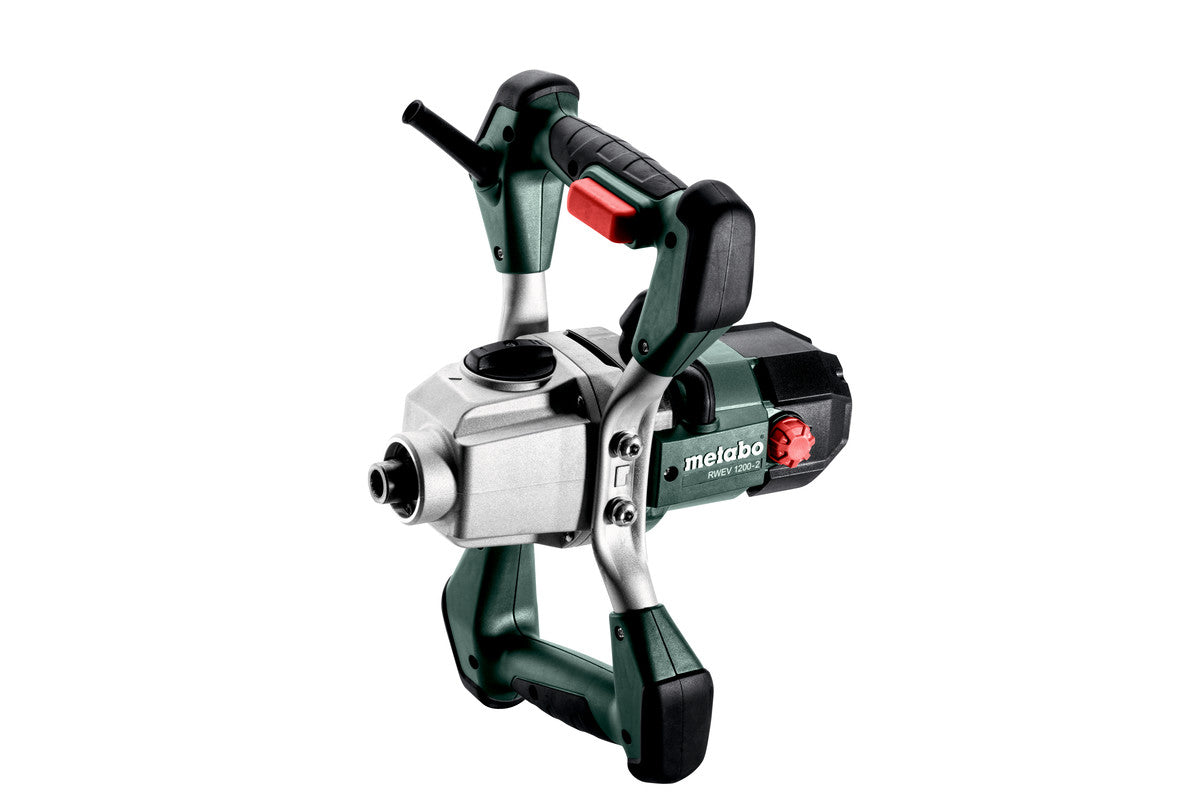

RWEV 1200-2 (614049000) Stirrer

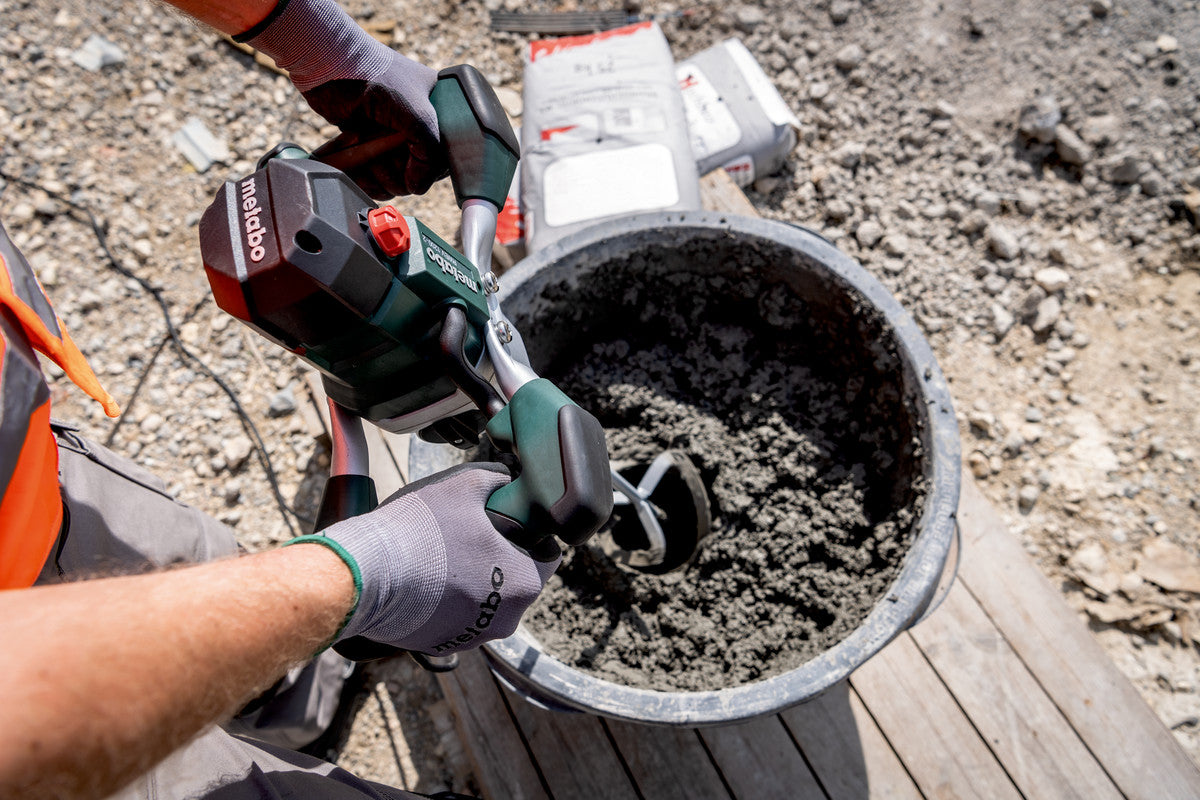

• Universal two-speed stirrer for comfortable stirring and mixing up to 50 litres
• Minor effort to guide the stirrer thanks to ergonomically favourable handle position
• Rubber corners at the housing for effective protection from damage, safe storage and non-slip leaning against a wall
• The side cable exit reduces the risk of a cable break
• High torque thanks to two-speed gear for viscous materials
• Robust die cast aluminium gear housing for optimum heat dissipation and durability
• Splash-water proof motor cover to protect against dirt, mud and splash water
• Electronic soft start for splash-free working
• Vario-Tacho-Constamatic (VTC)-Full Wave Electronics for work with materials requiring customised speeds, which remain constant under load
• Thumbwheel for speed preselection

Technical Data

Characteristics

• Rated input power: 1200 W
• Output power: 600 W
• No-load speed: 0 - 300 / 0 - 650 rpm
• Gears: 2
• Maximum stirring paddle diameter: 140 mm
• Max. recommended mixing amount: 50 l
• Tool holder: Female thread M 14
• Collar diameter: 50 mm
• Weight (without power cable): 4.3 kg
• Cable length: 4 m

Vibration

• Vibration: 3.47 m/s²
• Uncertainty of measurement K: 1.5 m/s²

Noise emission

• Sound pressure level: 88 dB(A)
• Sound power level (LwA): 96 dB(A)
• Uncertainty of measurement K: 3 dB(A)

Scope of Delivery

• Stirrer paddle RS-R3 (Ø 140 mm)
• Extension 200 mm
• Open-jawed spanner
