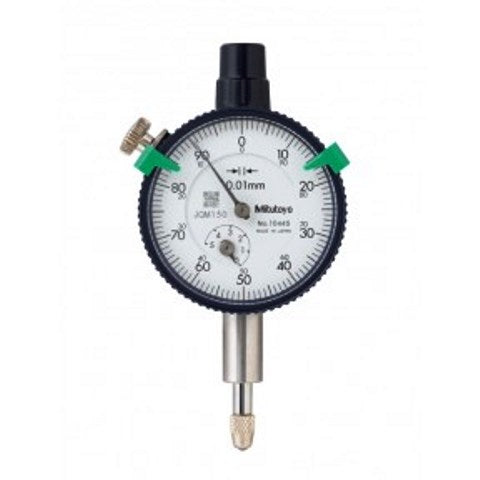

MIT DIAL GAUGE 5X0.01 BEZEL=40MM 1044S

Mitutoyo 1044S

Dial Indicator, 8mm Stem thread M2.5 x .45, With Lug Back, Dial reading 0-100 , Face 40mm Diameter, Range 5mm, Graduation 0.01mm , Accuracy +/-0.013mm Force 1.4N

Stem Diameter (C) 8mm/.32"

Series 1 Face Diameter 40mm

Indicator type Plunger

Range Per Rev 1mm

Measurement units Metric

Repeatability of Indicator .005mm

Indicator Scale Type Continuous Reading Metric

Measuring Force 1.4N Indicator Range 5mm

Accuracy .013mm Graduation .01mm

Scale 0-100 Scale Reading 0-100

Repeatability .005mm Force 1.4N or less

Display Type Non-digital

Back Lug Contact Point Thread M2.5x.45

Dial Reading Lever 0-100

Remarks for Indicators with Lug back

Features for Indicators

Small diameter model for applications where space is limited. Hardened stainless steel plunger for durability. Rack gear is machine ground for a tighter fit and increased accuracy.
