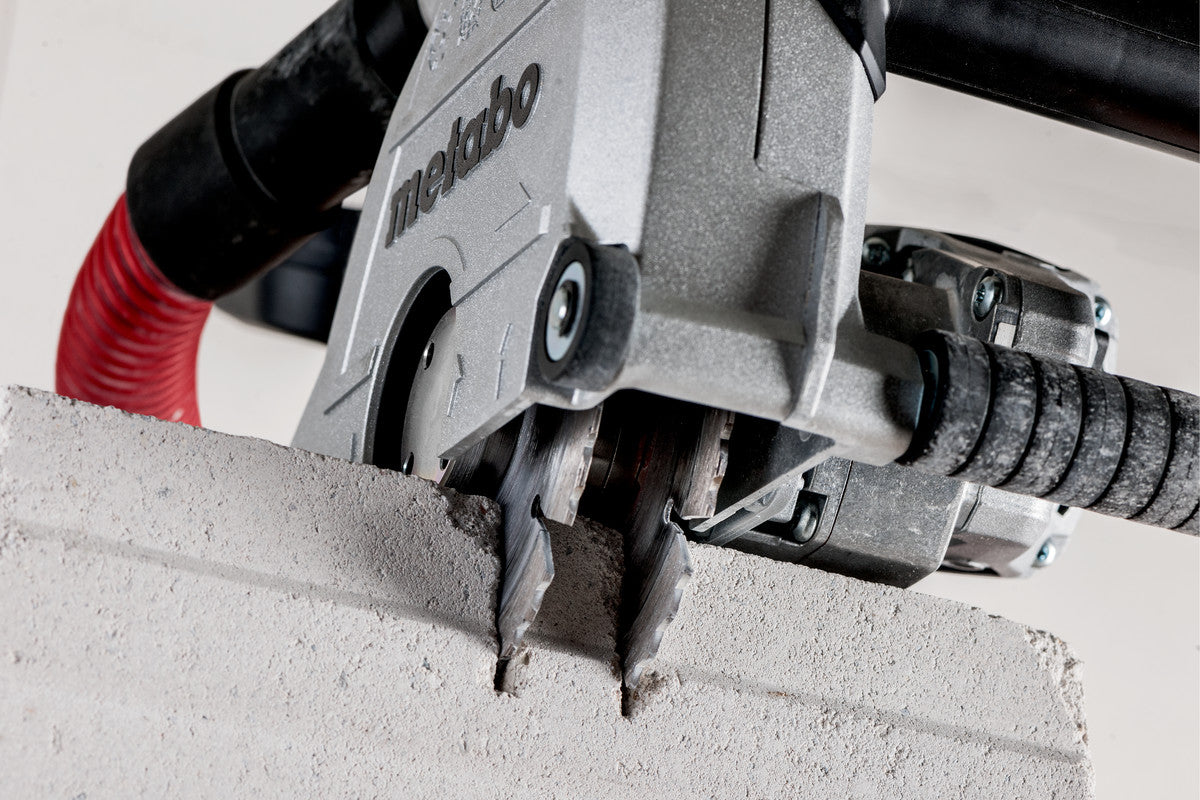

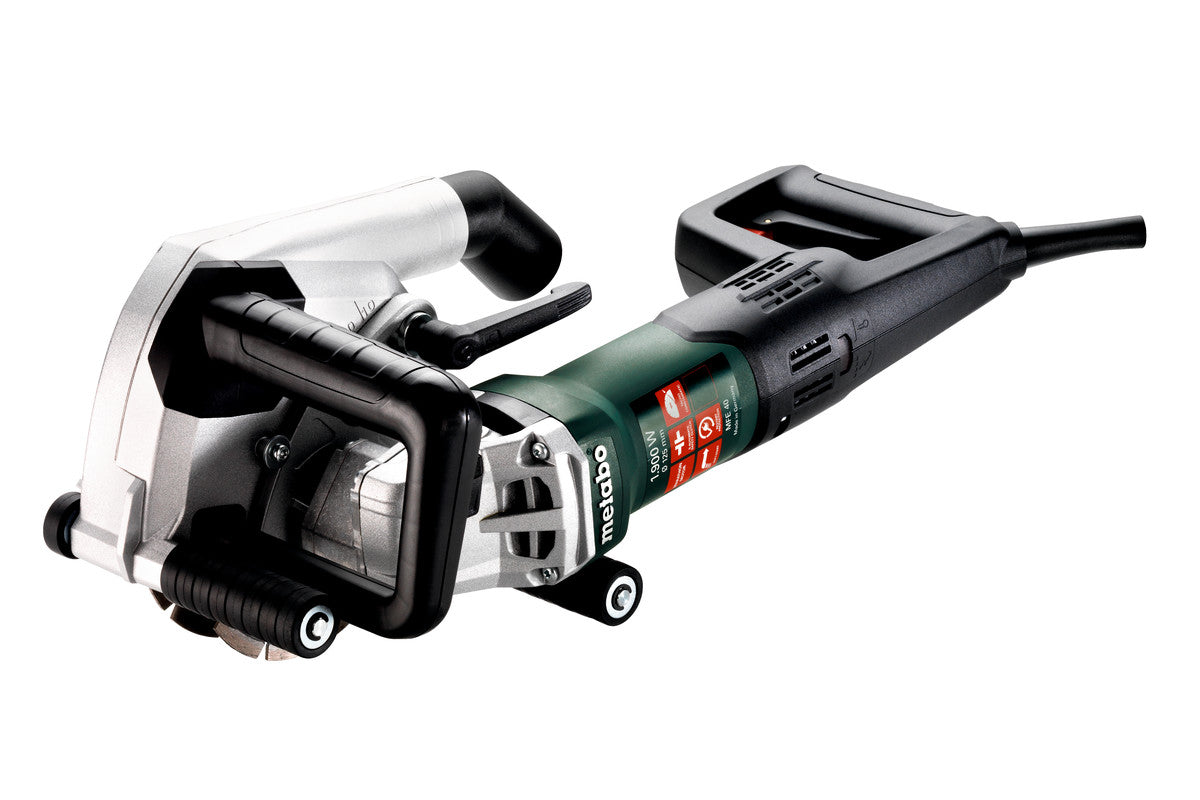

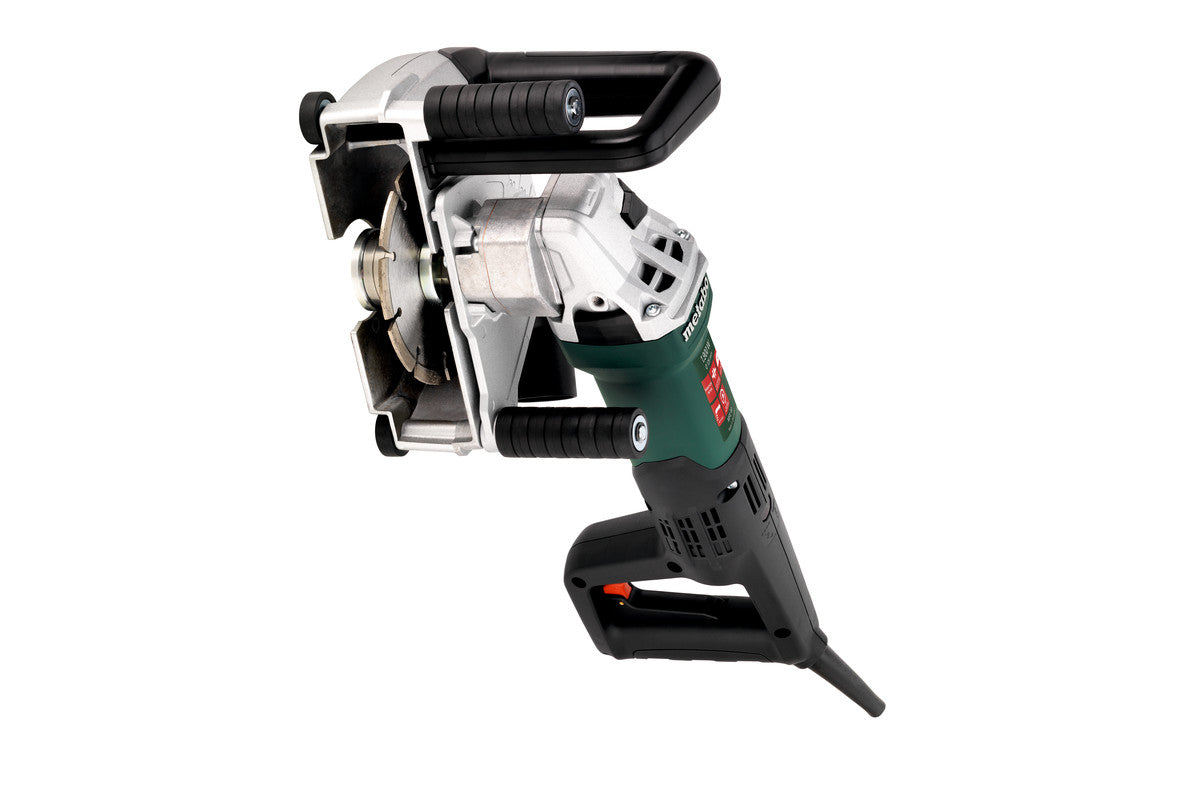

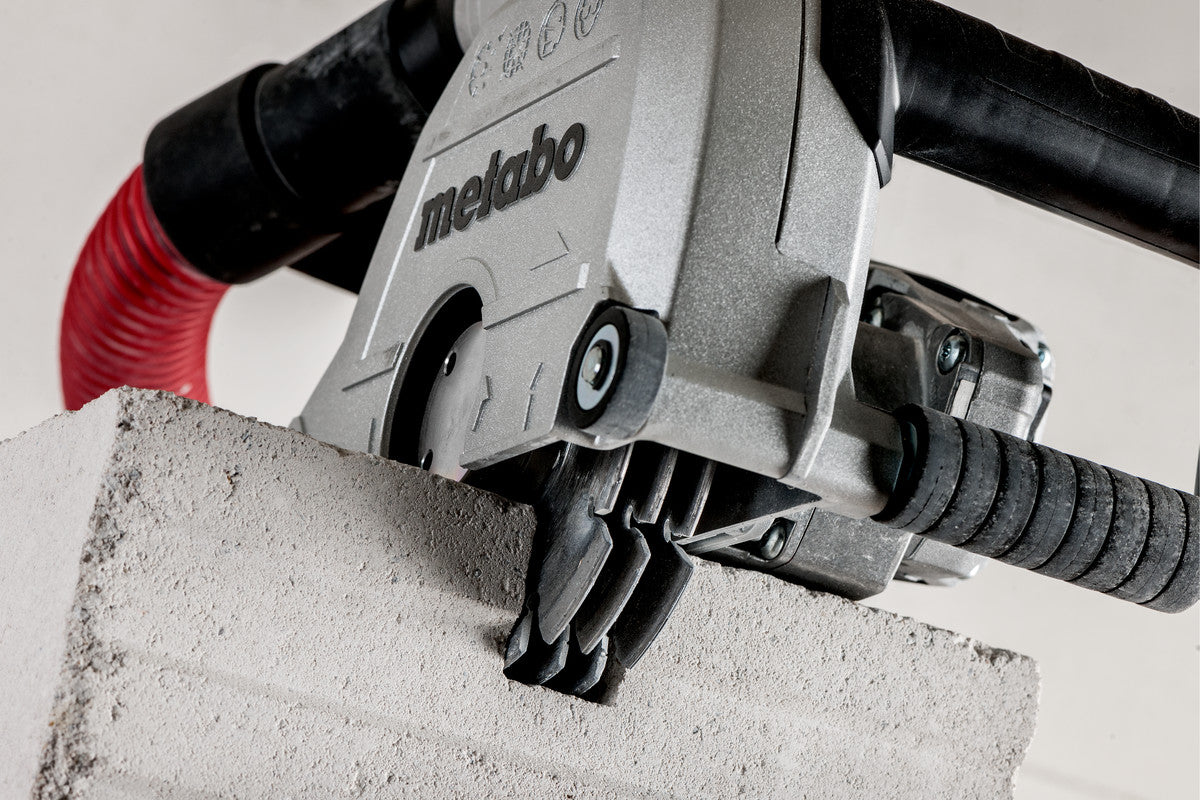

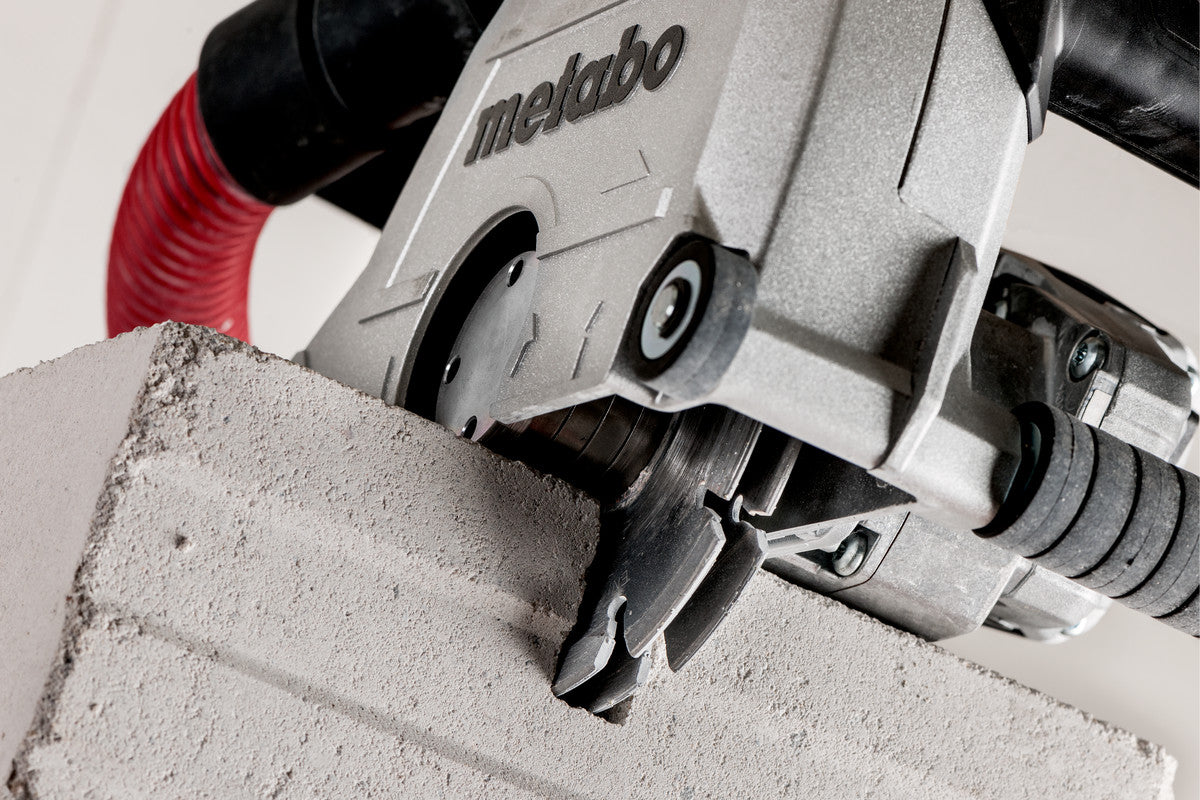

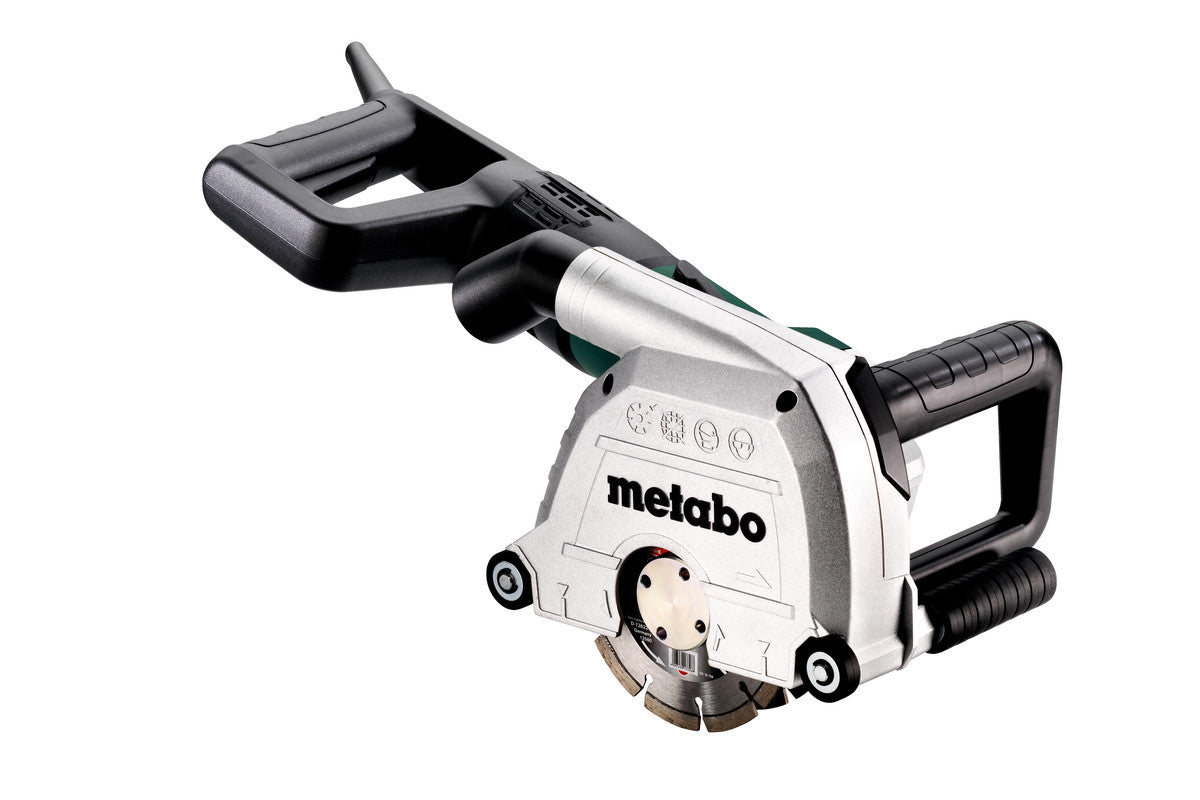

MFE 40 (604040500) Wall chaser

• Ideal for electric installations to lay cables and pipework under plaster with cutting depths up to 40 mm
• Maximum work progress by means of powerful motor, constant speed and two-speed high-performance gear
• Robust aluminium die-cast hood with rubber rollers and optimal handle position for comfortable guidance of the machine
• Push cut for optimal view of the marking line
• Channel width and cutting depth can be set
• Metabo Marathon motor with patented dust protection for long service life
• Tacho-Constamatic (TC)-Full Wave Electronics: fast work progress by means of constant speed under load
• Electronic soft start and restart protection for safe working
• LED signal informs about overload or active restart protection
• Clean, low-dust working by means of connecting a Metabo all-purpose vacuum cleaner (certified with ASR 35 M ACP)
• Suitable for slitting grooves up to a width of 30 mm without centre in one workstep (with special accessories)
• Also suitable for cutting with only one diamond cutting disc
• Metabo S-automatic safety clutch: mechanical decoupling of the drive for safe working should the disc stop unexpectedly

Technical Data

Characteristics

• Adjustable cutting depth: 10 - 40 mm
• Possible groove widths: 9 / 15.5 / 22 / 28.5 / 35 mm
• Cutting disc Ø: 125 mm
• Rated input power: 1900 W
• Output power: 1120 W
• No-load speed: 5000 rpm
• Speed at rated load: 4200 rpm
• Torque: 6 Nm
• Weight (without power cable): 4.6 kg
• Cable length: 4 m

Vibration

• Vibration: 5.5 m/s²
• Uncertainty of measurement K: 1.5 m/s²

Noise emission

• Sound pressure level: 96 dB(A)
• Sound power level (LwA): 104 dB(A)
• Uncertainty of measurement K: 3 dB(A)

Scope of Delivery

• Spacer Rings
• 2 Diamond cutting discs
• Flange nut
• Face pin wrench
• Chase chisel
• Plastic carry case
