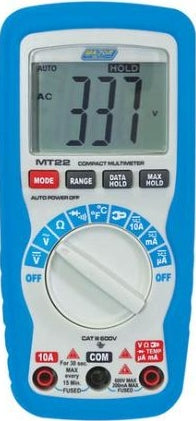

Major Tech Compact Multimeter (MT22)

The MT22 is a compact meter with double moulded rubber housing and meets the International Standard IEC-61010-1 CAT lll 600V. The large LCD display screen has a white backlight for use in arduous areas. It is a very economical tester ideally suited for everyday use by electricians, electronic technicians as well as the air conditioning industry. This compact auto ranging mulitmeter has a large 2000 count LCD and measures AC and DC voltage up to 1000 volts, AC and DC Current up to 10 Amps, Temperature measurement in °C or °F and resistance, plus a diode test function and continuity buzzer. The meter has a “Clamp-On Adaptor” range which allows the user to use an optional AC and DC clamp adaptor on the meter to increase the current measuring capabilities up to 2000 Amps. Other features include auto power off .

Features :

Measures ACV and DCV to 1000V

MIN/MAX Recordings

Temperature between 50°C to 1000°C

Fused 10A Range

Diode Test & Continuity buzzer

Data Hold

Duty Cycle

Resistance measurement

2000 Count LCD

Full Ranges Protection

Overmould rubber housing

Integrated test lead holder

Clamp-on Adaptor range

CAT III 600V and CAT II 1000V

Specifications:

DC Voltage: 1000V

DC Voltage resolution: 0.1mV

DC Voltage accuracy: ±( 1.2%+2 )

AC Voltage: 1000V

AC voltage accuracy: ±(1.5% +3)

AC Voltage resolution: 0.1mV

DC Current: 10A

DC Current resolution: 1mA

DC Current accuracy: ±(2.5%+5)

AC Current: 10A

AC current resolution: 1mA

AC Current accuracy: ±(3.0% +7)

Resistance: 20M?

Resistance resolution: 0.1?

Resistance accuracy: ±(1.2% +2)

Frequency: 10MHz

Frequency resolution: 0.001Hz

Frequency accuracy: ±(1.2% +3)

Capacitance accuracy: ±(3.0% +5)

Temperature: -50 to 1000°C

Temperature resolution; 1°C

Temperature accuracy: ±( 3.0%+5)

Continuity: Yes

Diode Test: Yes

AC Bandwidth: 50.0Hz to 60.0Hz

Digital Display: 2000

Over-range indication: Yes

Input Impedance: ?10M? VDC & ?10M? VAC

Min Max; Yes

Data Hold: Yes

Enclosure: Double moulded

Low battery indication: Yes

Weight: 255g

Dimensions: 150 x 70 x 48mm

What's in the box

1x MT22 Multimeter

1 x 9V Battery

1 x K-type Temperature Probe

1 x Test Leads

1x Instruction Manual
