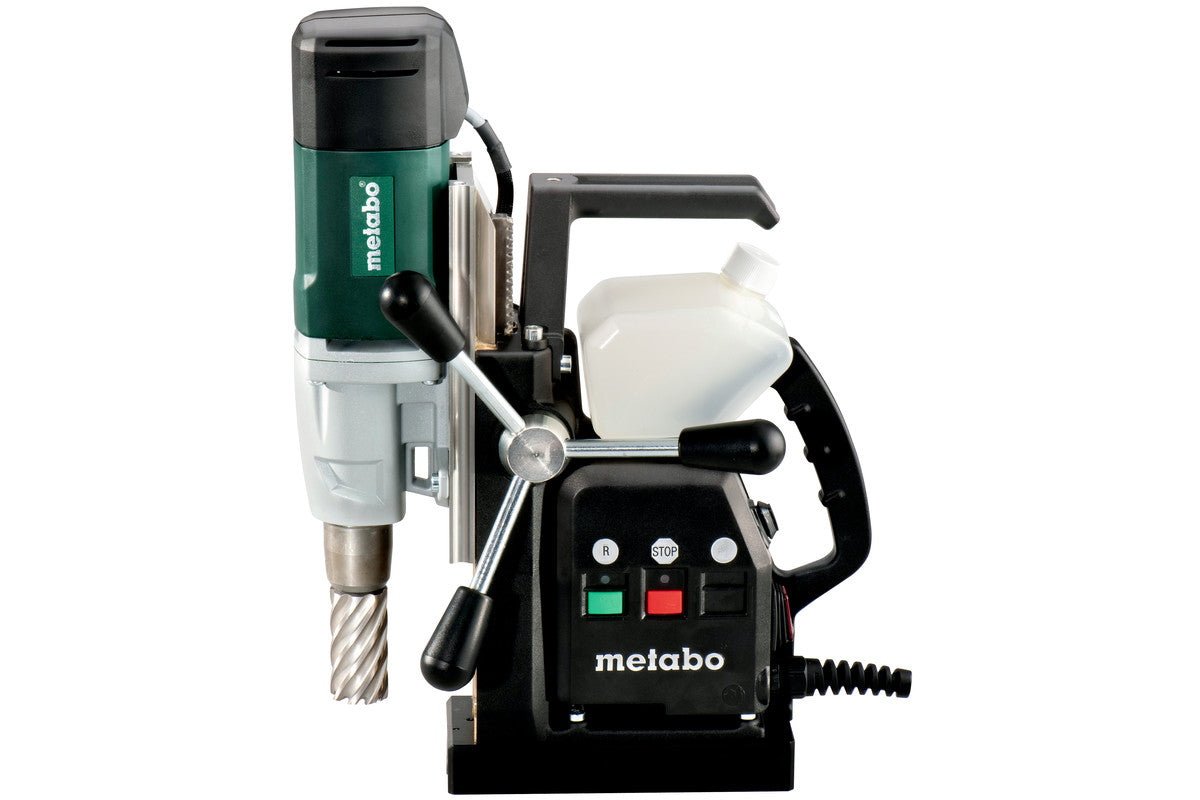

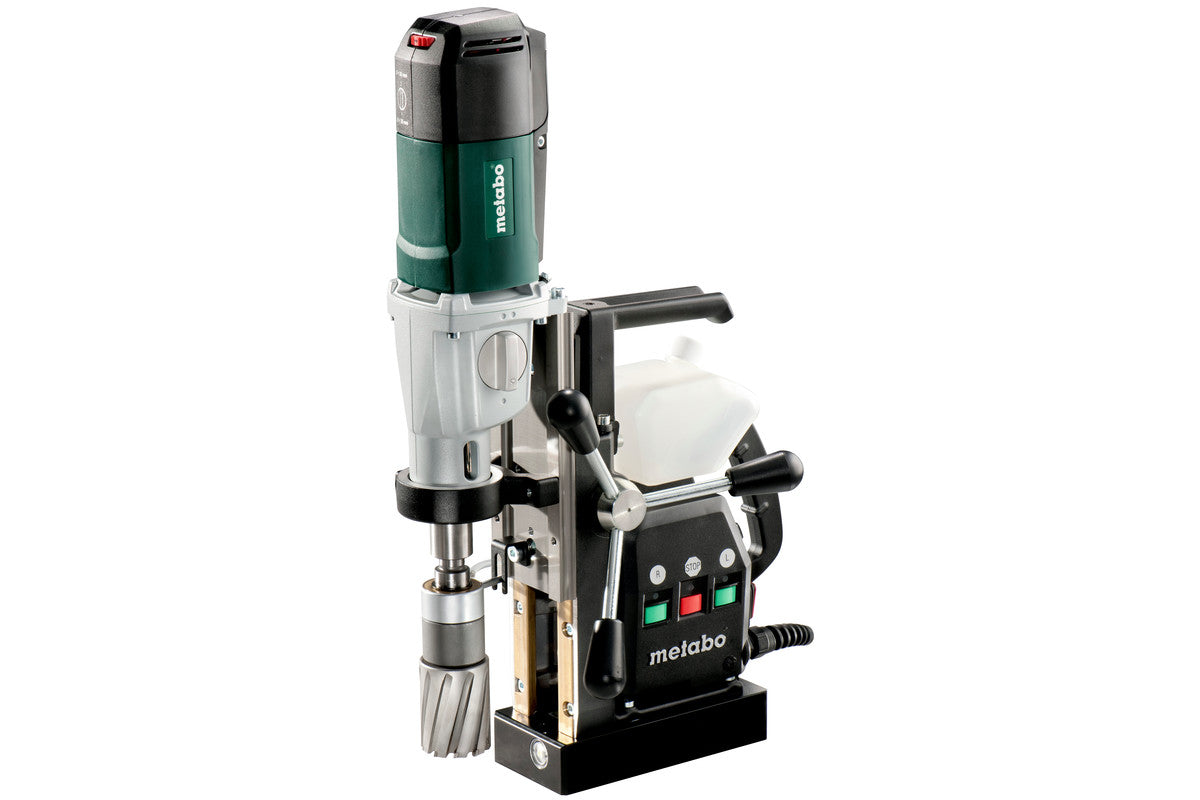

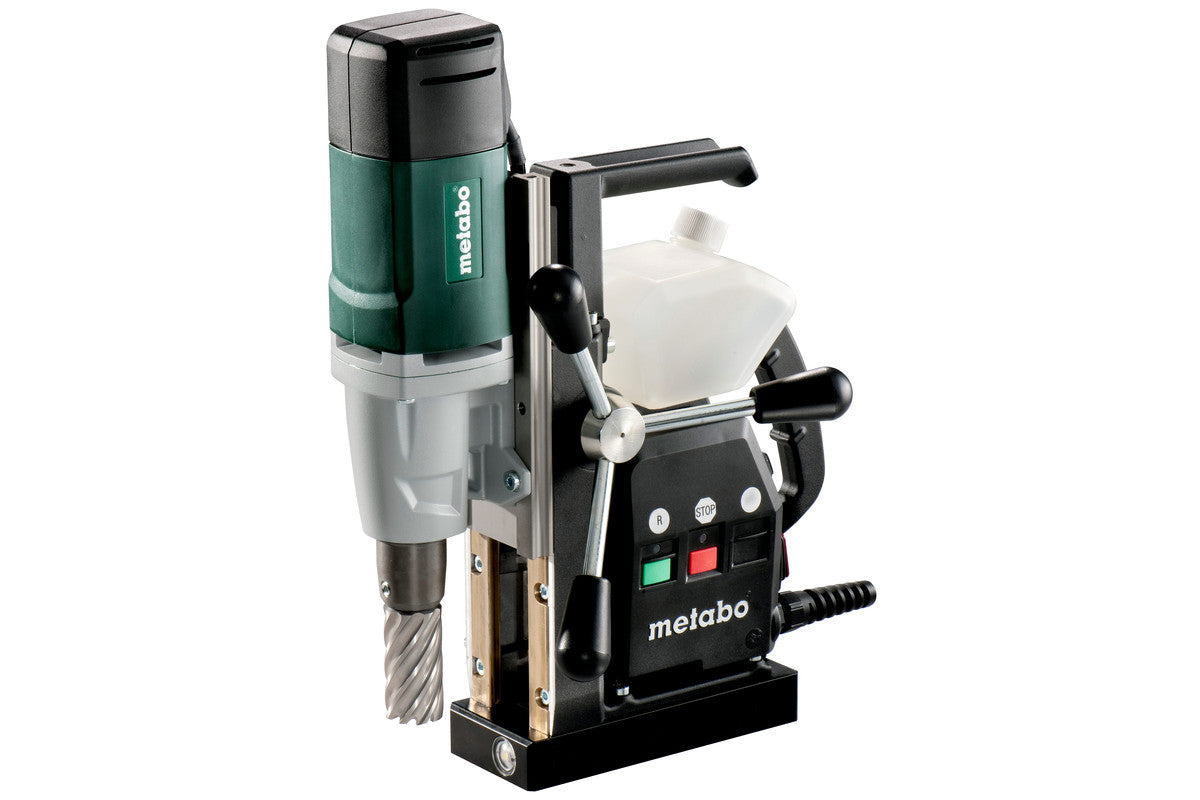

MAG 32 (600635500) Magnetic core drill

• Magnetic core drill with large depth of feed, therefore suitable for use of core drills, spiral drills and countersinks

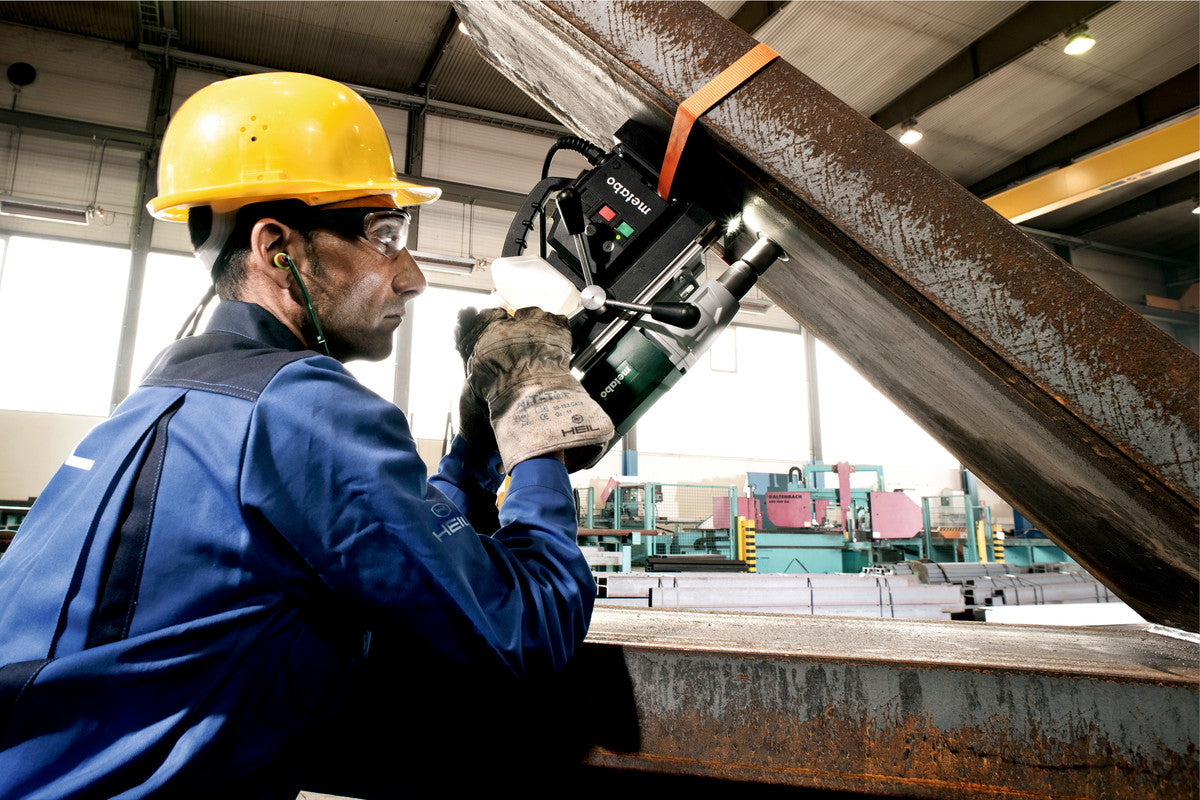

• Magnetic base with high holding power permits working on vertical surfaces and overhead
• Robust Metabo marathon motor with internal wiring for long service life
• Integrated coolant container for easy to dose internal cooling of the core drill
• Bright LED light for easy alignment in poor light conditions
• Swarf protection can be fixed without tools and protects the user from metal shavings and tool contact
• Protective circuit starts motor only if the magnet is activated
• Restart protection: prevents unintentional start-up after power supply interruption
• Lockable slide for comfortable tool change
• Handle for easy carrying and lifting
• Resistant mains cable (5 m) with rubber shroud

Technical Data

Characteristics

• Rated input power: 1000 W
• Output power: 520 W
• Max. drill-Ø with core drill: 32 mm
• Max. drill-Ø with spiral drill: 13 mm
• Maximum drilling depth: 50 mm
• No-load speeds: 700 rpm
• Speeds at rated load: 450 rpm
• Tool holder: Weldon shaft 19 mm (3/4")
• Weight: 11.9 kg
• Cable length: 5 m
• Torque: 50 Nm
• Max. depth of feed: 160 mm
• Max. magnetic holding force: 12250 N

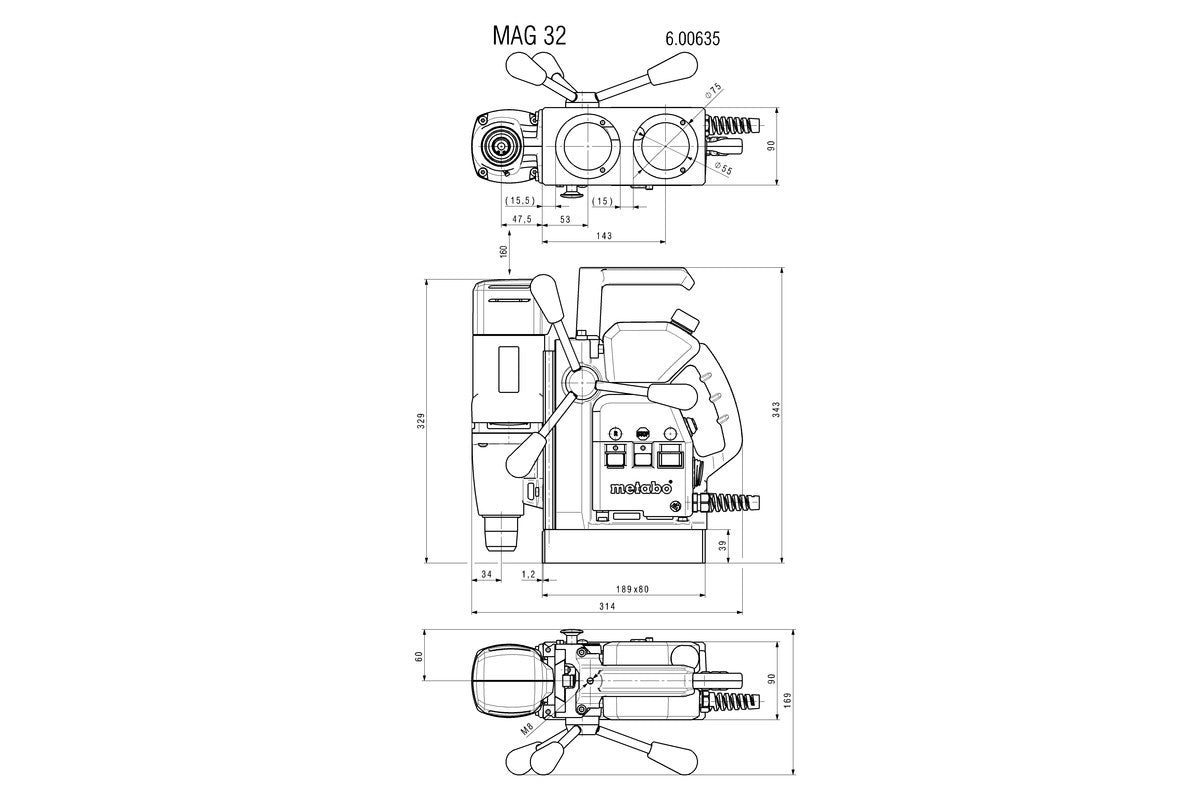

• Dimensions of the magnet base: 90 x 189 mm
• Height carriage lowest position: 343 mm
• Height carriage topmost position: 490 mm

Vibration

• Drilling in metal: 2.5 m/s²
• Uncertainty of measurement K: 1.5 m/s²

Noise emission

• Sound pressure level: 88 dB(A)
• Sound power level (LwA): 98 dB(A)
• Uncertainty of measurement K: 3 dB(A)

Scope of Delivery

• Ejector pin 75 mm
• Safety strap
• Hexagon socket wrench SW 4
• Swarf protection guard
• Transport case
