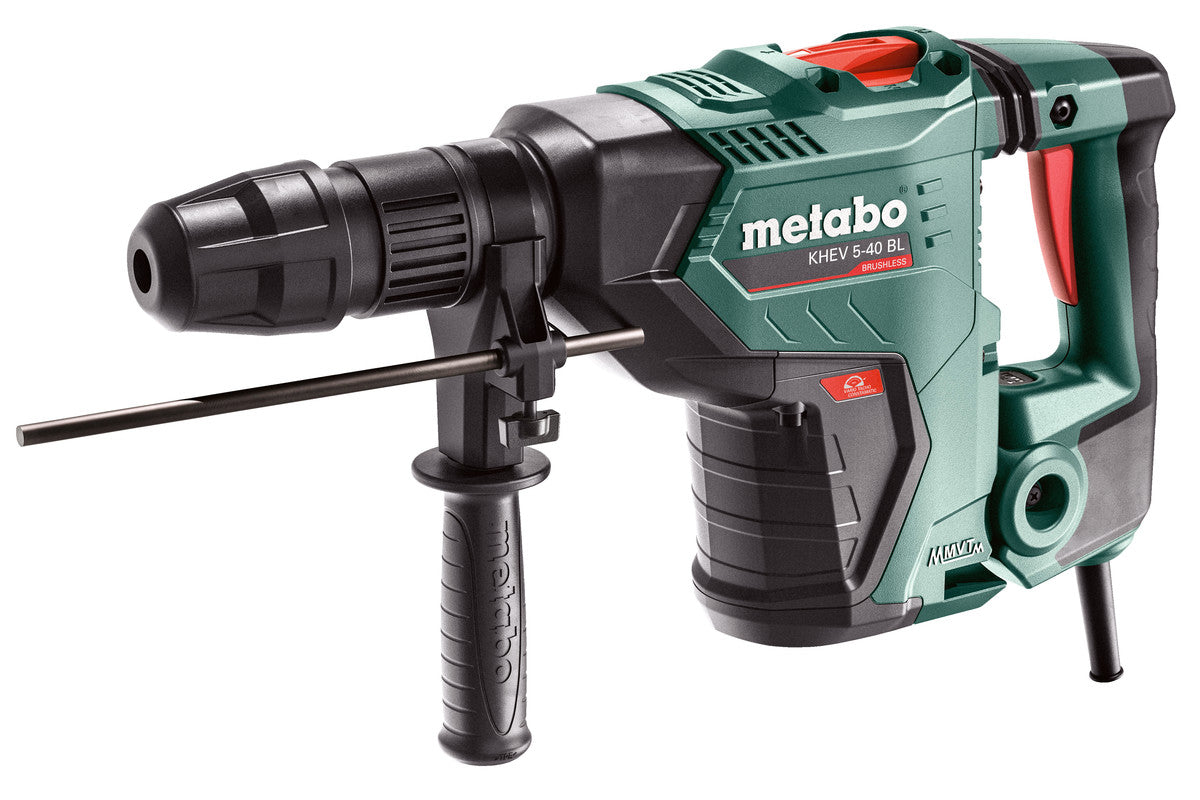

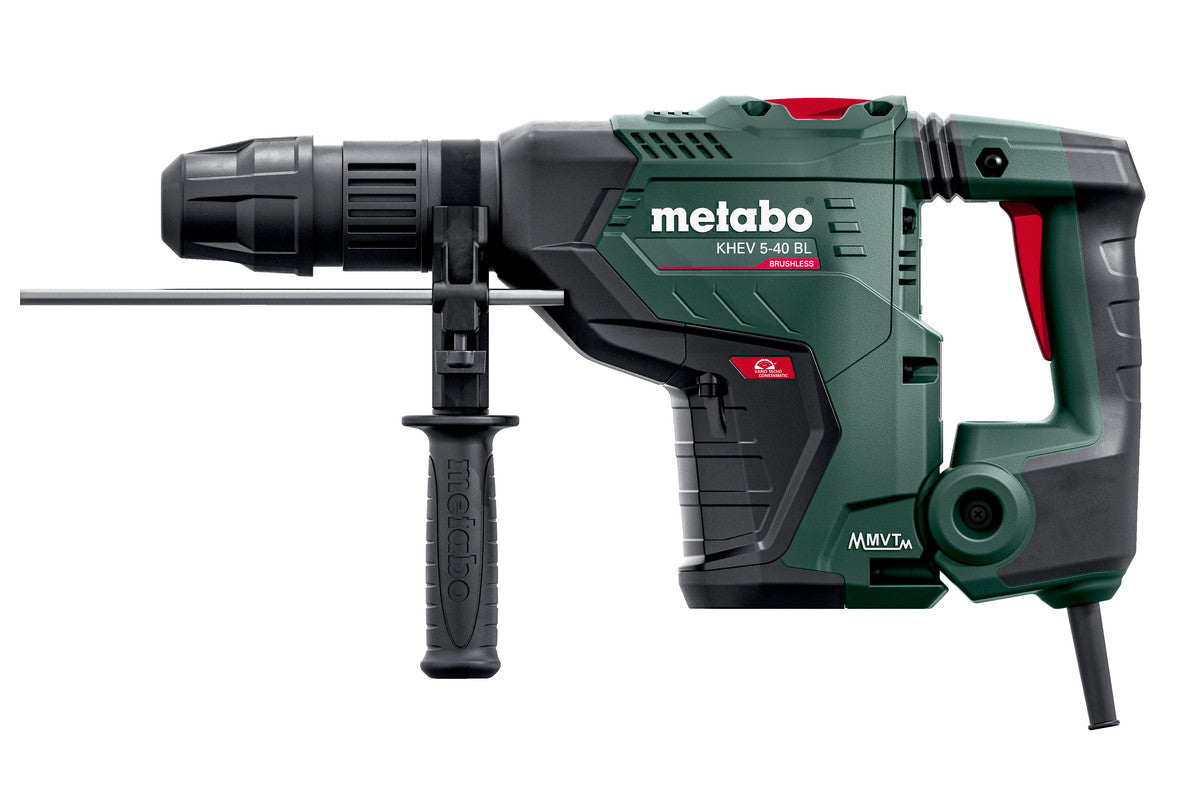

KHEV 5-40 BL (600765500) Combination hammer

• Maximum drilling progress and high breaking performance thanks to maintenance-free brushless motor and high-performance hammer action
• Long service life thanks to brushless technology and robust aluminium die-cast housings of gear and motor
• Combination hammer with 2 functions: hammer drilling and chiselling
• Metabo VibraTech (MVT) with double dampening: Decoupled handle and impact-absorbing counter-oscillating weight actively reduce vibrations for healthy working also in continuous use.
• Ergonomically shaped, slim gripping area with large speed control trigger for comfortable working
• Easily accessible locking switch for chiselling in continuous mode
• Vario-Tacho-Constamatic (VTC)-Full Wave Electronics for work with materials requiring customised speeds, which remain constant under load
• Optional reduction of speed and impact energy for starting a drill hole or working in softer materials
• Electronic soft start for precise spot-drilling
• Metabo S-automatic safety clutch: mechanical decoupling of the drive for safe working should the drill stop unexpectedly
• Restart protection: prevents unintentional start-up after power supply interruption
• Overload protection: protects the motor from overheating

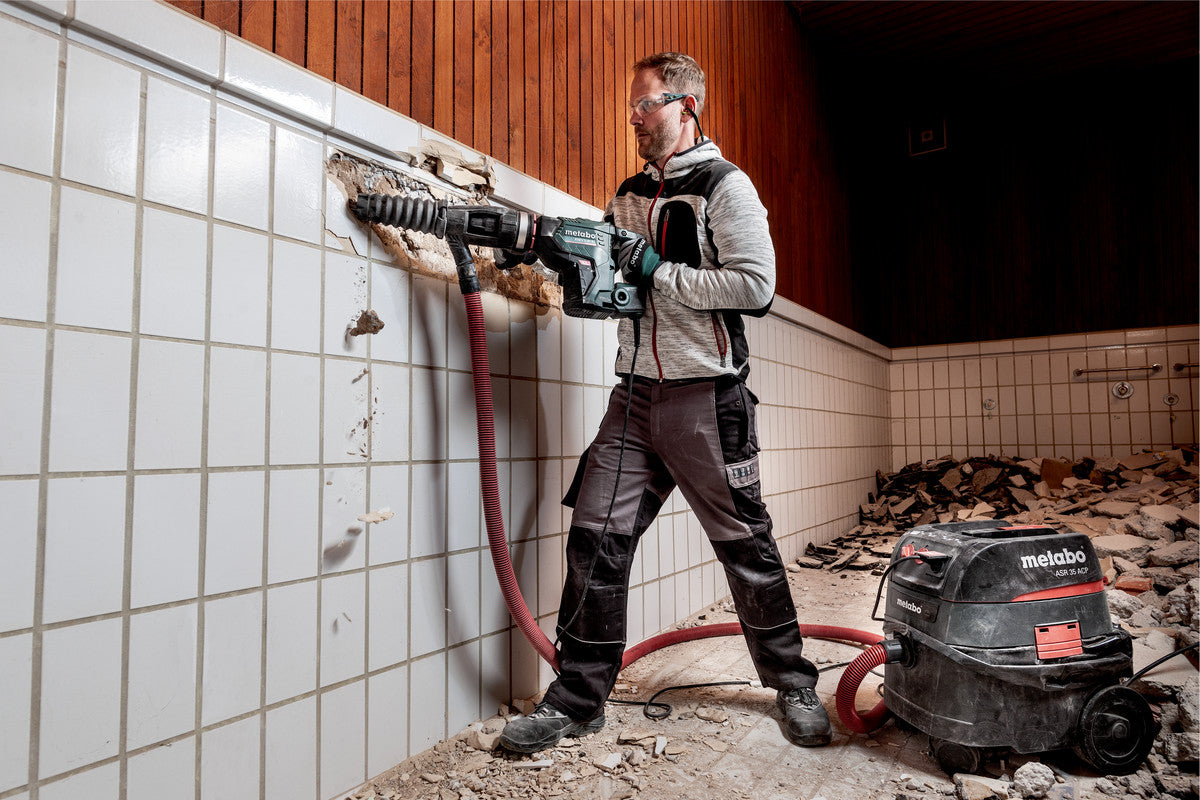

• Low-dust chiselling and drilling with external dust extraction ESA max (accessories)

Technical Data

Characteristics

• Max. single blow energy (EPTA): 8.7 J
• Maximum impact rate: 2900 bpm
• Rated input power: 1150 W
• Drill-Ø concrete with hammer drills: 40 mm
• Drill-Ø masonry with core bits: 105 mm
• No-load speed: 350 / 500 rpm
• Speed at rated load: 350 / 500 rpm
• Tool holder: SDS-max
• Collar diameter: 64.6 mm
• Weight (without power cable): 8.3 kg
• Cable length: 6 m

Vibration

• Hammer drilling concrete: 10.8 m/s²
• Uncertainty of measurement K: 1.5 m/s²
• Chiseling: 9.6 m/s²
• Uncertainty of measurement K: 1.5 m/s²

Noise emission

• Sound pressure level: 93 dB(A)
• Sound power level (LwA): 104 dB(A)
• Uncertainty of measurement K: 3 dB(A)

Scope of Delivery

• rubber-coated side handle
• Drilling depth guide
• Lubricant for tool shank end
• Duster
• Plastic carry case
