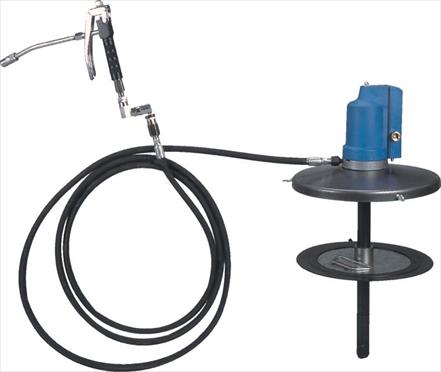

GREASE PUMP GROZ AIR 20KG GRP/501/03

PUMP - AIR OPERATED GREASE RATIO PUMP – 20KG

A compact and practically noiseless air operated 50 : 1 ratio pump

Ideal for applications where there is a continuous need for high pressure grease

Zinc construction makes them suitable for mining applications

Can be used without an airline lubricator as the motor is non-corroding

Use with light and self-collapsing grease up to NLGI #2

Supplied complete with

Drum cover

Rubber lined follower plate

213cm high pressure hose

Z swivel and grease control gun

PUMP SPECIFICATIONS

Working Pressure 4 – 10 BAR (60 TO 150 PSI)

Maximum Air Pressure 10 BAR (150) PSI

Maximum Outlet Pressure 500 BAR (7500 PSI)

Air Inlet Connection ¼” NPT (F)

Pump Outlet Connection ¼” NPT (F)

Air Consumption 270 lt/min (72 GPM) 9cfm per min

Grease Output (NLGI No.2 Grease) 0,460kg/min (1lb/min)

Noise Level 85 db
