Moore and Wright

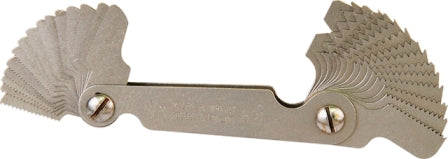

GAUGE MAW SCREW PITCH 801 30BLADE MM

Model MAW801

Clear total priceNeed help choosing?
R1 208.55
VAT included
1 208 XP at launchworth R 12,08
Currently unavailable
1
GAUGE MAW SCREW PITCH 801 30BLADE MM
R1 208.55
1 208 XP at launch
Nationwide deliverySecure paymentEasy returnsReal human support

Everything you need to know.

Accurately milled steel blades

Designed to check both internal and external threads forms

Marked with nominal size on each blade

All blades fixed in a steel sleeve

Screw cutting gauge included. 60º

Code Screw pitch No Blades Threads per mm

MAW801 SI Metric 30 0.25, 0.30, 0.35, 0.40, 0.45

0.5, 0.55, 0.60, 0.65, 0.70

0.75, 0.80, 0.85, 0.90, 1.0

1.10, 1.20, 1.25, 1.30, 1.40 1.50, 1.60, 1.70, 1.75, 1.80,

1.90, 2.0, 2.50, 3.0

Specifications

Brand
Moore and Wright
SKU
MAW801
Category
Measuring and Marking
