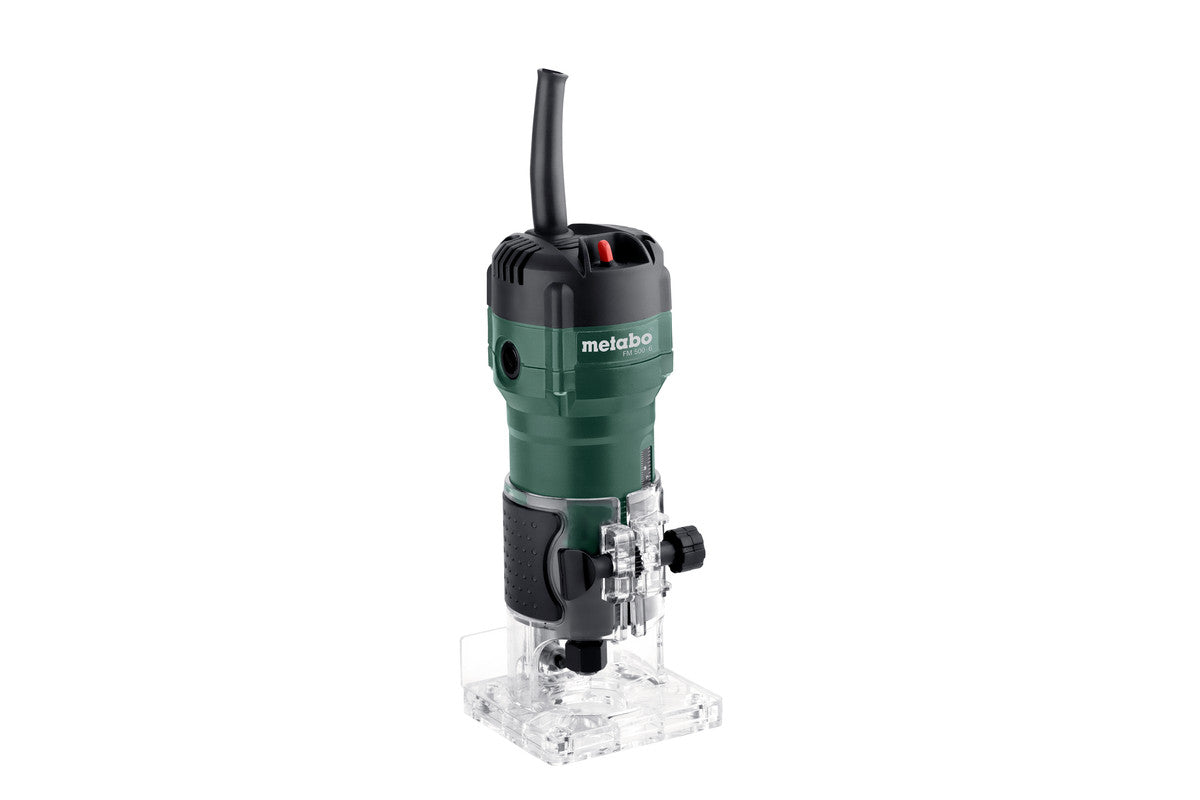

FM 500-6 (601741000) Trim router

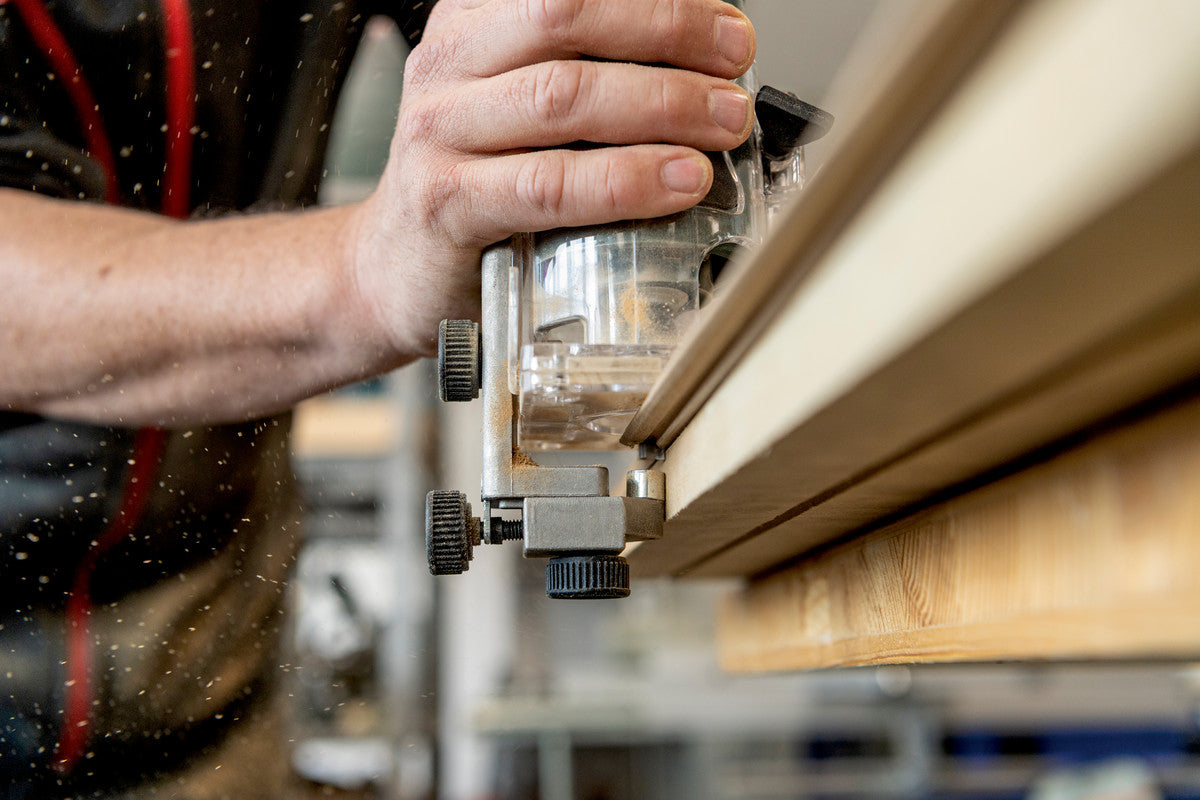

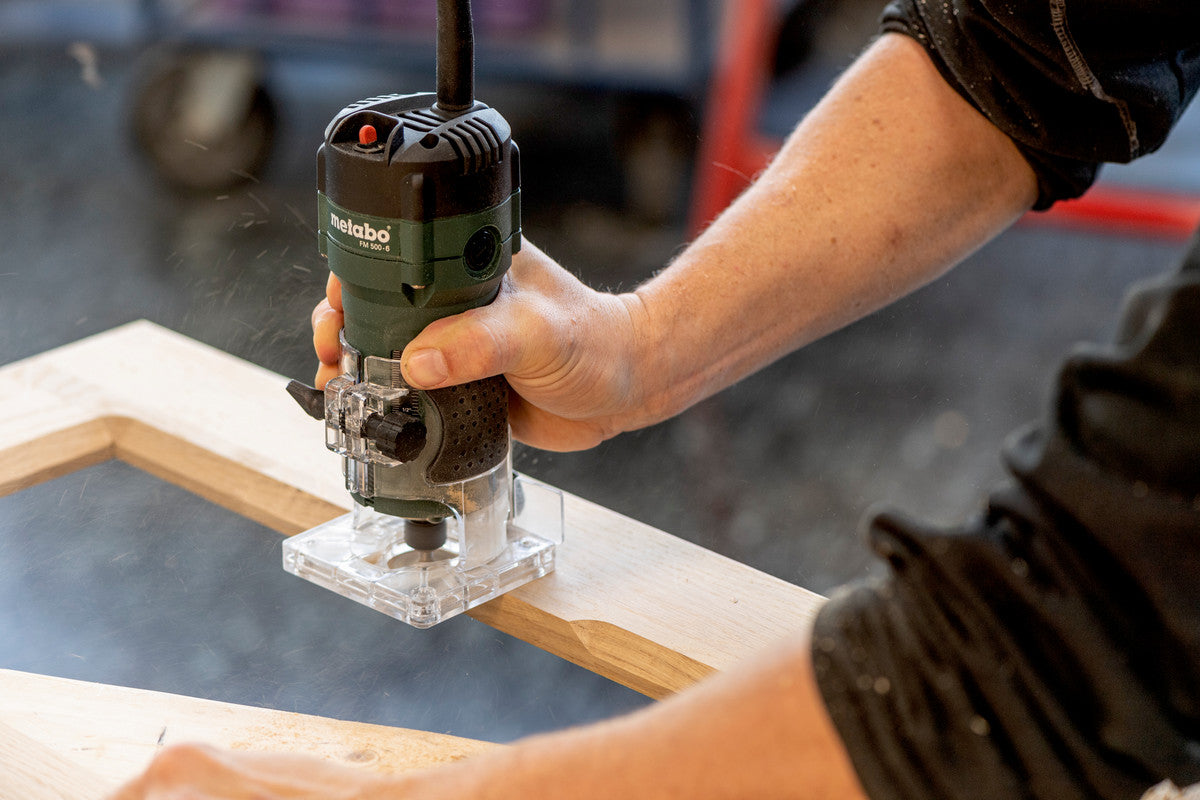

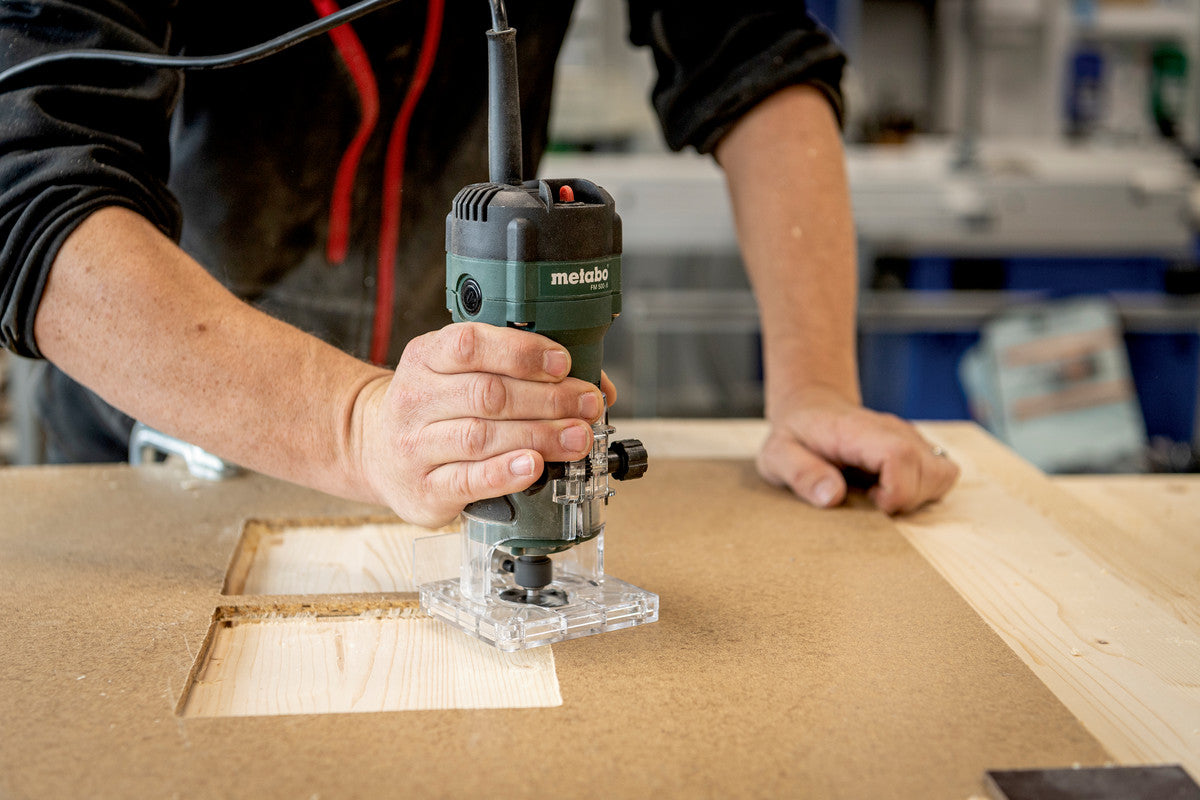

• Light, compact trim router for single-handed profile cutting, trimming and cutting of grooves
• Powerful motor for quick cutting of wood and wood-like materials
• With extensive scope of delivery: parallel guide, template follower and roller guide
• Precise, stepless depth adjustment and fixing of the motor unit using rack jacks

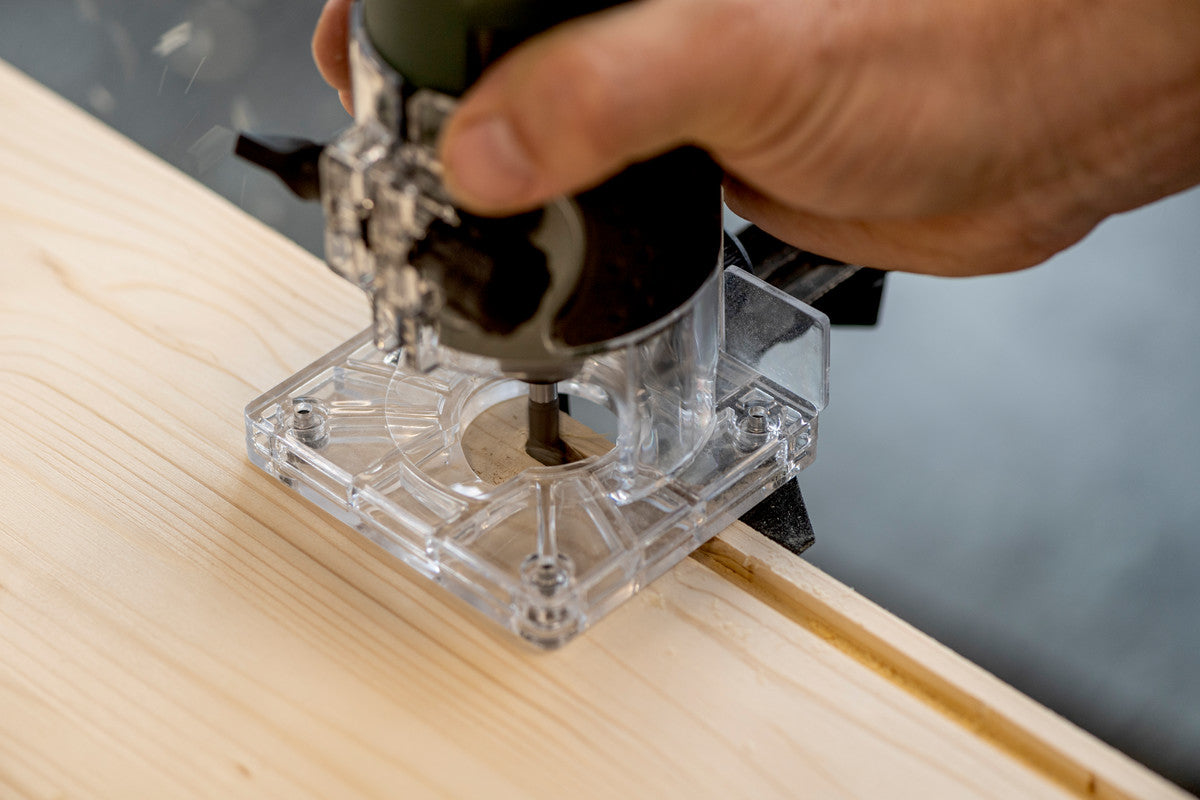

• Transparent baseplate for maixmum view of the router bit and workpiece
• Restart protection: prevents unintentional start-up after power supply interruption
• Auto-stop carbon brushes to protect the motor

Technical Data

Characteristics

• Maximum stroke height: 40 mm
• No-load speed: 32000 rpm
• Rated input power: 500 W
• Output power: 300 W
• Speed at rated load: 19000 rpm
• Collet chuck bore: 6 mm
• Weight (without power cable): 1.3 kg
• Cable length: 2 m

Vibration

• Routing MDF: 1.2 m/s²
• Uncertainty of measurement K: 1.5 m/s²

Noise emission

• Sound pressure level: 92 dB(A)
• Sound power level (LwA): 100 dB(A)
• Uncertainty of measurement K: 3 dB(A)

Scope of Delivery

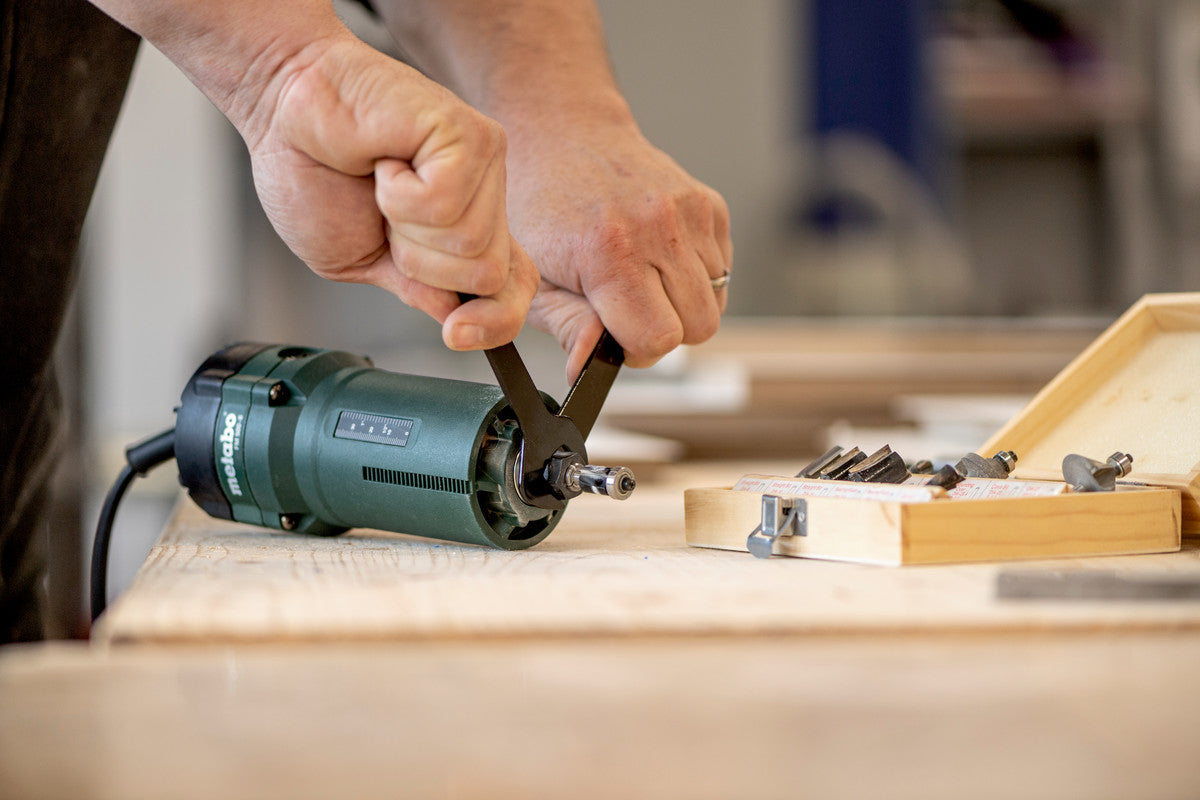

• 2 open-jawed spanners
• Parallel guide
• Template Follower
• Roller guide
• Protective glass
