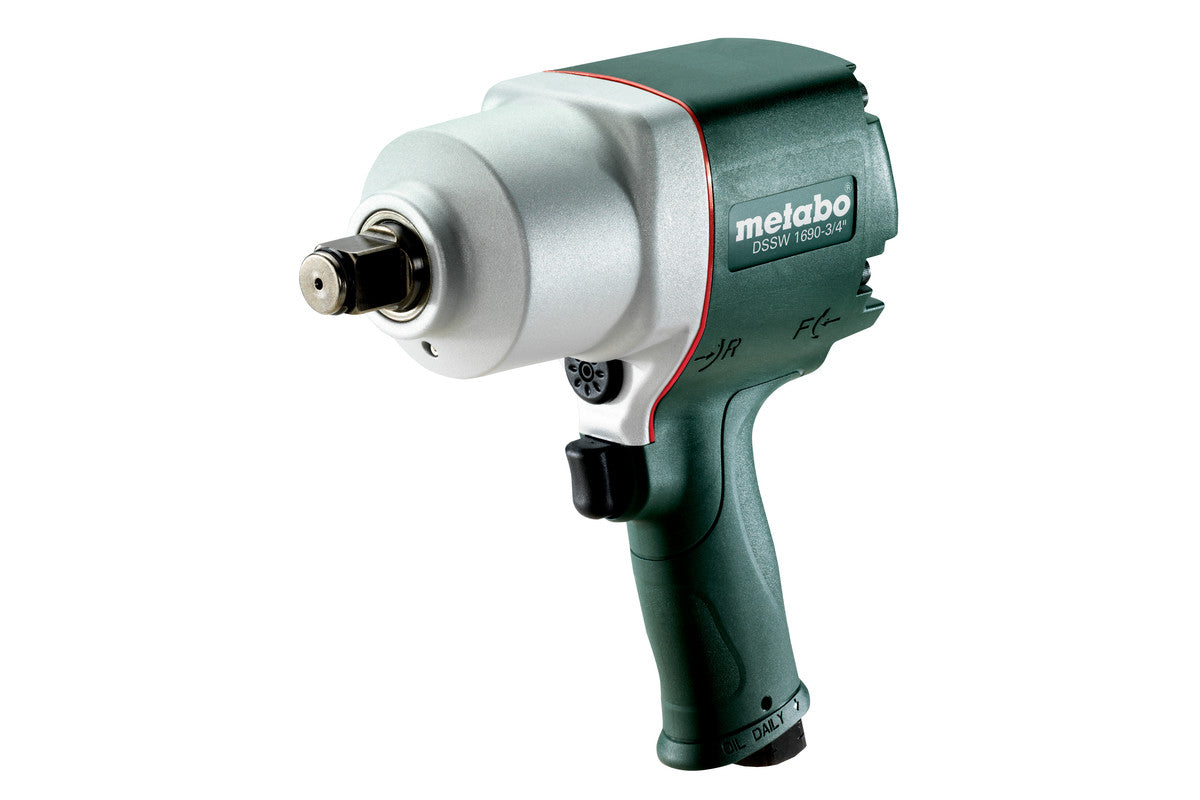

DSSW 1690-3/4" (601550000) Air impact wrench

• For tightening/loosening wheel bolts on cars and commercial vehicles, for assembly work and repairs. Universal use
• Practical and lightweight for easy operation even in difficult to reach places
• Ergonomic composite housing: insulated non-slip and low vibration for comfortable work
• Ergonomic forward/reverse switching with convenient one-hand operation
• User-friendly exhaust guide through the handle avoids dust turbulence in the working area
• Torque can be set at 3 levels for different tightening applications
• Durable twin hammer

Technical Data

Characteristics

• Operating pressure: 6.2 bar
• Air requirement: 10.5 l/s
• Square holder: 3/4"
• Maximum torque: 1100 Nm
• Max. loosening torque: 1690 Nm
• Weight: 3.5 kg

Vibration

• Impact screwdriving: 19.7 m/s²
• Uncertainty of measurement K: 2.44 m/s²

Noise emission

• Sound pressure level: 103 dB(A)
• Sound power level (LwA): 114 dB(A)
• Uncertainty of measurement K: 3 dB(A)

Scope of Delivery

• EURO Plug-in nipple 3/8"
• ARO/Orion Plug-in nipple 3/8"
• ISO Plug-in nipple 3/8"
• Hose nozzle 10 mm and hose clamp according to ISO 11148
• 1 oil bottle
