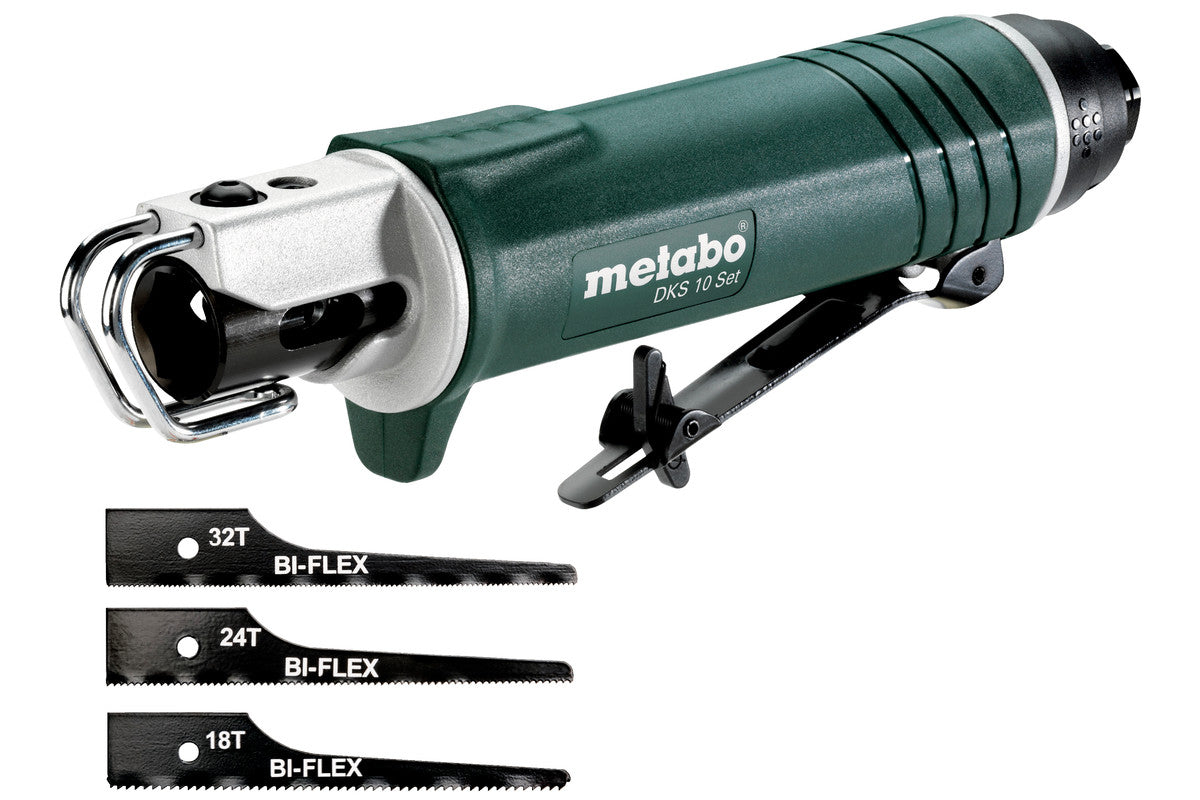

DKS 10 Set (601560500) Large diameter air saw

• Suitable for cutting metal sheets, plastics, aluminium, wood and fibre glass
• Low vibrations for convenient continuous mode
• Magnesium housing: particularly light and robust
• Rubberised handle for ergonomic and fatigue-free operation
• User-friendly exhaust guide through the handle avoids dust turbulence in the working area
• Sound-proofed air outlet for reduced noise operation
• Precise saw blade guide for high cutting output and clean cutting edges
• Adjustable hoop guard: exact setting of cutting depth
• Safety lever prevents unintentional start of the machine

Technical Data

Characteristics

• Operating pressure: 6.2 bar
• Air requirement: 420 l/min
• Cutting thickness aluminum: 4 mm
• Cutting thickness steel: 3 mm
• Stroke length: 10 mm
• Strokes at rated load: 9000 spm
• Weight: 0.65 kg

Vibration

• Sawing metal: 4.1 m/s²
• Uncertainty of measurement K: 0.9 m/s²

Noise emission

• Sound pressure level: 83 dB(A)
• Sound power level (LwA): 94 dB(A)
• Uncertainty of measurement K: 3 dB(A)

Scope of Delivery

• EURO Plug-in nipple 1/4"
• ARO/Orion Plug-in nipple 1/4"
• ISO Plug-in nipple 1/4"
• 5 Saw blades each (18 teeth, 24 teeth, 32 teeth)
• Hexagonal wrench
• Plastic carry case
• Hose nozzle 10 mm and hose clamp according to ISO 11148
• Oil bottles
