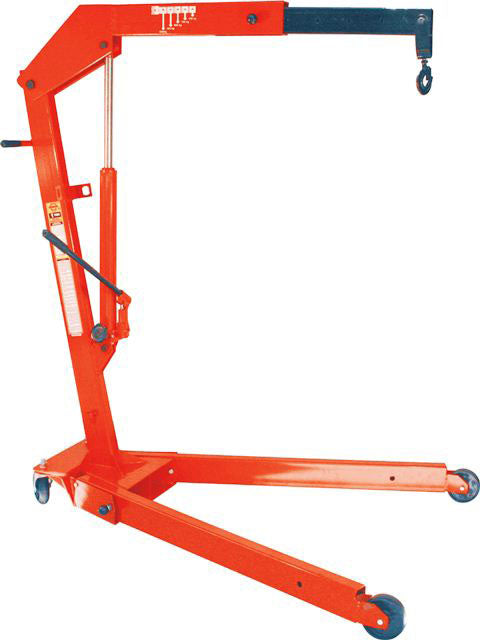

CRANE MOBI STANDARD FOLDING 1T (TR)

Heavy duty welded construction from rugged tubular steel

Metered control release valve enables boom lowering at a precisely controlled rate of speed

Long hydraulic ram is equipped with a special, patented built-in bypass mechanism

Ideal for lifting and transporting engines, transmissions, generators, pumps, compressors and other heavy equipment

Spares available - Ram Hydraulic Unit - Caster Assembly - Front Wheels

Crane conveniently folds away for easy storage & transportation

Capacity (Tons) 1

Base Length 1520mm

Base Width Front 1120mm

Base Width Rear 1100mm

Gross Weight 83,0kg

BOOM CAPACITY MIN HOOK MAX HOOK BOOM

POSITION KG HEIGHT HEIGHT LENGTH

1 1000 400mm 1970mm 950mm

2 900 300mm 2020mm 1050mm

3 800 200mm 2080mm 1150mm

4 700 1000mm 2130mm 1250mm

5 600 - 2180mm 1350mm
