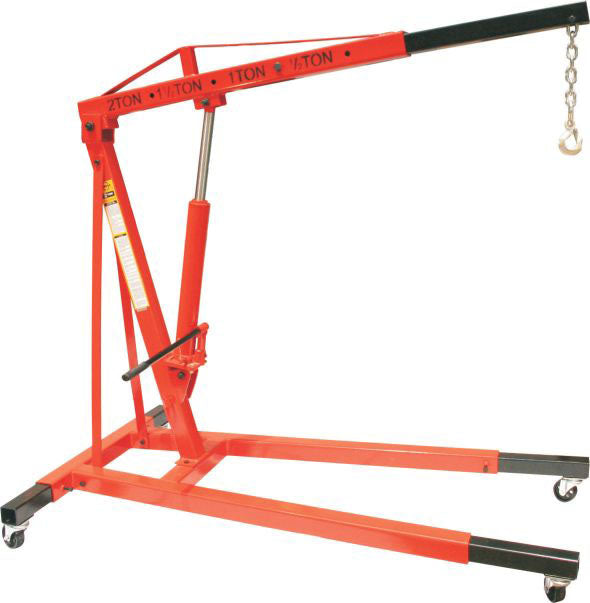

CRANE MOBI ECONOMY 2T (WF)

Heavy duty welded construction from rugged tubular steel

Metered control release valve enables boom lowering at a precisely controlled rate of speed

Long hydraulic ram is equipped with a special, patented built-in bypass mechanism

Ideal for lifting and transporting engines, transmissions, generators, pumps, compressors and other heavy equipment

Spares available - Ram Hydraulic Unit - Swivel Caster Complete - Front Wheels

Crane conveniently folds away for easy storage & transportation

Capacity (Tons) 2

Min Height 100mm

Max Height 2380mm

Base Length 1745mm

Base width Front 1010mm

Base width Rear 800mm

Gross Weight 90kg

Package Size 1360*315*160mm

730*585*90mm

BOOM CAPACITY MIN HOOK MAX HOOK BOOM

POSITION KG HEIGHT HEIGHT LENGTH

1 2000 315mm 1880mm 1020mm

2 1500 155mm 2030mm 1200mm

3 1000 0mm 2160mm 1380mm

4 500 0mm 2320mm 1560mm
