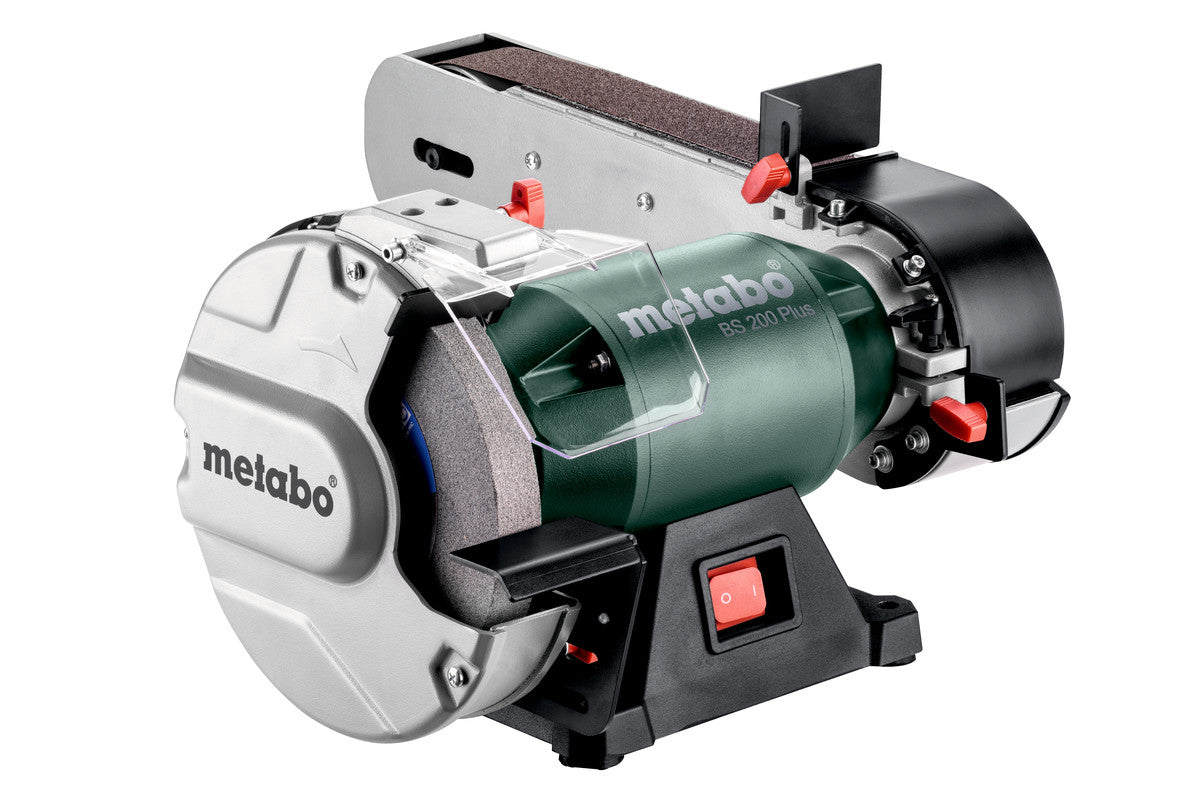

BS 200 Plus (604220000) Combo bench grinder

• Universal combination machine with sanding belt and grinding wheel for processing wood and metal
• For sanding/grinding, sharpening, deburring and removing rust on steel and metals

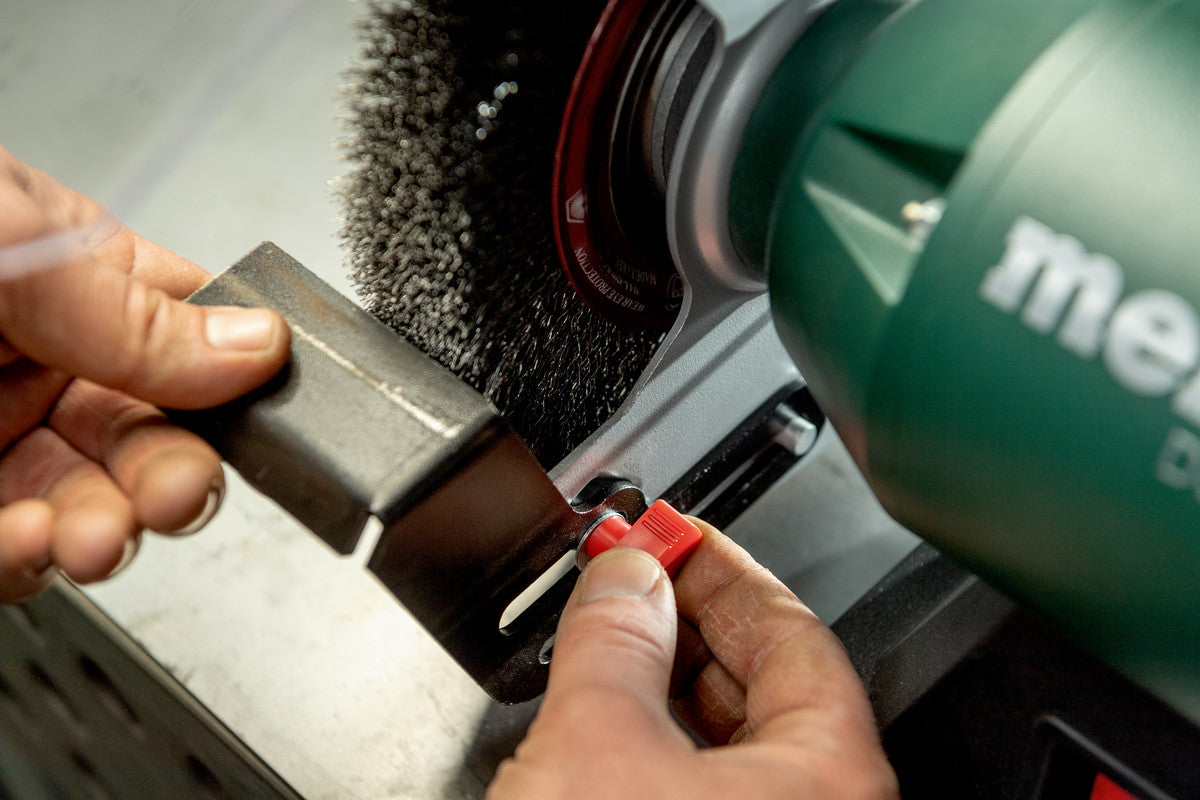

• Suitable for use of steel wheel brushes for removing rust
• Integrated LED light for optimal illumination of the working area

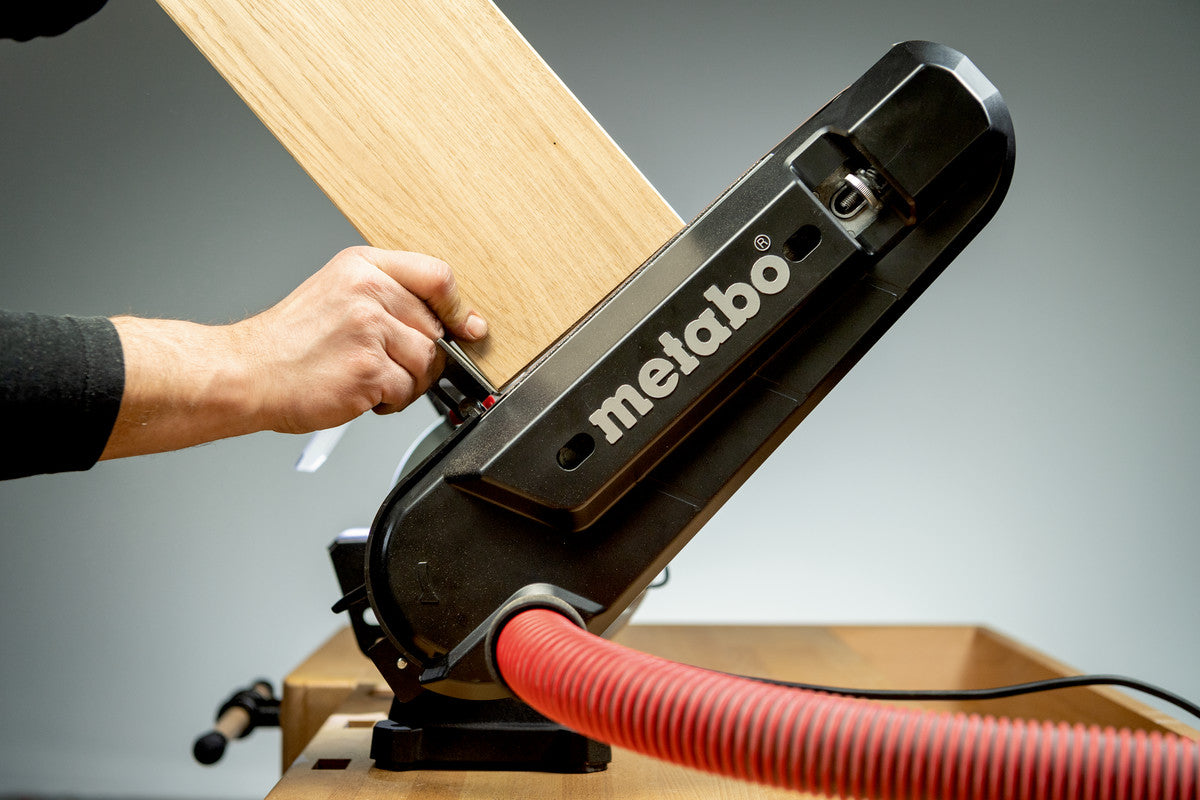

• Large belt sanding arm which can be continuously tilted by 90° for double flight grinding belt lengths
• Tool-free pitch adjustment of the belt sanding arm

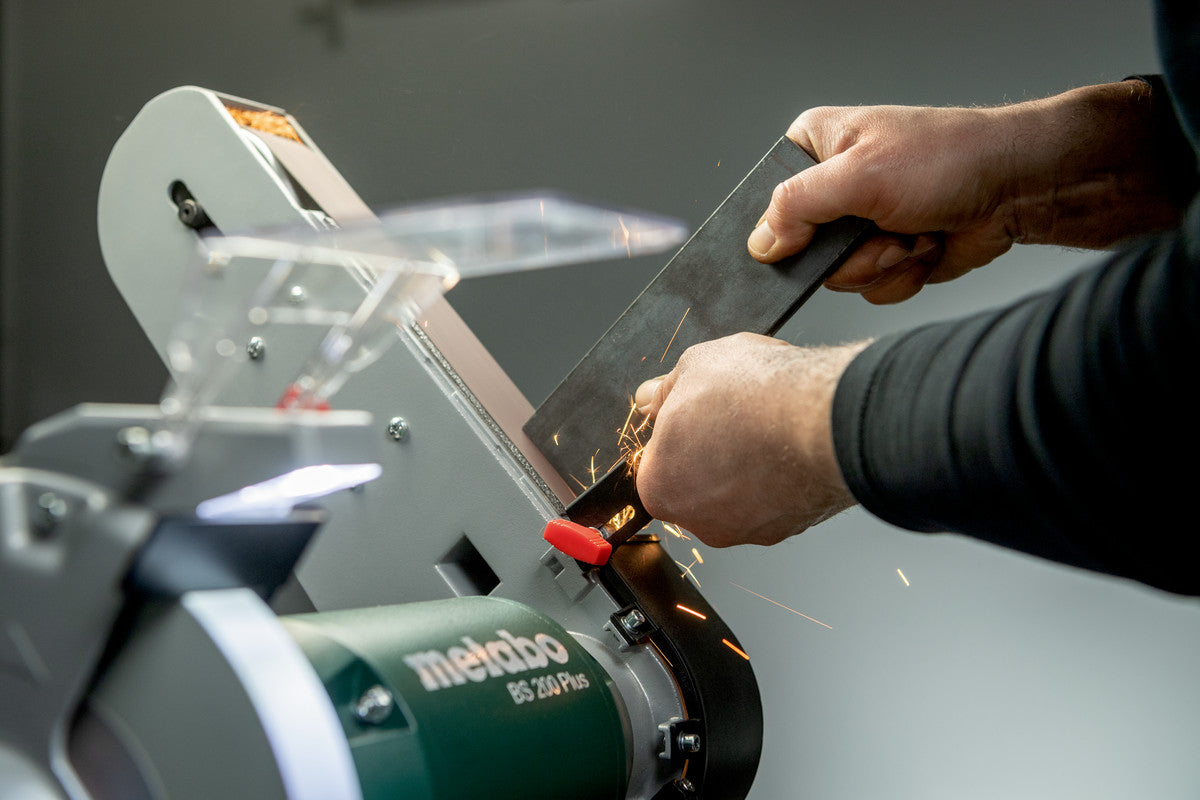

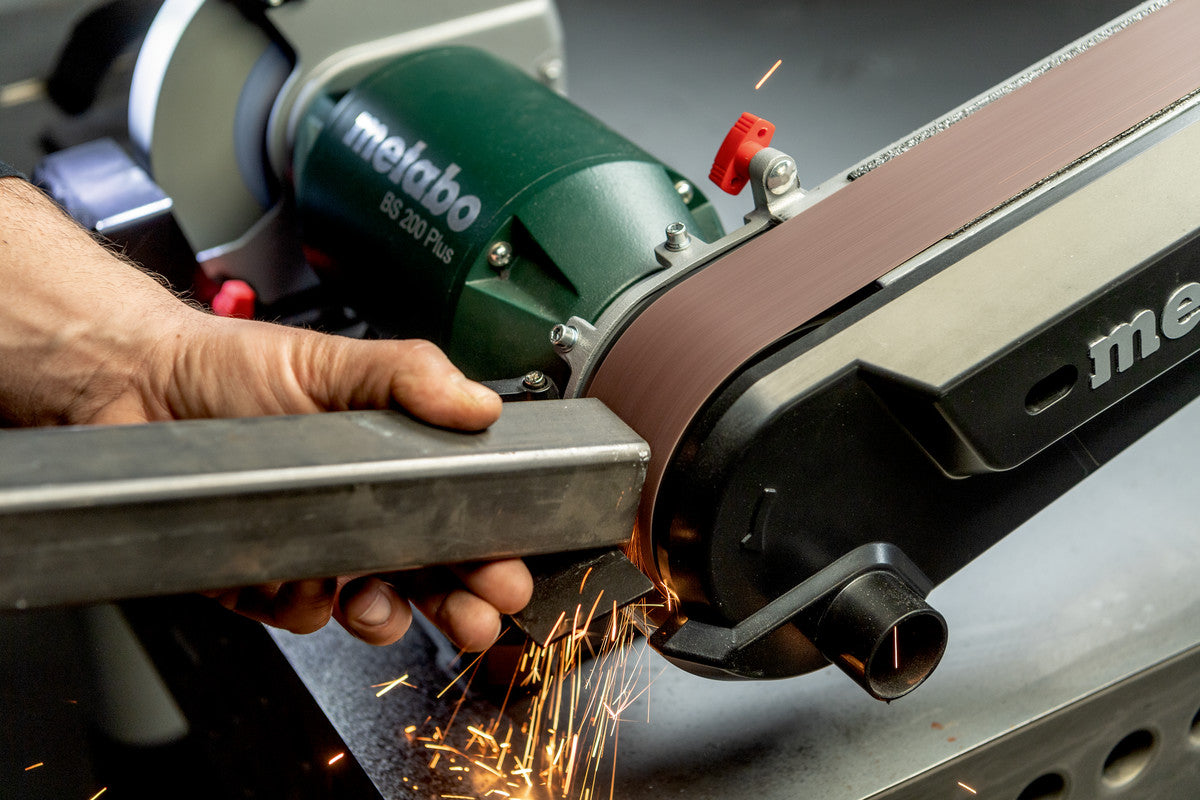

• Flexible working on the large sanding are or alternatively on the curve of the belt sanding arm
• Extraction connection on the belt sanding arm, suitable for standard coupling bushes
• Rubberised drive wheel in the belt sanding arm with grooves for fast heat dissipation

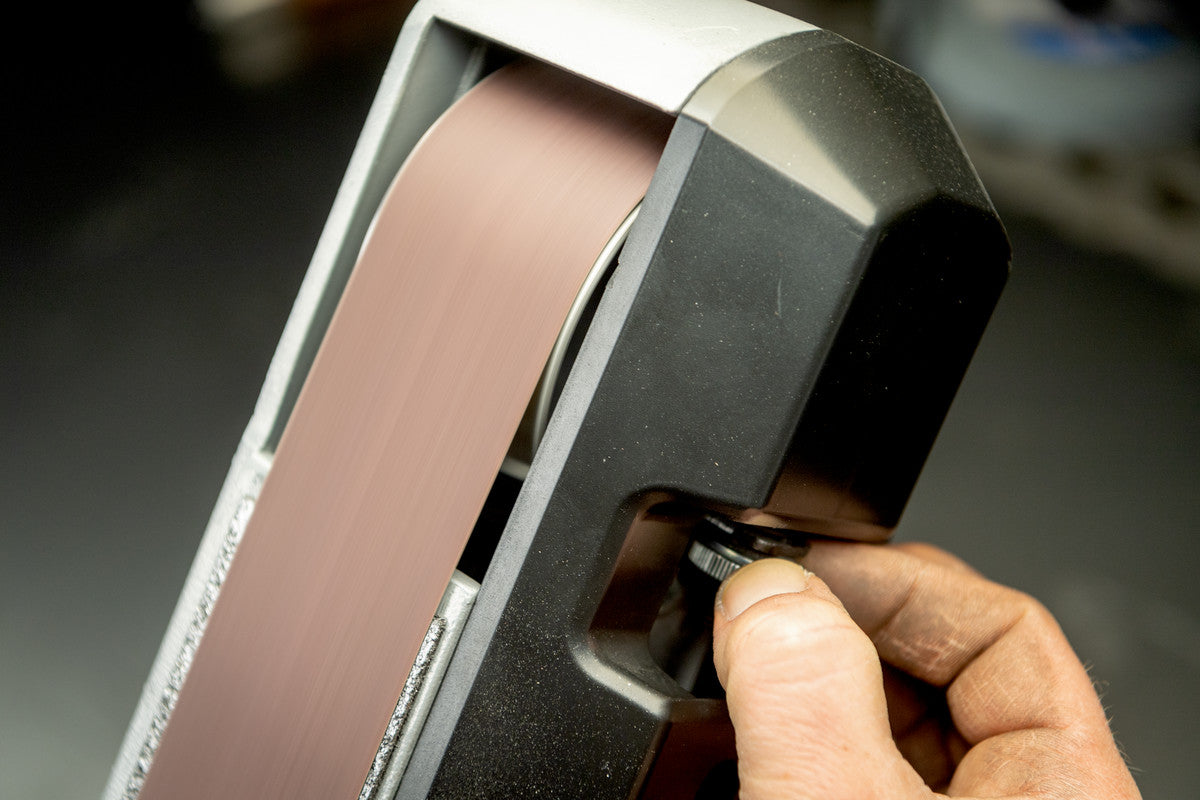

• Fast, tool-free sanding belt change after opening the cover
• Maximum smooth running and long tool life of the discs thanks to high-quality mounting flanges

Technical Data

Characteristics

• Grinding wheels (Ø x thickness x bore): 200 x 25 x 32 mm
• No-load speed: 2980 rpm
• Mains voltage: 220 - 240 V
• Rated input power: 600 W
• Output power: 450 W
• Breakdown torque: 2.7 Nm
• Length of belt grinding arm: 480 mm
• Grinding belt width: 50 mm
• Grinding belt length: 1000 / 1020 mm
• Suction connection: 33 mm
• Weight: 16.9 kg
• Cable length: 1.8 m

Scope of Delivery

• Regular aluminium oxide sanding disc 60 N
• Fabric belt K 60
• Spark protection glasses
• Work piece support
• Hexagonal wrench
