BAS 261 Precision (619008000) Band saw

• High precision and stability for highest cutting quality

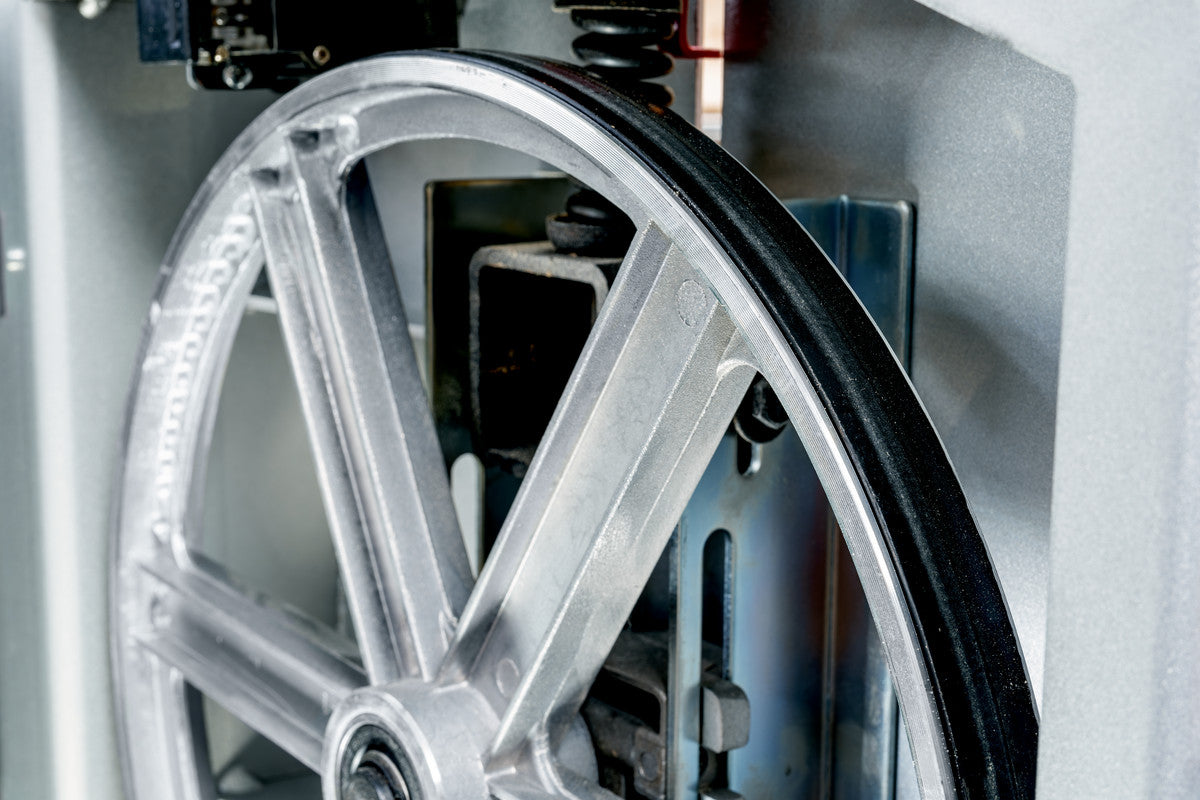

• Quiet belt path thanks to balanced flywheels with rubber coating

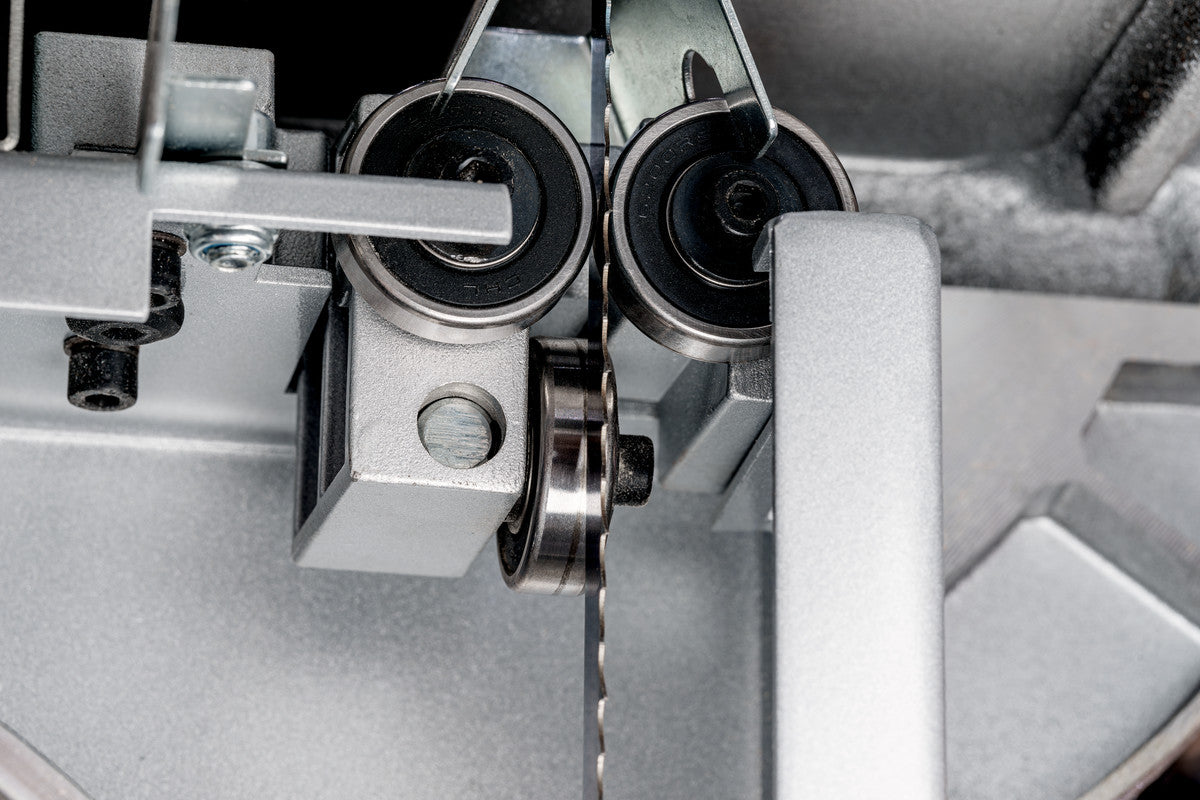

• Top and bottom HSS precision three-roller guide of the band saw blade for accurate cutting results, adjustable without tools
• Precise rip fence with double clamping and quick fastening
• Quiet induction motor, maintenance-free and robust.
• Restart protection: prevents unintentional start-up after power supply interruption

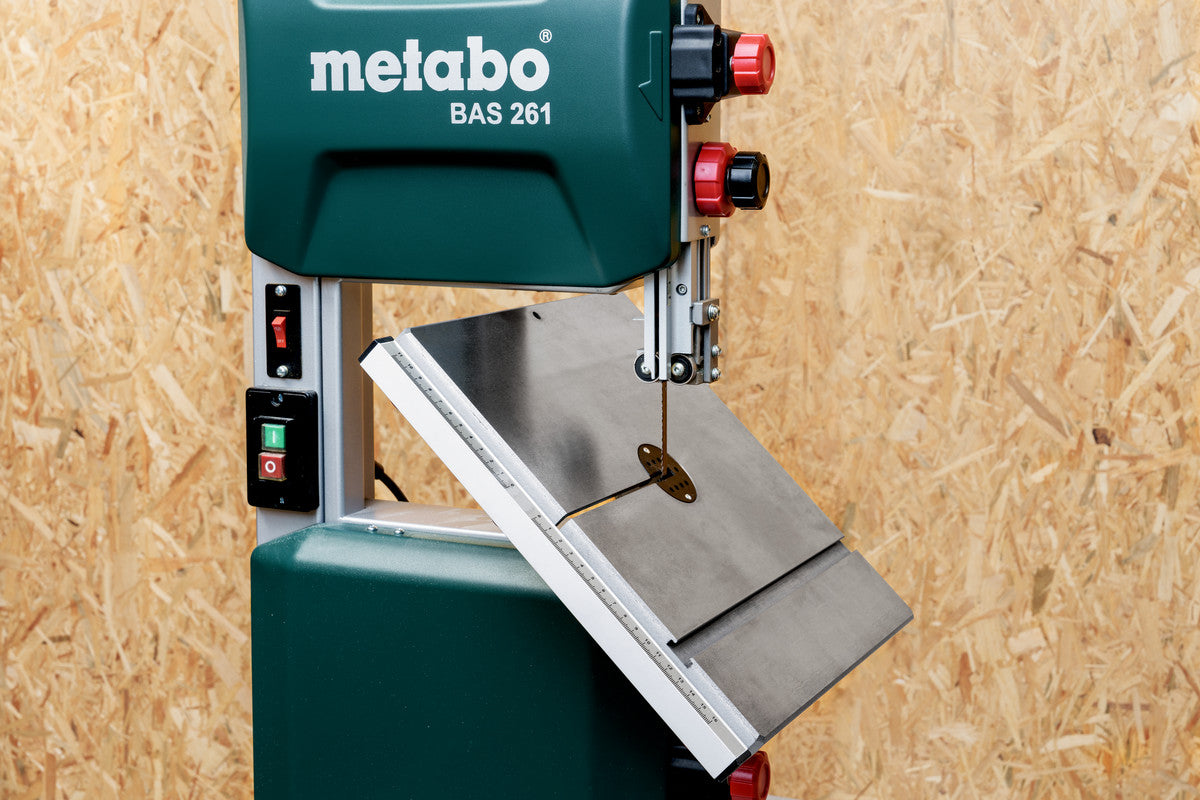

• Swivelling grey cast iron saw table for inclined cuts
• Door opening without tools for easy saw blade change
• Tool-less height adjustment of the saw blade guard

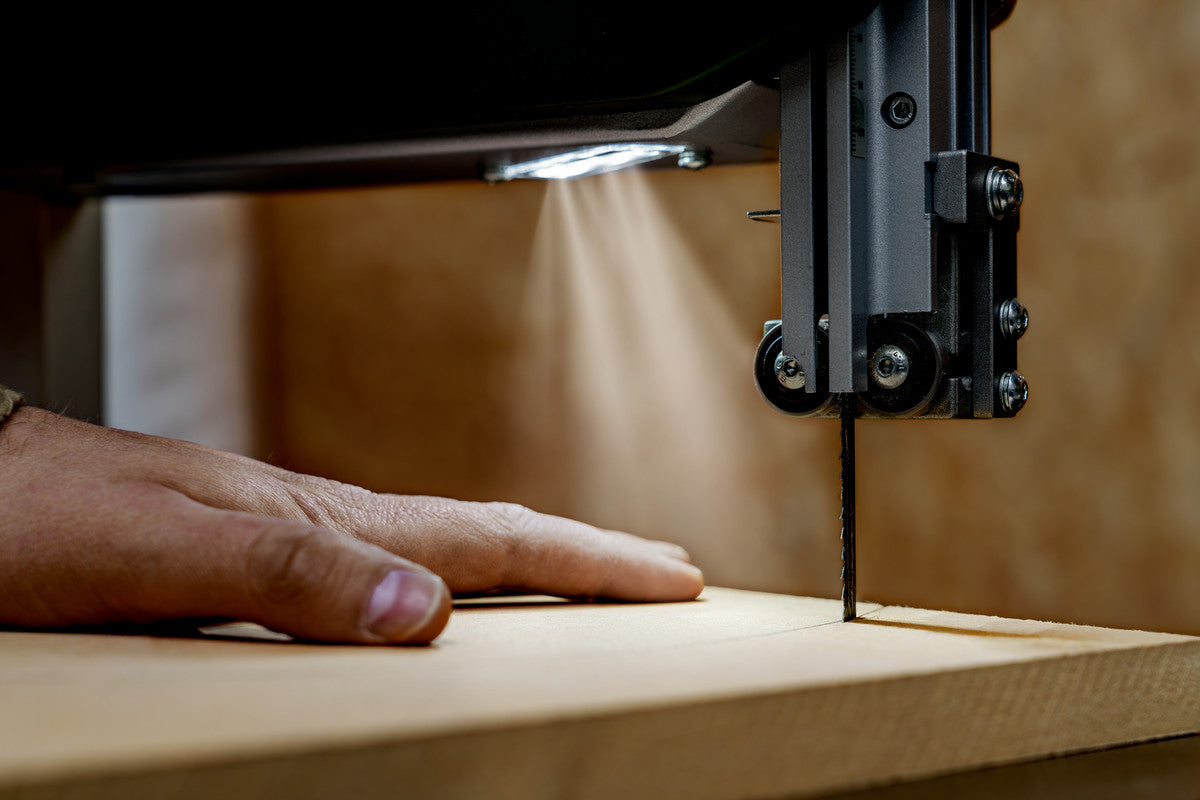

• LED work light for illumination of the cutting line
• External extraction possible for low-dust working
• Radius cutting with circle sawing attachment (accessory)

Technical Data

Characteristics

• Dimensions: 530 x 470 x 840 mm
• Support surface: 328 x 335 mm
• Working height without stand: 375 mm
• Sawing bench swivel range: 0 - 45 °
• Cutting height: 103 mm
• Passage width: 245 mm
• Cutting speed: 735 m/min
• Saw belt length: 1712 mm
• Mains voltage: 220 - 240 V
• Rated input power: 400 W
• Output power: 270 W
• Weight: 32.5 kg

Noise emission

• Sound pressure level: 76 dB(A)
• Sound power level (LwA): 89 dB(A)
• Uncertainty of measurement K: 3 dB(A)

Scope of Delivery

• Universal band saw blade A6
• Rip fence
• Mitre Fence
• Suction adapter (for Ø 44, 58, 100 mm)
• Push stick
