ASUS TUF Gaming GeForce RTX 5090 32GB GDDR7 OC Edition Graphics Card

NVIDIA Blackwell architecture at its peak | 32GB GDDR7 for extreme gaming and creative workloads | Military-grade durability with advanced cooling mastery | DLSS 4 Multi Frame Generation and full ray tracing

Quick Specs

• Dominate at 4K and beyond with the NVIDIA GeForce RTX 5090 GPU and a blazing 2580MHz OC boost clock
• Experience ultra-fast 32GB of GDDR7 memory across a 512-bit interface at 28Gbps for uncompromising bandwidth
• Stay cool under fire with a triple-fan Axial-tech cooling system, 12 heatpipes, and a vapour chamber in a robust 3.6-slot design

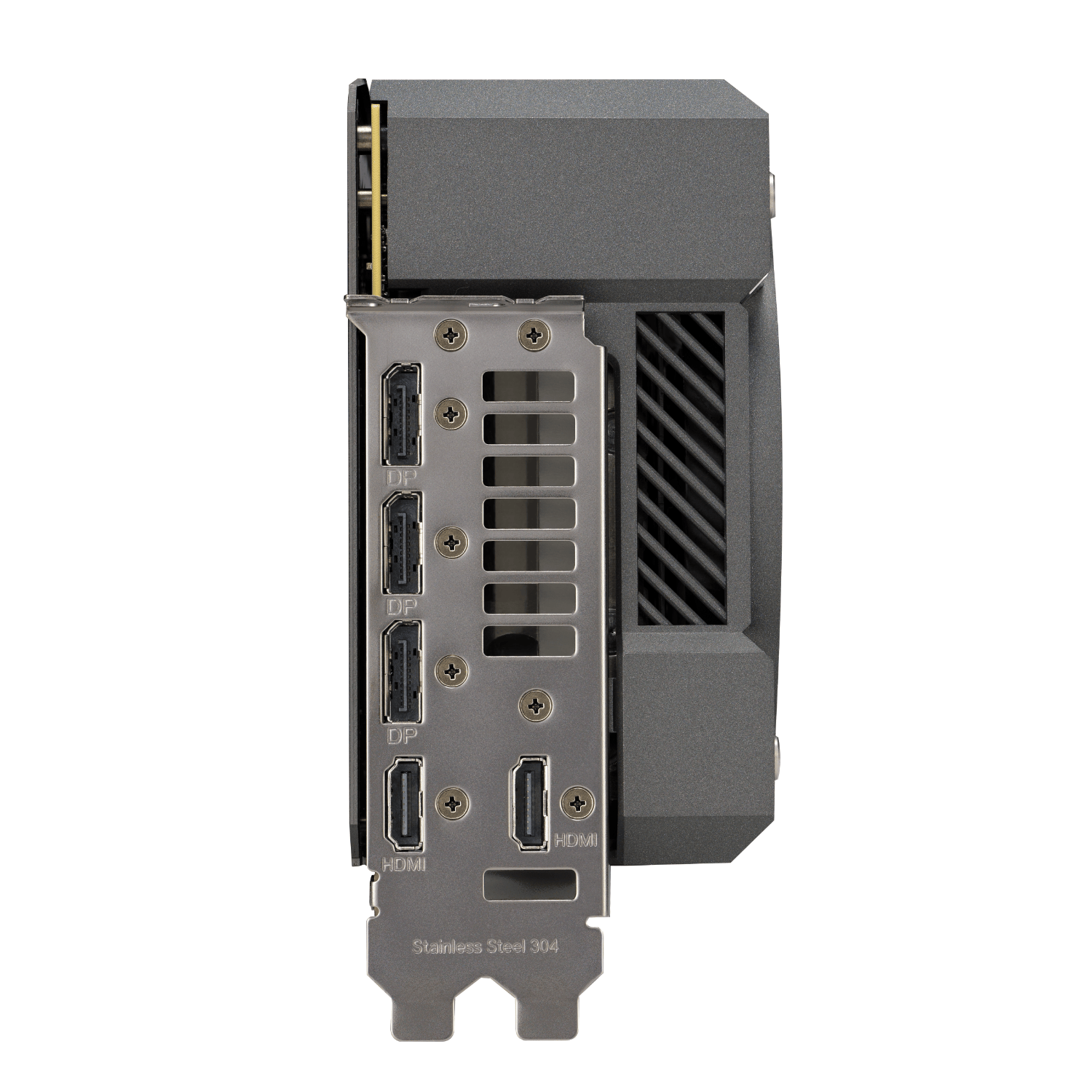

• Connect up to four displays simultaneously via 2 x HDMI 2.1b and 3 x DisplayPort 2.1b outputs
• Built to last with military-grade components, protective PCB coating, and dual-ball fan bearings rated up to 80,000 hours

The Pinnacle of GeForce RTX Performance

The ASUS TUF Gaming GeForce RTX 5090 32GB GDDR7 OC Edition is built for the most demanding gamers and creators who refuse to compromise. Powered by NVIDIA's Blackwell architecture, it delivers a class-leading 2580MHz OC boost clock, 21,760 CUDA cores, and 32GB of GDDR7 memory running at 28Gbps across a 512-bit bus — the raw horsepower to handle 4K gaming, AI-accelerated creative workflows, and beyond.

AI-Powered Gaming: DLSS 4 and Full Ray Tracing

Tired of choosing between visual fidelity and frame rate? NVIDIA DLSS 4 with Multi Frame Generation, powered by fifth-generation Tensor Cores, uses AI to multiply frame rates while preserving stunning image quality. Fourth-generation RT Cores unlock the full realism of ray tracing — cinematic lighting, reflections, and shadows rendered at unprecedented speeds. NVIDIA Reflex 2 with Frame Warp further sharpens responsiveness, giving competitive players the edge where milliseconds matter.

Cooling Mastery Built for the Long Haul

The TUF Gaming RTX 5090 deploys a comprehensive thermal arsenal: a vapour chamber paired with 12 heatpipes draws heat away from the GPU efficiently, while three Axial-tech fans — spinning on dual-ball bearings rated for up to 80,000 hours — push up to 23% more air than standard fans. The two outer fans spin counterclockwise to reduce turbulence, and all three stop entirely when GPU temperatures drop below 50°C for near-silent operation during lighter tasks. A premium phase-change GPU thermal pad melts to fill microscopic gaps between the GPU die and heatsink, optimising thermal conductivity under sustained loads.

Military-Grade Durability You Can Count On

Every component inside the TUF Gaming RTX 5090 is selected for longevity. Certified military-grade TUF chokes and MOSFETs ensure rock-solid power delivery, while TUF 5K black metallic capacitors offer a 2.5x longer lifespan than standard capacitors. A protective conformal PCB coating guards the board against moisture, dust, and debris. ASUS GPU Guard adhesive secures all four GPU corners to reduce crack risk, and Auto-Extreme automated manufacturing — single-pass soldering with no harsh cleaning chemicals — results in a more reliable, consistently built card. Connect it via the single 16-pin power connector and pair it with at minimum a 1000 W power supply to keep the system stable under full load.

Features

• NVIDIA GeForce RTX 5090 Blackwell GPU with 21,760 CUDA cores and a 2580MHz OC boost clock
• 32GB GDDR7 memory on a 512-bit bus at 28Gbps for massive bandwidth in 4K and creative workloads
• NVIDIA DLSS 4 with Multi Frame Generation and fourth-gen RT Cores for AI-accelerated frame rates and full ray tracing
• Triple Axial-tech fans with dual-ball bearings (up to 80,000-hour lifespan) delivering up to 23% more airflow than standard fans
• 12-heatpipe vapour chamber cooling with ASUS MaxContact heat spreader and phase-change GPU thermal pad
• Military-grade TUF chokes, MOSFETs, and 5K capacitors with protective conformal PCB coating for long-term reliability
• AURA Sync ARGB lighting on the shroud for customisable RGB effects
• Dual BIOS toggle between Quiet and Performance modes; GPU Tweak III software for advanced overclocking and monitoring
• 5 display outputs: 2 x HDMI 2.1b + 3 x DisplayPort 2.1b, supporting up to 4 simultaneous displays at up to 7680 x 4320 resolution

Specifications

• Graphic Engine: NVIDIA® GeForce RTX™ 5090
• AI Performance: 3352 TOPs
• Bus Standard: PCI Express 5.0
• OpenGL: OpenGL®4.6
• Video Memory: 32GB GDDR7
• Engine Clock:
  • OC mode: 2580 MHz
  • Default mode: 2550 MHz(Boost clock)
• CUDA Core: 21760
• Memory Speed: 28 Gbps
• Memory Interface: 512-bit
• Resolution: Digital Max Resolution 7680 x 4320
• Interface:
  • Yes x 2 (Native HDMI 2.1b)
  • Yes x 3 (Native DisplayPort 2.1b)
  • HDCP Support Yes (2.3)
• Maximum Display Support: 4
• NVlink/ Crossfire Support: No
• Recommended PSU: 1000W
• Power Connectors: 1 x 16-pin
• Slot: 3.6 Slot
• AURA SYNC: ARGB
• Colour: Black/Grey
• Product Dimensions: 34.8 x 14.6 x 7.2 cm

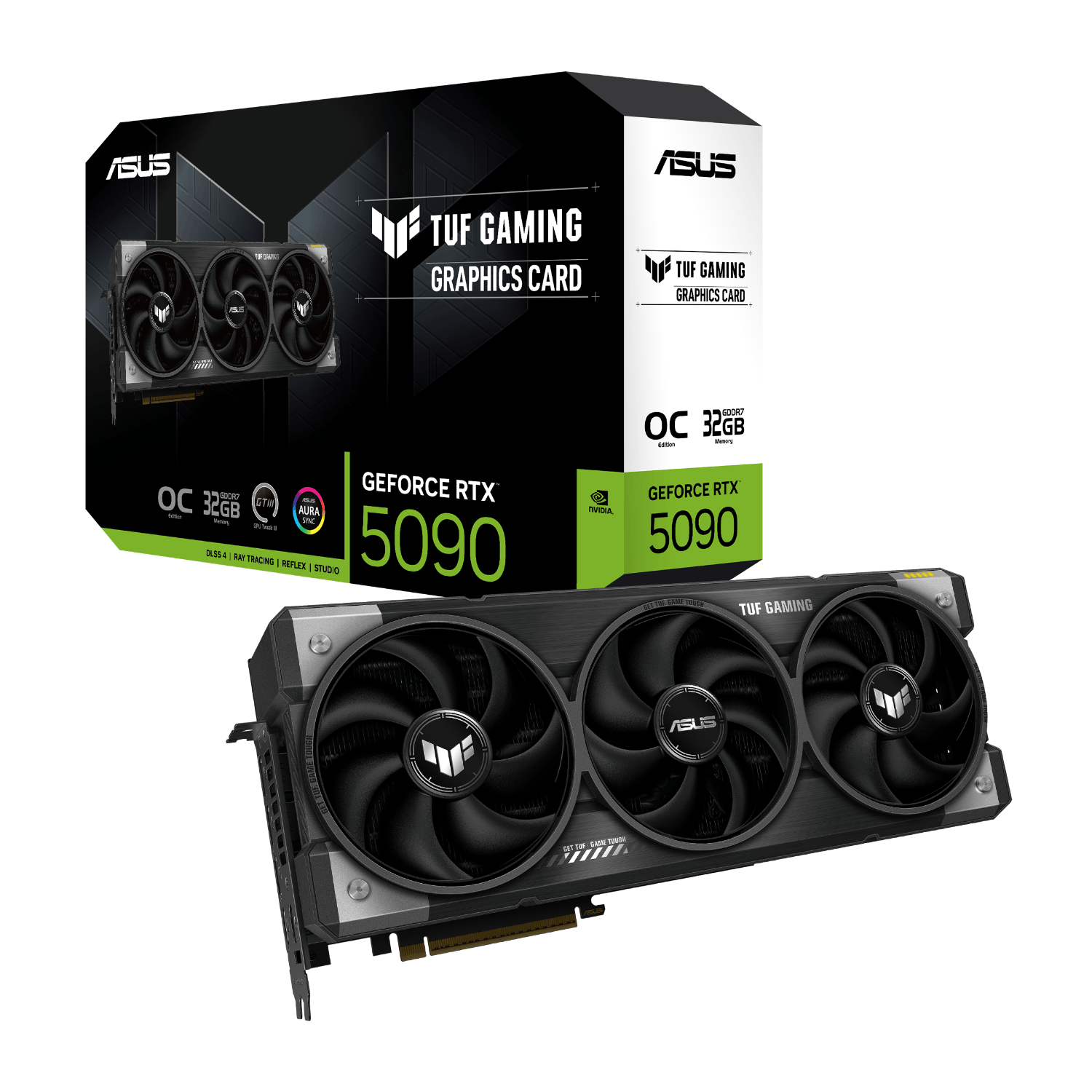

What's in the Box

• ASUS TUF Gaming GeForce RTX 5090 32GB GDDR7 OC Edition Graphics Card x1
• TUF Graphics Card Holder x1
• TUF Velcro Hook & Loop x1
• TUF Magnet x1
• Adapter Cable (1 to 4) x1
• TUF Gaming Certificate x1
• Thank You Card x1
• Speedsetup Manual x1

Why ASUS

ASUS has spent decades engineering hardware that professionals and enthusiasts trust. The TUF Gaming line channels that expertise into cards built to withstand extreme conditions — rigorous durability testing, military-grade components, and automated precision manufacturing ensure every unit performs exactly as promised, right out of the box.
