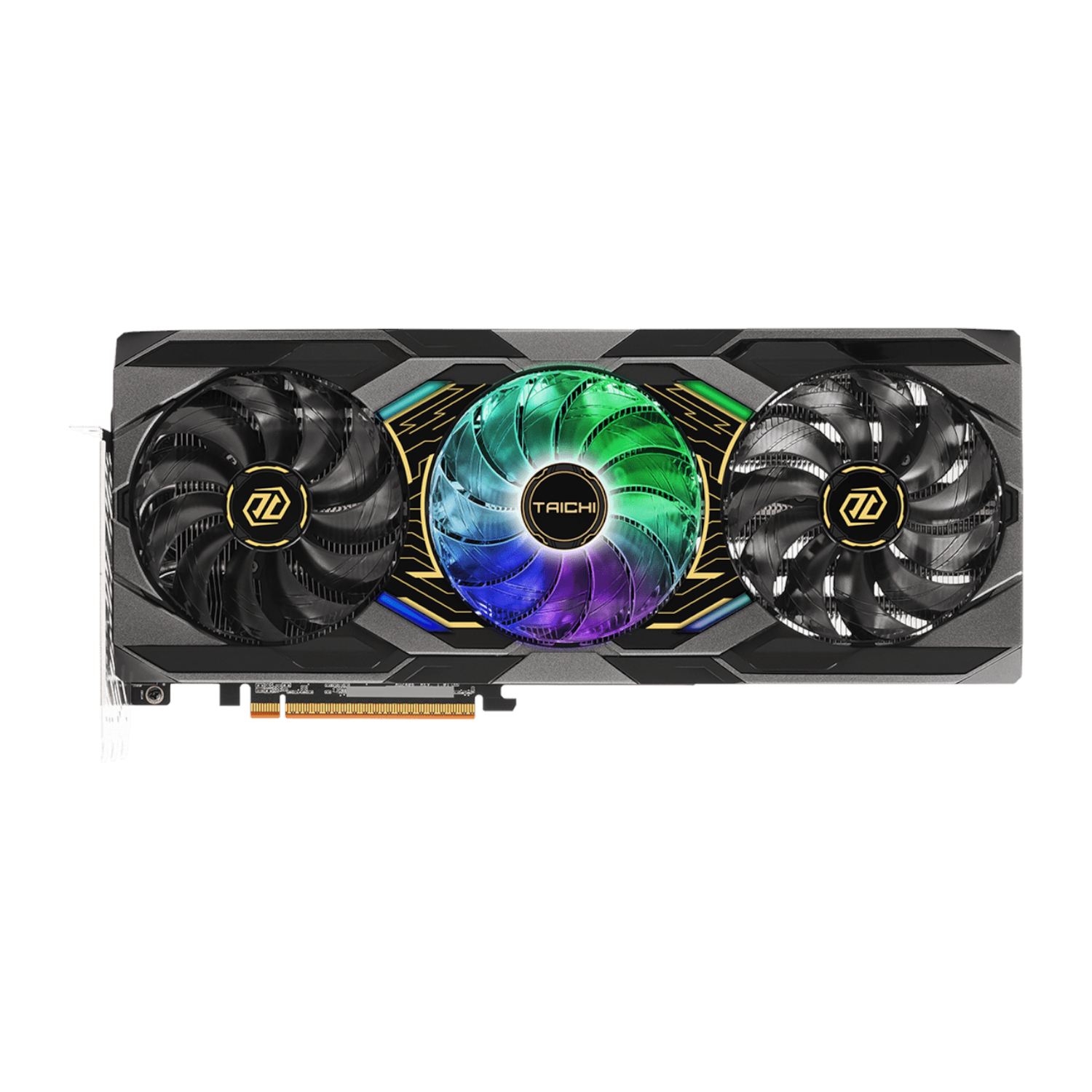

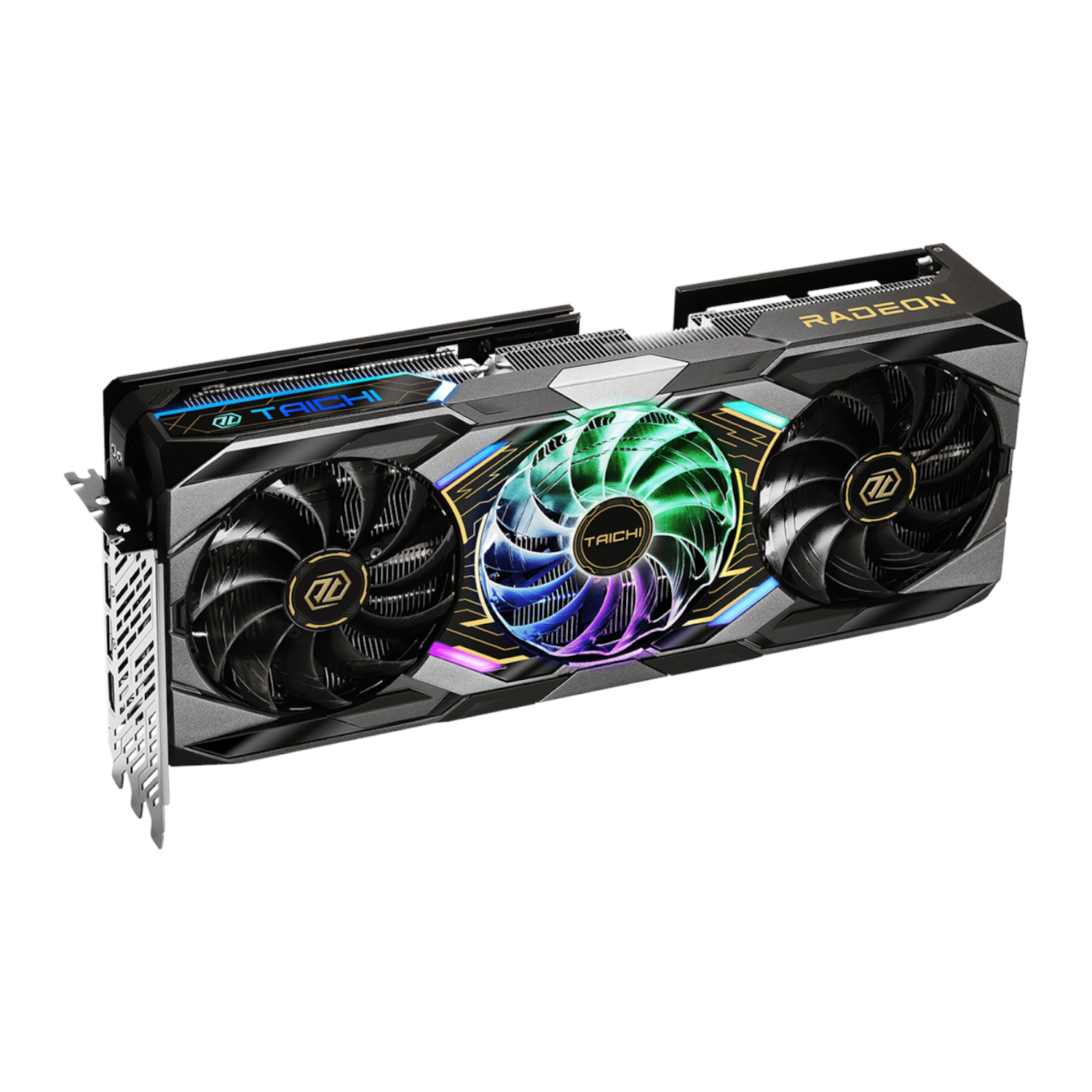

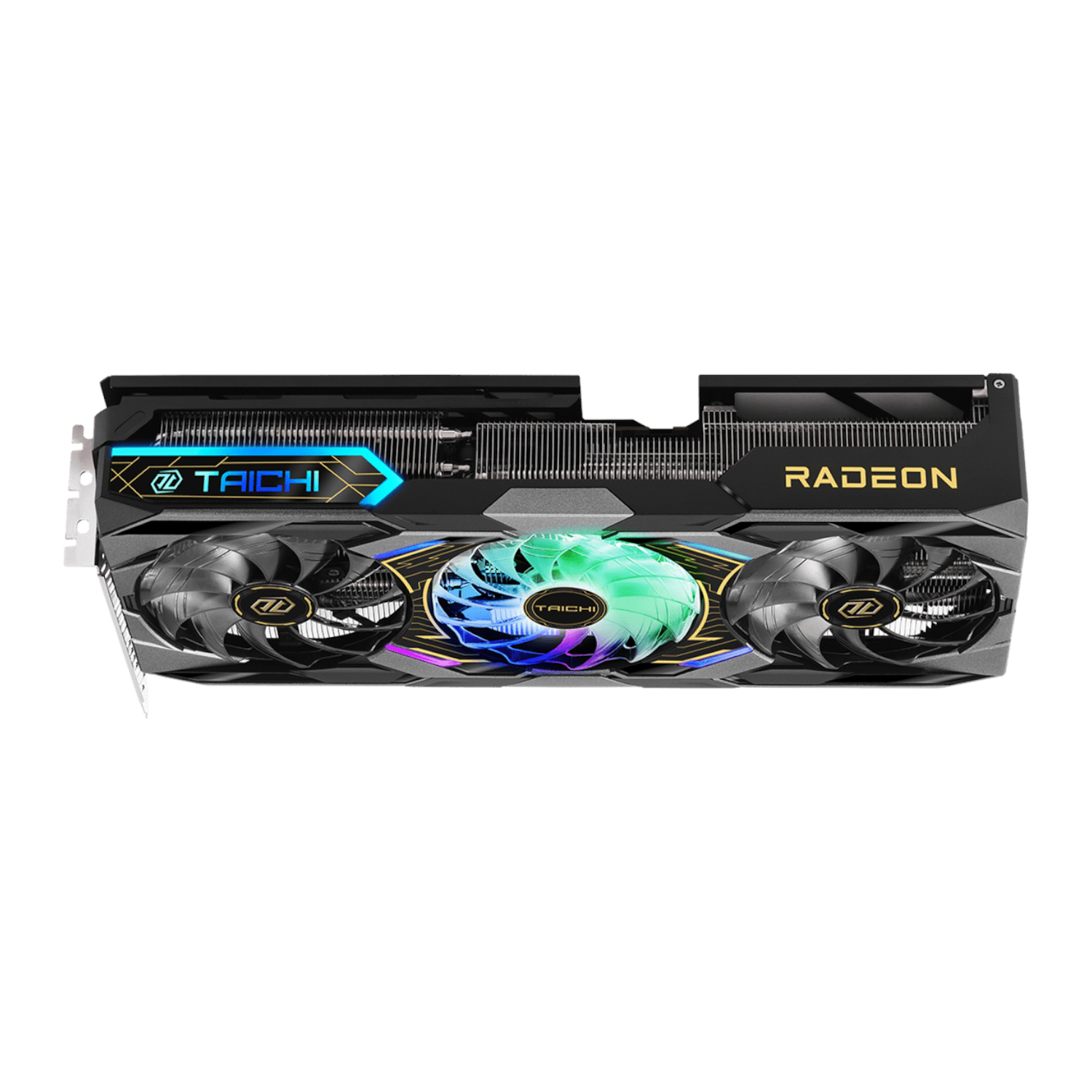

ASRock Radeon RX9070 XT Taichi 16G OC Graphics Card

The ASRock AMD Radeon RX 9070 XT Taichi 16GB OC is a high-performance graphics card designed for enthusiasts who demand both cutting-edge power and premium aesthetics. Built on AMD’s RDNA™ 4 architecture, it delivers next-level gaming performance with 64 compute units, hardware-accelerated ray tracing, and AI-driven optimizations. The boost clock reaches up to 3100MHz, ensuring ultra-smooth frame rates and stunning visuals for 4K gaming and content creation. Equipped with 16GB of GDDR6 memory on a 256-bit bus, this GPU is built to handle the most demanding workloads and high-resolution gaming experiences.

The Taichi 3X Cooling System ensures superior thermal efficiency, utilizing three advanced fans to maximize airflow. The centre fan spins in reverse to reduce turbulence and enhance heat dissipation, while ASRock’s Striped Ring Fan design increases lateral air intake for improved cooling performance. V-shaped cutting fins and air vents guide airflow efficiently, reducing heat buildup and keeping temperatures low even under heavy loads. Additionally, intelligent fan control ensures silent operation when temperatures are low, automatically adjusting for optimal cooling when needed.

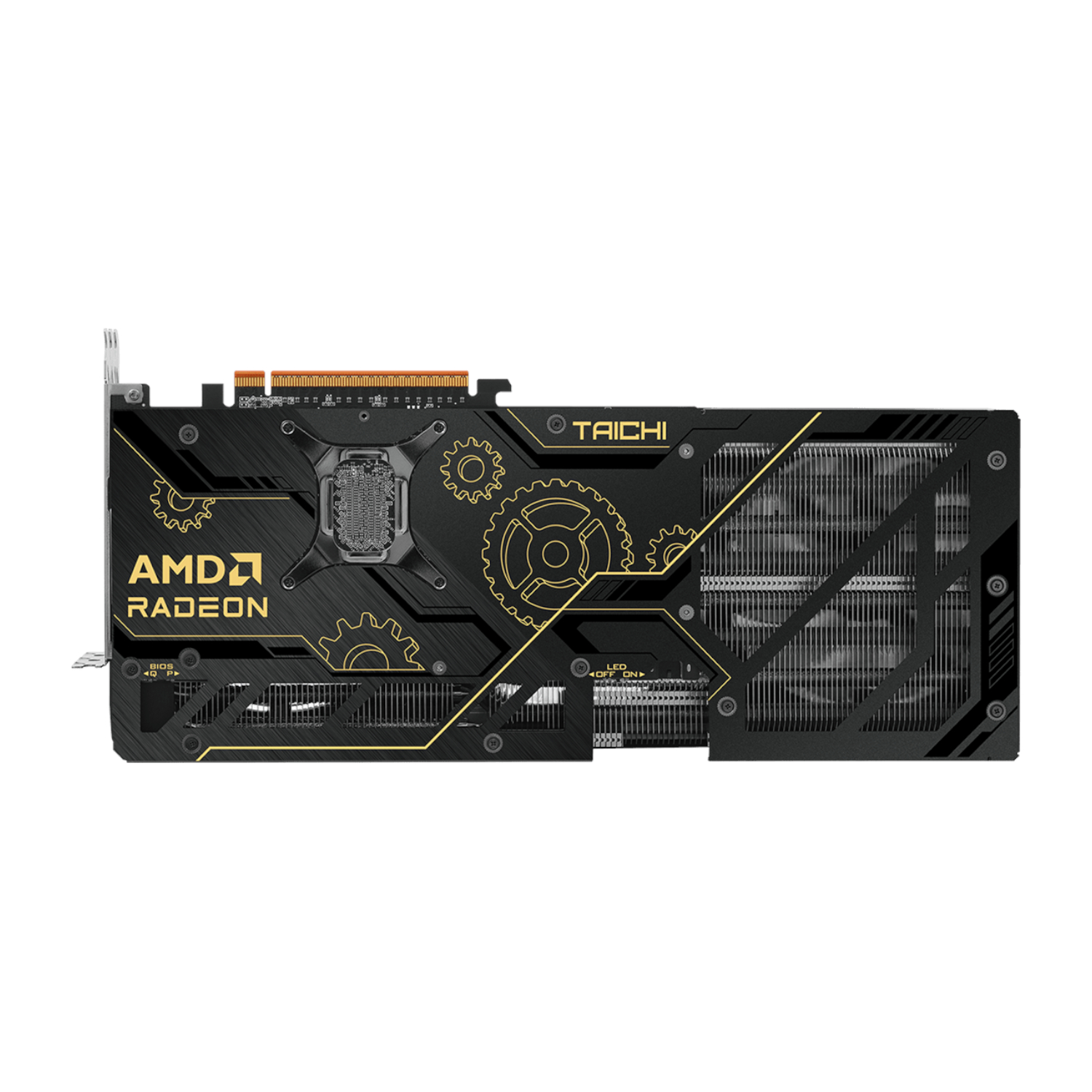

Heat management is further enhanced with a premium copper base heatsink, which maximizes direct contact with the GPU for efficient thermal transfer. The consolidated heat pipes and high-quality thermal pads effectively distribute heat, preventing hotspots and maintaining stable performance. ASRock’s precision screw torque assembly optimizes cooler mounting pressure, balancing thermal efficiency and component safety to extend the lifespan of the GPU. A reinforced metal backplate not only strengthens the structure to prevent PCB bending but also enhances cooling with strategically placed thermal pads and vents.

Aesthetically, the Taichi RX 9070 XT stands out with its integrated ARGB lighting, offering customizable and synchronized illumination through Polychrome SYNC. Users can further expand their lighting setup with an ARGB pin-header, connecting additional RGB strips and devices for a fully immersive build. With PCIe 5.0 support, high-speed DisplayPort 2.1a and HDMI 2.1b connectivity, and an 850W recommended PSU, this powerhouse GPU is ready to push the limits of gaming, streaming, and content creation with exceptional performance and style.

FEATURES:

• Boost Clock: Up to 3100MHz / 20Gbps
• Game Clock: 2570MHz / 20Gbps
• 16GB GDDR6 on 256-bit Memory Bus
• 64 AMD RDNA™ Compute Units (With RT+AI Accelerators)
• PCI® Express 5.0 Support
• 12V-2x6-pin Power Connectors
• 3x DisplayPort™ 2.1a, 1x HDMI™ 2.1b
• Polychrome SYNC
• Taichi 3X Cooling System
• Stylish Metal Backplate

SPECIFICATIONS:

• Graphics Engine: AMD Radeon™ RX 9070 XT
• Bus Standard: PCI® Express5.0 x16 up to 32GT/s
• DirectX: 12 Ultimate
• OpenGL: 4.6
• Memory: 16GB GDDR6
• Engine Clock:
  • Boost Clock: Up to 3100 MHz
  • Game Clock: 2570 MHz
• Stream Processors: 4096
• Memory Clock: 20Gbps
• Memory Interface: 256-bit
• Resolution: Digital Max Resolution: 7680 x 4320
• Interface:
  • 3x DisplayPort 2.1a
  • 1x HDMI 2.1b
• HDCP: Yes
• Multi-view: 4
• Recommended PSU: 850W
• Power Connector: 1 x 12V-2x6-pin
• Colour: Black
• Product Dimensions: 33 x 14 x 6.1 cm
• Product Weight: 1554g

WHAT'S IN THE BOX:

• ASRock AMD Radeon RX 9070 XT Taichi 16GB OC Graphics Card x1
