MSI PRO A620AM-B EVO AM5 M-ATX Motherboard

Build a stable, high-performance AMD AM5 system for gaming and productivity with MSI's PRO A620AM-B EVO motherboard; it's the foundation for your next breakthrough.

Quick Specs

• Experience enhanced processing power with Core Boost and Memory Boost technologies.
• Achieve lightning-fast load times with PCIe 4.0 and Lightning Gen 4 x4 M.2 support.
• Immerse yourself in crystal-clear audio with studio-grade AUDIO BOOST.
• Protect your valuable graphics card with reinforced Steel Armor.
• Benefit from reliable connectivity with Realtek® 2.5G LAN.

The bedrock of your next powerhouse build

For the discerning South African builder, the MSI PRO A620AM-B EVO motherboard stands as the unwavering foundation for a new era of computing. This M-ATX marvel is engineered for those who understand that true performance begins with stability and a commitment to quality. It is for the gamer seeking to push frame rates higher, the creator demanding faster render times, and the professional who requires reliability day in and day out. This A620 motherboard is not merely a component; it is the strategic heart of your system, designed to harness the full potential of AMD's AM5 platform with precision and foresight. When you demand a build that is both robust and responsive, this MSI motherboard provides the clarity and strength you need.

Engineered for peak performance and unwavering stability

At the core of the PRO A620AM-B EVO lies MSI's dedication to superior engineering. Core Boost technology, coupled with a premium layout and advanced digital power design, ensures that your chosen processor receives a stable, clean power delivery, allowing for more cores to perform optimally and pushing performance boundaries. This is complemented by Memory Boost, an advanced system that delivers pure data signals, safeguarding the integrity of your RAM for maximum performance, unwavering stability, and broad compatibility. These integrated solutions mean your system will not just run; it will run with exceptional grace and efficiency.

A gateway to rapid experiences

In the fast-paced world of modern computing, speed is not a luxury; it is a necessity. The MSI PRO A620AM-B EVO equips your system with the tools to excel. Its PCIe 4.0 slot provides a high-bandwidth pathway for your graphics card, ensuring that even the most demanding GPUs can operate at their full potential without bottlenecking. Furthermore, the inclusion of a Lightning Gen 4 x4 M.2 slot accelerates your storage, drastically reducing load times for games, applications, and large files. This commitment to speed translates directly into a more fluid, responsive, and enjoyable computing experience, whether you are deep in a gaming session or managing complex projects.

Immersive audio and robust protection

Beyond raw power and speed, the PRO A620AM-B EVO enhances your sensory experience and safeguards your investment. AUDIO BOOST delivers studio-grade sound quality, transforming your audio output into an immersive soundscape that elevates gaming, movies, and music. Hear every detail, from the subtlest environmental cues to the most intense explosions, with unparalleled clarity. Complementing this is Steel Armor, a crucial feature that fortifies the PCIe slot protecting your graphics card against bending and electromagnetic interference (EMI). This not only ensures better performance and stability but also provides long-term structural integrity, giving you peace of mind for your high-value components.

The foundation of a superior AM5 system

Choosing the right motherboard is paramount for building a high-performance computing system. The MSI PRO A620AM-B EVO, as a leading am5 motherboard, offers the ideal blend of advanced features and robust design necessary for modern gaming and demanding productivity tasks. It provides a solid platform that integrates seamlessly with AMD's latest processors, ensuring you get the most out of your investment. This is more than just a motherboard; it's a critical piece of technology designed for longevity and performance in South Africa.

FEATURES:

• Supports AMD Ryzen™ 9000 / 8000 / 7000 Series Desktop Processors
• Supports DDR5 Memory, Dual Channel DDR5 6800+ MT/s (OC)
• Core Boost : With premium layout and digital power design to support more cores and provide better performance
• Memory Boost: Advanced technology to deliver pure data signals for the best performance, stability and compatibility
• Lightning Fast Game experience: PCIe 4.0 slot, Lightning Gen 4 x4 M.2
• AUDIO BOOST: Reward your ears with studio grade sound quality for the most immersive gaming experience
• Steel Armor: Protecting VGA cards against bending and EMI for better performance, stability and strength

SPECIFICATIONS:

• Chipset: AMD A620A
• CPU:
  • Supports AMD Ryzen™ 9000/ 8000/ 7000 Series Desktop Processors
  • Socket AM5
• Memory
  • 2x DDR5, Maximum Memory Capacity 128GB
  • Memory Support DDR5 6800 - 5600 (OC) MT/s / 5600 - 4800 (JEDEC) MT/s
  • Max. overclocking frequency:
  • 1DPC 1R Max speed up to 6800+ MT/s
  • 1DPC 2R Max speed up to 6000+ MT/s
  • Supports AMD POR Speed and JEDEC Speed
  • Supports Memory Overclocking and AMD EXPO™
  • Supports Dual-Channel mode
  • Supports non-ECC, un-buffered memory
  • Supports CUDIMM, Clock Driver bypass mode only*
• Onboard Graphics
  • 1x HDMI™
  • Support HDMITM 2.1, maximum resolution of 4K 60Hz*
  • 1x VGA
  • Support VGA, maximum resolution of 2048x1536 50Hz, 2048x1280 60Hz, 1920x1200 60Hz
  • *Available only on processors featuring integrated graphics.
• Slot
  • 1x PCI-E x16 slot
  • Supports x16 (For Ryzen™ 9000 and 7000 Series processors)
  • Supports x8 (For Ryzen™ 8700/ 8600/ 8400 Series processors)
  • Supports x4 (For Ryzen™ 8500/ 8300 Series processors)
  • 1x PCI-E x1 slot
  • PCI_E1 Gen PCIe 4.0 supports up to x16 (From CPU)
  • PCI_E2 Gen PCIe 3.0 supports up to x1 (From Chipset)
• Audio
  • Realtek® ALC897 Codec
  • 7.1-Channel High Definition Audio
• Storage
  • 1x M.2
  • M.2_1 Source (From CPU) supports up to PCIe 4.0 x4 , supports 2280/2260 devices
  • 2x SATA 6G
  • M2_1 slot
  • Supports up to PCIe 4.0 x4 (For Ryzen™ 9000/ 8700/ 8600/ 8400/ 7000 Series processors)
  • Supports up to PCIe 4.0 x2 (For Ryzen™ 8500/ 8300 Series processors)
• RAID: Supports RAID 0 and RAID 1 for SATA storage devices

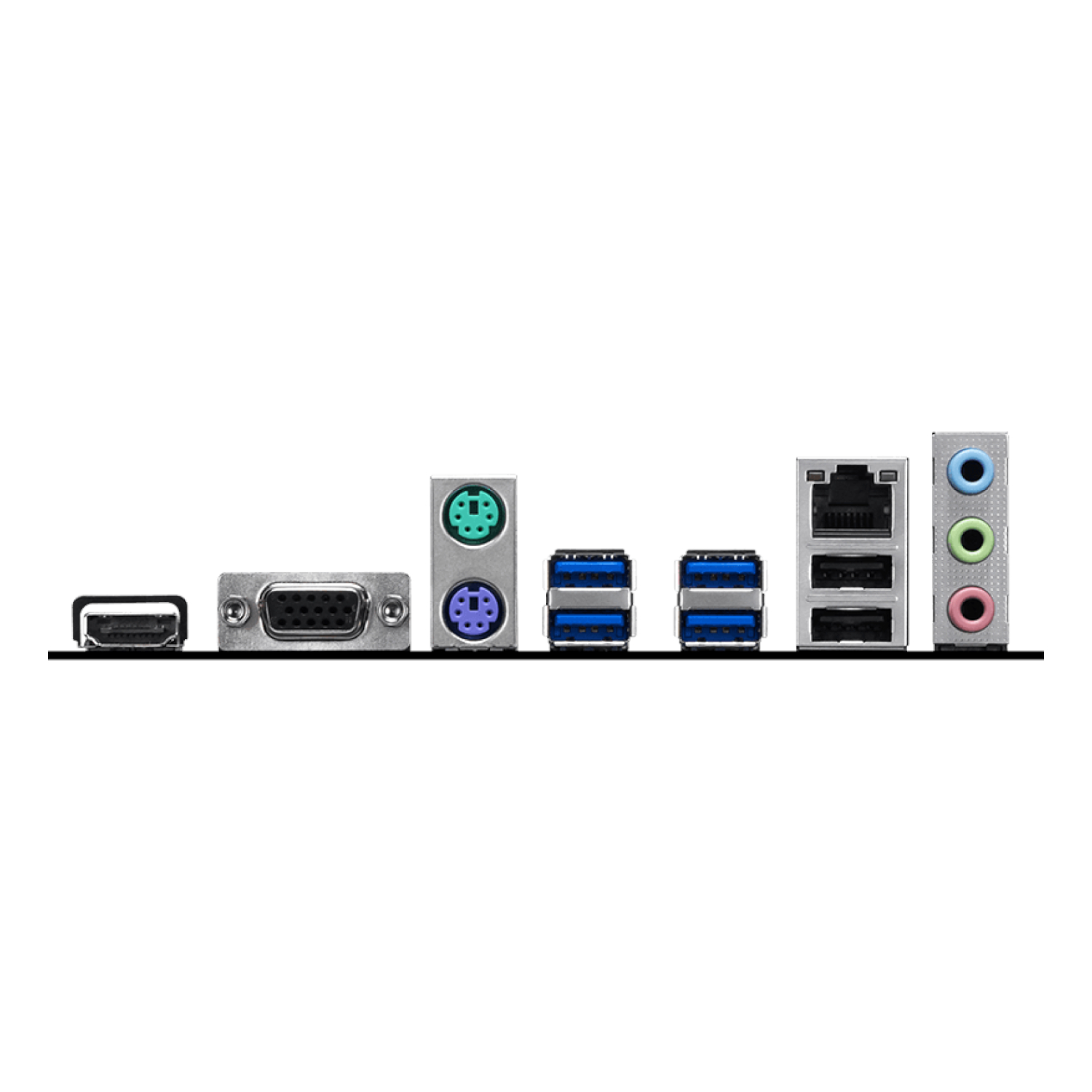

• USB
  • 2x USB 2.0 (Rear)
  • 4x USB 2.0 (Front)
  • 4x USB 5Gbps Type A (Rear)
  • 2x USB 5Gbps Type A (Front)
  • 1x USB 5Gbps Type C (Front)
• LAN: Realtek® RTL8125 2.5G LAN
• Internal IO:
  • 1x Power Connector(ATX_PWR)
  • 1x Power Connector(CPU_PWR)
  • 1x CPU Fan
  • 2x System Fan
  • 2x Front Panel (JFP)
  • 1x Chassis Intrusion (JCI)
  • 1x Front Audio (JAUD)
  • 1x Com Port (JCOM)
  • 1x Addressable V2 RGB LED connector (JARGB_V2)
  • 1x RGB LED connector(JRGB)
  • 1x TPM pin header(Support TPM 2.0)
  • 4x USB 2.0 ports
  • 2x USB 5Gbps Type A ports
  • 1x USB 5Gbps Type C ports
• LED FEATURE
  • 4x EZ Debug LED
  • 1x EZ Memory Detection LED
• Operating System: Support for Windows® 11 64-bit, Windows® 10 64-bit
• Form Factor:
  • mATX
  • 218mm x 243.84mm

WHAT'S IN THE BOX:

• MSI PRO A620AM-B EVO AM5 M-ATX Motherboard - Black x1
• EZ M.2 Clip II Remover x1
• EZ M.2 Clip II x1
• SATA Cable x1
• I/O Shield x1
• Quick Installation Guide x1

Why MSI?

MSI has established a formidable reputation within the South African tech landscape for delivering reliable, performance-driven hardware. Their commitment to innovation, coupled with a deep understanding of gamer and professional needs, makes MSI the trusted choice for those seeking to build a competitive edge. Choose MSI for a motherboard that balances cutting-edge technology with enduring quality. This focus on quality ensures that each MSI motherboard, including this exceptional am5 motherboard, serves as a testament to their engineering prowess.
