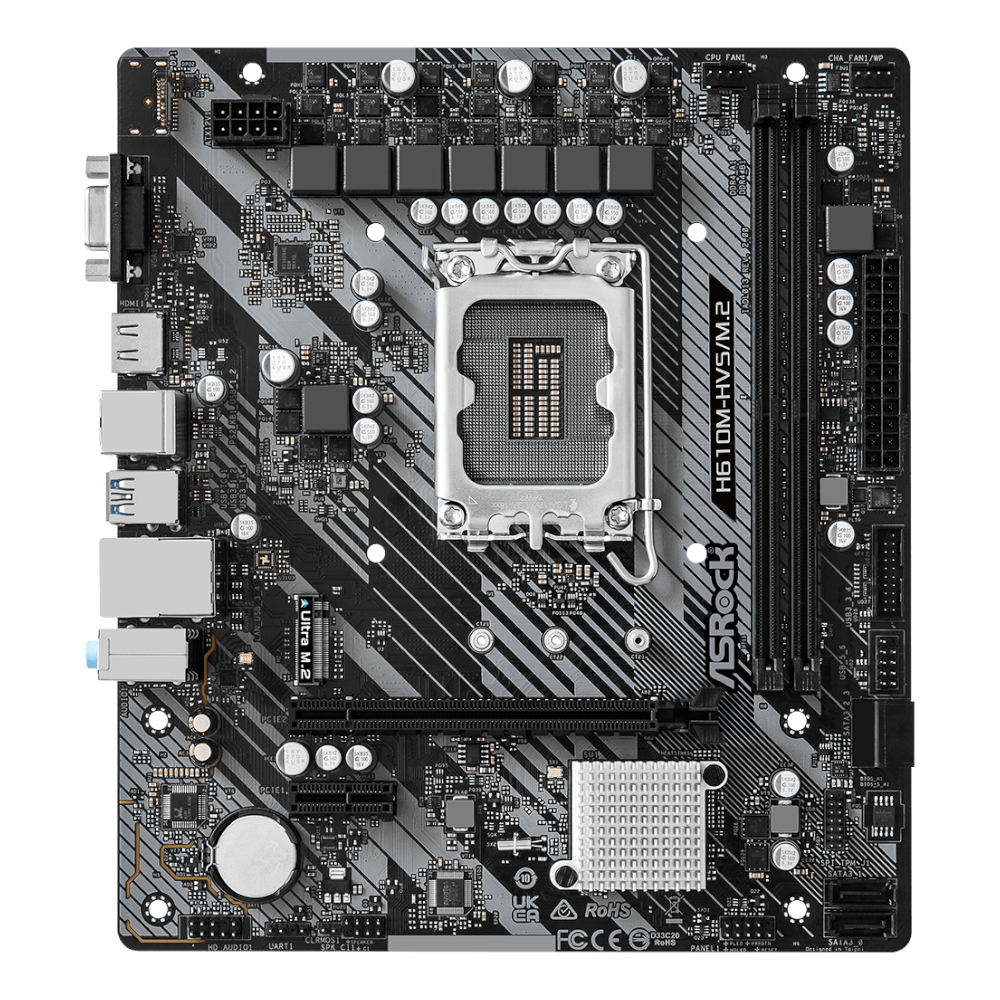

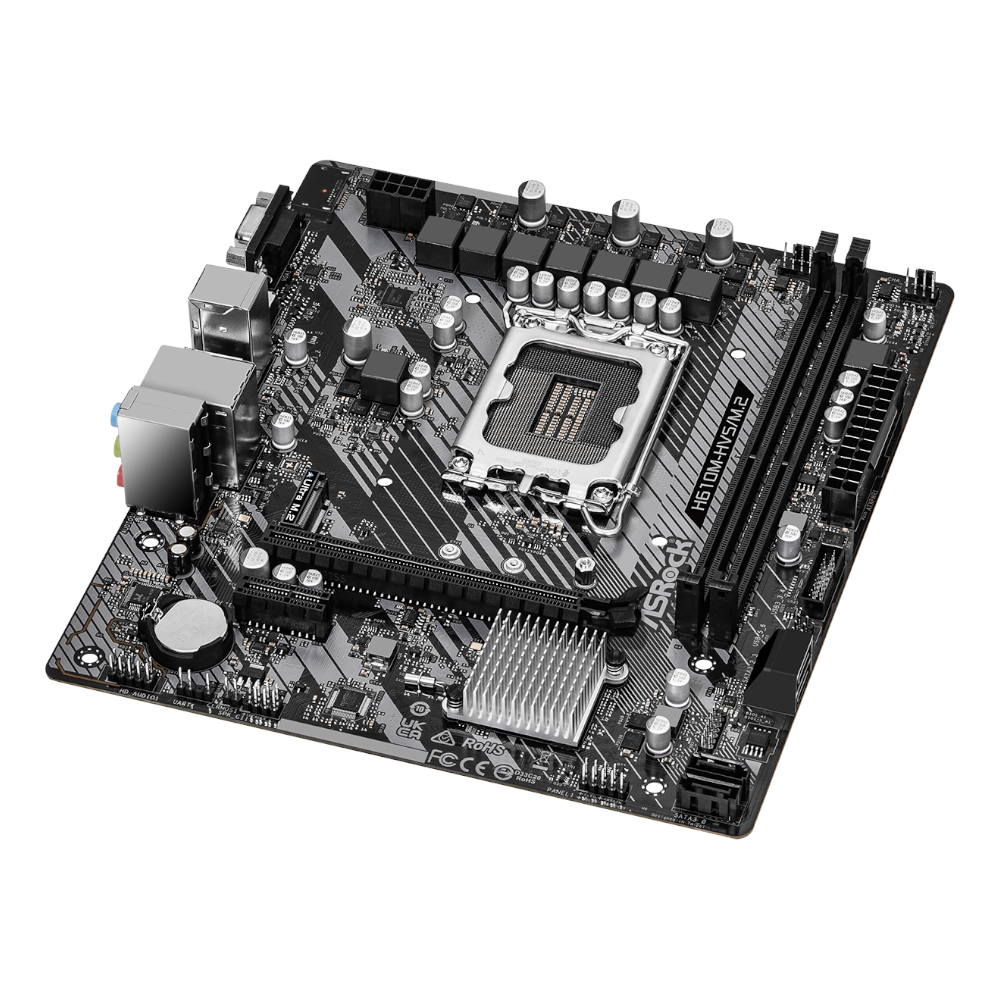

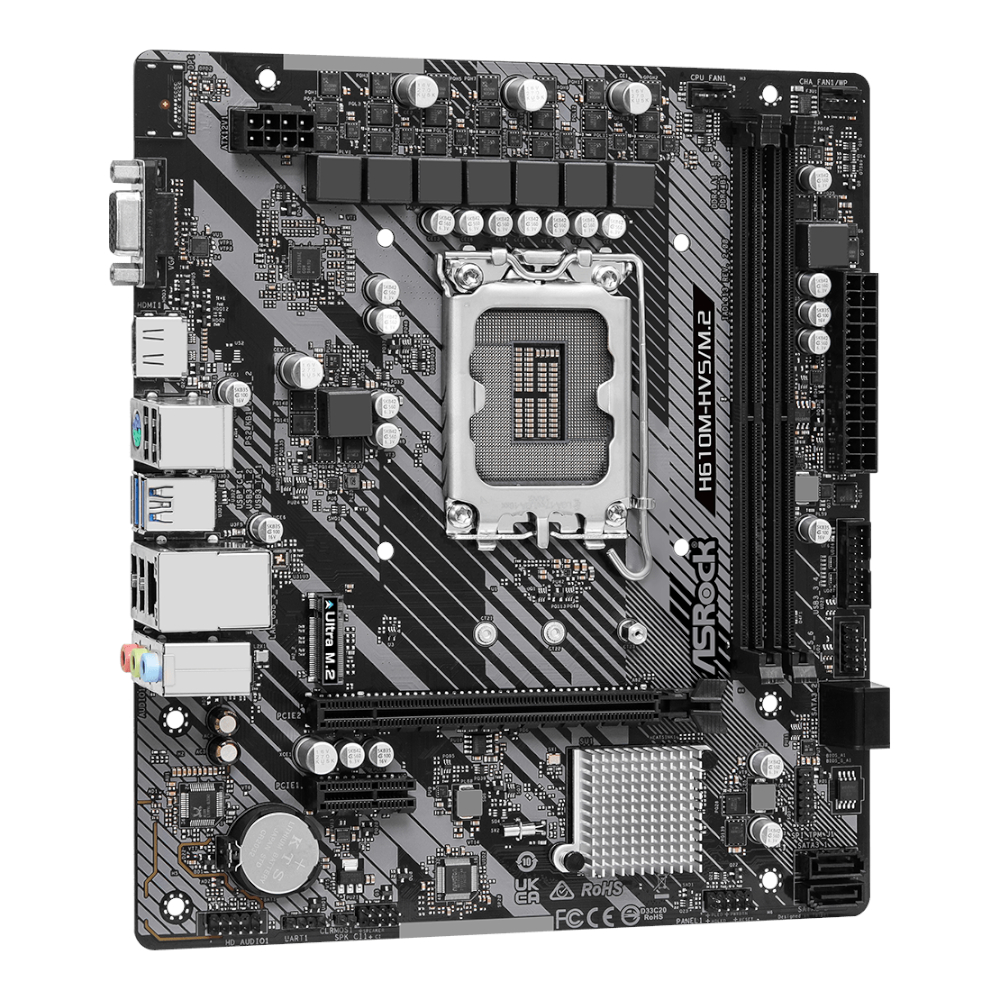

ASRock H610M-HVS/M.2 R2.0 Intel LGA 1700 m-ATX Motherboard

The ASRock H610M-HVS/M.2 R2.0 Intel LGA 1700 m-ATX Motherboard is a reliable and feature-packed solution for building a powerful PC. Designed to support 14th, 13th, and 12th Gen Intel® Core™ processors on the LGA 1700 socket, this motherboard ensures excellent compatibility and performance for a variety of computing tasks. Its 6+1+1 Phase Power Design ensures stable and efficient power delivery, making it ideal for everyday use and demanding workloads.

With 2 DDR4 DIMM slots, the H610M-HVS/M.2 R2.0 supports up to 64GB of dual-channel memory, with speeds up to 3200MHz, ensuring fast and efficient multitasking. The inclusion of 1 PCIe 4.0 x16 slot and 1 PCIe 3.0 x1 slot provides flexibility for adding high-speed GPUs and other expansion cards. Storage needs are well-handled with 4 SATA3 ports and an Ultra M.2 slot (PCIe Gen3 x4), offering robust options for both traditional and high-speed storage devices.

For connectivity and multimedia, this m-ATX motherboard features HDMI and D-Sub outputs, allowing support for multiple displays. Audio performance is enhanced by the Realtek ALC897 7.1 CH HD Audio Codec, delivering rich and immersive sound. Additionally, the board includes 4 USB 3.2 Gen1 ports (2 rear, 2 front) and 6 USB 2.0 ports (4 rear, 2 front) for convenient connectivity, along with Realtek Gigabit LAN for fast and stable networking. Compact yet versatile, the ASRock H610M-HVS/M.2 R2.0 is a great choice for a wide range of PC builds.

FEATURES:

• Supports 14th, 13th & 12th Gen Intel® Core™ Processors (LGA1700)
• 6+1+1 Phase Power Design
• 2 x DDR4 DIMMs
• Supports Dual Channel, up to 3200
• 1 PCIe 4.0 x16, 1 PCIe 3.0 x1

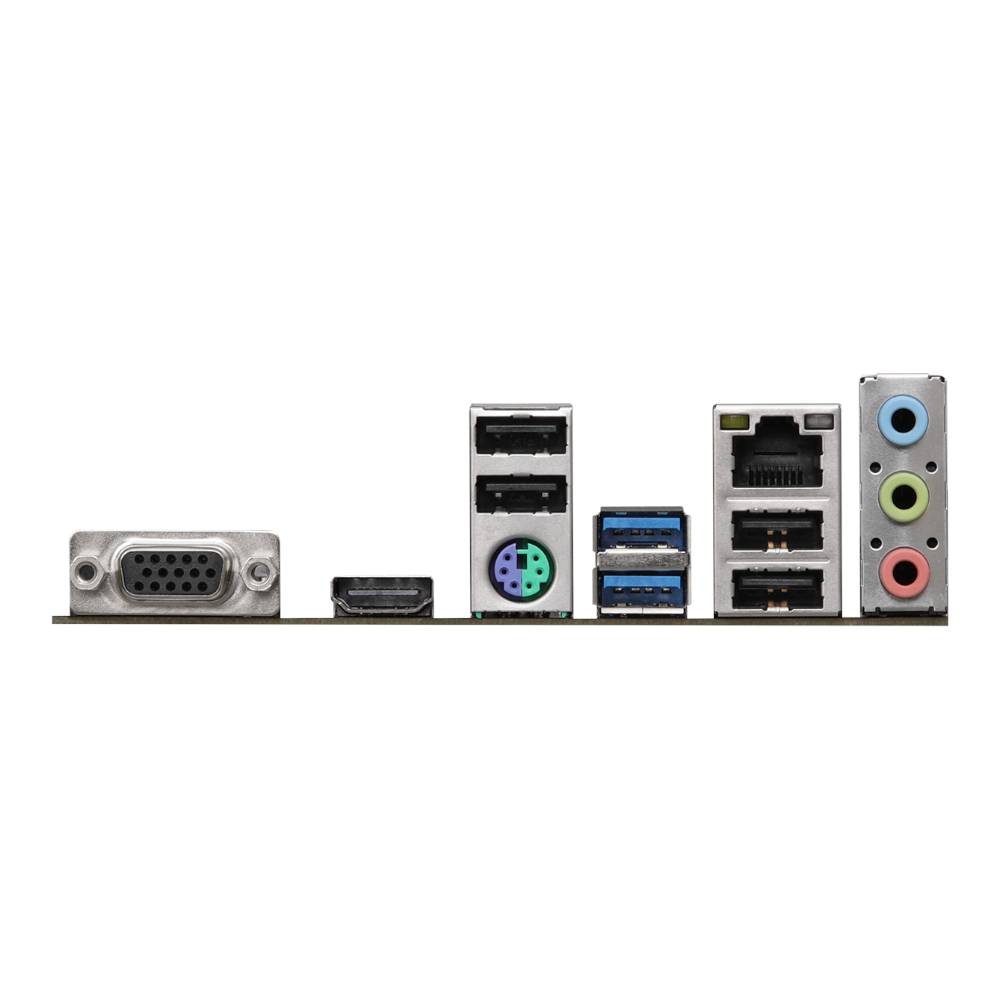

• Graphics Output Options: HDMI, D-Sub
• Realtek ALC897 7.1 CH HD Audio Codec
• 4 x SATA3
• 1 x Ultra M.2 (PCIe Gen3 x4)
• 4 x USB 3.2 Gen1 (2 Rear, 2 Front)
• 6 x USB 2.0 (4 Rear, 2 Front)
• Realtek Gigabit LAN

SPECIFICATIONS:

• Socket: Intel LGA 1700
• CPU (Max Support): Supports 14th, 13th & 12th Gen Intel® Core™ Processors (LGA1700)
• Chipset: Intel® H610
• DDR4 Memory: Supports DDR4 non-ECC, un-buffered memory up to 3200 | Supports ECC UDIMM memory modules (operate in non-ECC mode) | Supports Intel® Extreme Memory Profile (XMP) 2.0
• Memory Channel: Dual
• DIMM Slots: 2
• Max Memory (GB): 64
• PCI-E x16: 1
• PCI-E GEN: Gen3
• PCI-E x1: 1
• SATAIII: 4
• M.2 Slot: 1
• TPM (Header): 1
• LAN: Realtek RTL8111H Gigabit LAN
• USB 3.2 ports (Front): 2(Gen 1, Type A)
• USB 3.2 ports (Rear): 2(Gen 1, Type A)
• USB 2.0 ports (Front): 2(Type A)
• USB 2.0 ports (Rear): 4(Type A)
• Serial Ports(Front): 1
• Audio ports (Rear): Realtek ALC897 Audio Codec (7.1 CH HD Audio)
• D-Sub Port: 1
• HDMI: 1
• Form Factor: M-ATX
• Operating System: Support for Windows® 10 64-bit / 11 64-bit

WHAT’S IN THE BOX:

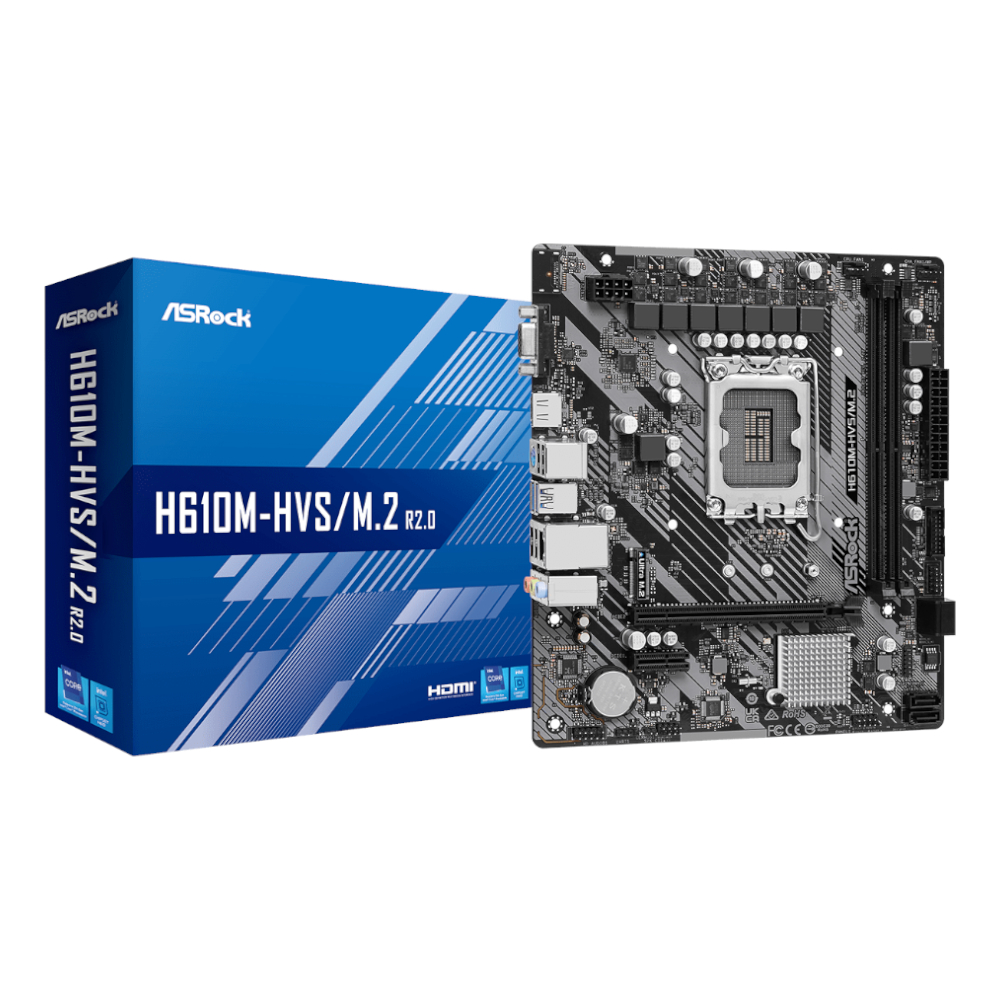

• ASRock H610M-HVS/M.2 R2.0 Intel LGA 1700 m-ATX Motherboard – Black x1
