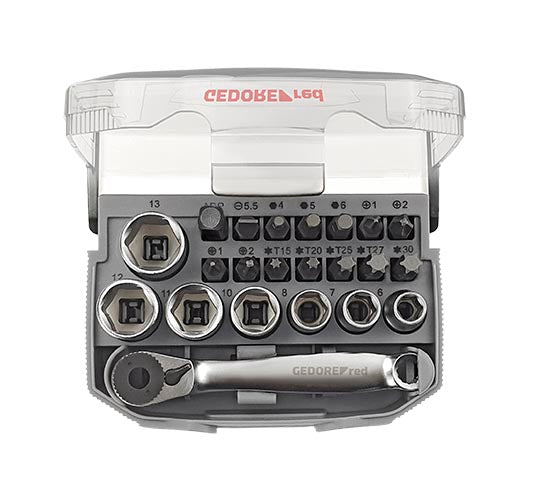

SOCKET GED RED SET 1/4" 6-13MM+BITS23PCE

Coupler based on DIN 3120 - A 6.3, ISO 1174, with

ball lock

› Square drive as per DIN 3120 - C 6.3, ISO 1174, with

ball retention groove

› Socket 1/4”, hex: metric, short, as per DIN 3124,

ISO 2725

› Bit holder with magnet 1/4": machine-operated,

as per DIN 7427

› Adapter 1/4”: for driving sockets and sockets

Code No. Contents L W D pieces 0

3300026 R49005023 Bit ratchet 1/4" reversible, with drive adapter

Socket hexagon 6 7 8 10 11 12 13mm

1/4” bits in-hex 4 5 6 mm

1/4" bits slotted 5.5 mm

1/4" bits cross-head PH 1 2

1/4" bits cross-head PZ 1 2

1/4" bits TX T15 T20 T25 T27 T30

Adapter 1/4" square x 1/4" hexagon

Bit holder 1/4" hex x 1/4" hex with magnet | 67 mm

105 70 50 23 0.330

R49003046

SOCKET SET 1/4"

46 pieces

› Coupler based on DIN 3120 - A 6.3, ISO 1174, with

ball lock

› Square drive as per DIN 3120 - C 6.3, ISO 1174, with

ball retention groove

› 2C reversible ratchet 1/4": lever for reversing

clockwise/anticlockwise direction, push-button

release, fine-toothed, oval head, dual-material handle

for ease in gripping, for sockets

› Square plug-in handle 1/4": 1-component handle

with female square

› Socket 1/4”, hex: metric, short, as per DIN 3124,

ISO 2725

› Screwdriver bit socket 1/4", for hex screws: with

pressed-in, phosphated pin

› Screwdriver bit socket 1/4", slotted: with pressed in, phosphated pin

› Screwdriver bit socket 1/4” PH: with pressed-in,

phosphated pin

Code No. Contents L W D pieces 0

3300052 R49003046 1/4” 2C lever reversible ratchet, fine-toothed, 72 teeth | 150 mm

1/4" square plug-in handle 165 mm

1/4" socket hexagon 4 4.5 5 5.5 6 7 8 9 10 11 12 13 14 | 25 mm

1/4" screwdriver bit socket in-hex 3 4 5 6 7 8 | 37 mm

1/4” screwdriver bit socket slotted 4 5.5 6.5 | 37 mm

1/4" screwdriver bit socket cross-head PH 1 2 3 | 37 mm

1/4" screwdriver bit socket cross-head PZ 1 2 | 37 mm

1/4" screwdriver bit socket TX T10 T15 T20 T25 T27 T30 T40 | 37 mm

1/4" socket extension 50 100 mm

1/4" flexible socket extension 150 mm

1/4" sliding T-bar with slider | 115 mm

1/4" universal joint | 32 mm

Bit adapter 1/4" sq. x 1/4" hex | 25 mm

Hexagon socket key set 1.27 1.5 2 2.5 mm

300 180 52 46 1.570

› Screwdriver bit socket 1/4” PZ: with pressed-in,

phosphated pin

› Screwdriver bit socket 1/4” TX: with pressed-in,

phosphated pin

› Socket extension 1/4"

› Flexible socket extension 1/4"

› Sliding T-bar with slider 1/4”: as per DIN 3122, ISO

3315

› Universal joint 1/4”: screwed-on joint , acc. to DIN

3123 - C 6.3

› Bit adaptor 1/4": with in-hex and female square, for all

bits and tools with 1/4" external hex

› Hexagon socket key set: as per DIN ISO 2936

› Chrome-vanadium steel, matt satin chrome-plated

› For hand-operated screw work

› Plastic case in GEDORE red Design

› Clamp-secured tools

› Metal hinges/fastener

› Bit ratchet: lever for reversing clockwise/anticlockwise direction,

fine-toothed,

oval head, hexagon for direct fitting of bits based on DIN 3126 - D 6,3,

with holding spring, sturdy all-steel design

› Bit: in-hex, slotted, PH, PZ, TX

› For hand-operated screw work

› Rugged plastic box with belt clip

› Transparent lid with clamp fastener

› Chrome-vanadium steel, matt satin chrome-plate
